  • OSSTEM Osstem SMARTbuilder – vorgeformte Titanmembran für GBR am Implantat

Osstem SMARTbuilder – vorgeformte Titanmembran für GBR am Implantat

€89,00 *

* exkl. MwSt. zzgl. Versandkosten

Osstem SMARTbuilder: vorgeformte Titanmembran für die Knochenregeneration am Implantat – ohne Zuschneiden und Biegen, fixiert über Height Connector. Typ 1, 2 und 3 für ein- bis dreiwandige Defekte, mit Zubehör.

Auf Lager
BONE REGENERATION · OSSTEM
Osstem SMARTbuilder Membrane
Preformed titanium membrane for guided bone regeneration directly at the implant. The semi-dome membrane is screwed onto the implant via a height connector – no cutting, no bending, no pins. Three types for one-, two- and three-wall defects.
MATERIAL
titanium
preformed, perforated
TYPES
1 · 2 · 3
by defect walls
FIXATION
on the implant
via height connector
PORE SIZE
Ø 1.0 · 0.6 mm
blood supply + retention
TORQUE
5–8 Ncm
hex 1.2 mm
SMART 3D DESIGN
Augmentation without bending or cutting

Conventional titanium meshes must be cut and bent during surgery – sharp edges easily lead to dehiscences. The SMARTbuilder membrane is already preformed in three dimensions and is simply fixed onto the implant via a height connector. The rounded dome withstands chewing forces and holds the graft securely.

Ø 1.0 mm pores ensure blood supply, finer Ø 0.6 mm pores retain the material. At uncovering, the membrane can be removed without tissue damage.

▶ More in the video: Osstem shows the design and use of the SMARTbuilder membrane.

Video: Osstem SMARTbuilder
DEFECT SHAPE
Which type for which defect?
The choice depends on the number of missing bone walls.
SM1
Type 1
One-wall augmentation.
  • buccal deficiency
  • e.g. dehiscence or fenestration
SM2
Type 2
Two-wall augmentation.
  • buccal and proximal deficiency
  • horizontal and vertical
SM3
Type 3
Three-wall augmentation.
  • buccal, proximal and lingual deficiency
  • larger ridge defects
ORDER NUMBERS
Membranes
Dimensions in mm: P = proximal, BW = buccal width, BL = buccal length.
Order no. Type P BW BL
SM1W487SB Type 1 4 8 7
SM1W4107SB Type 1 4 10 7
SM1W4109SB Type 1 4 10 9
SM2W797SB Type 2 7 9 7
SM2W799SB Type 2 7 9 9
SM2W10127SB Type 2 10 12 7
SM2W10129SB Type 2 10 12 9
SM2W12127SB Type 2 12 12 7
SM2W12129SB Type 2 12 12 9
SM3W797SB Type 3 7 9 7
SM3W799SB Type 3 7 9 9
SM3W10127SB Type 3 10 12 7
SM3W10129SB Type 3 10 12 9
SM3W12127SB Type 3 12 12 7
SM3W12129SB Type 3 12 12 9
Code key: SM + type + W + P + BW + BL, e.g. SM2W797SB = type 2, P 7, BW 9, BL 7 mm.
ACCESSORIES
Connection, cover and instruments
Also available in the drop-down above:
Item Order no. Use
Healing cap SMHA443R · SMHA444R healing cap for the membrane
Cover cap SMCC415 cover cap regular, 0.5 mm
Height connector mini Ø 3.5 SMHI305TSM – SMHI330TSM heights 0.5 · 1.0 · 1.5 · 2.0 · 2.5 · 3.0 mm
Height connector regular Ø 4.0 SMHI405TSR – SMHI430TSR heights 0.5 · 1.0 · 1.5 · 2.0 · 2.5 · 3.0 mm
Cover cap driver SMCDES insert and remove caps
Defect gauge SMDG measure the defect, choose the membrane
Mini height connectors (TSM) also for Osstem mini implants Ø 3.5.
WORKFLOW
How to place the SMARTbuilder

1. Expose and assess the defect.
2. Measure the defect with the SMDG gauge, choose membrane type and size.
3. Place the implant.
4. Screw the height connector onto the implant with the 1.2 mm hex driver at 5–8 Ncm.
5. Place the bone graft.
6. Seat the membrane, check the fit and fix it with healing cap or cover cap (5–8 Ncm).
7. Reposition the flap and suture tension-free.

PRACTICAL TIPS
What matters

  • The membrane must fully enclose the graft – if in doubt, choose the larger size.
  • Choose the height connector so that the dome leaves enough space for the graft.
  • Tension-free wound closure is decisive to avoid membrane exposure.
  • Tighten to 5–8 Ncm only for fixation.
IMAGES
SMARTbuilder in detail

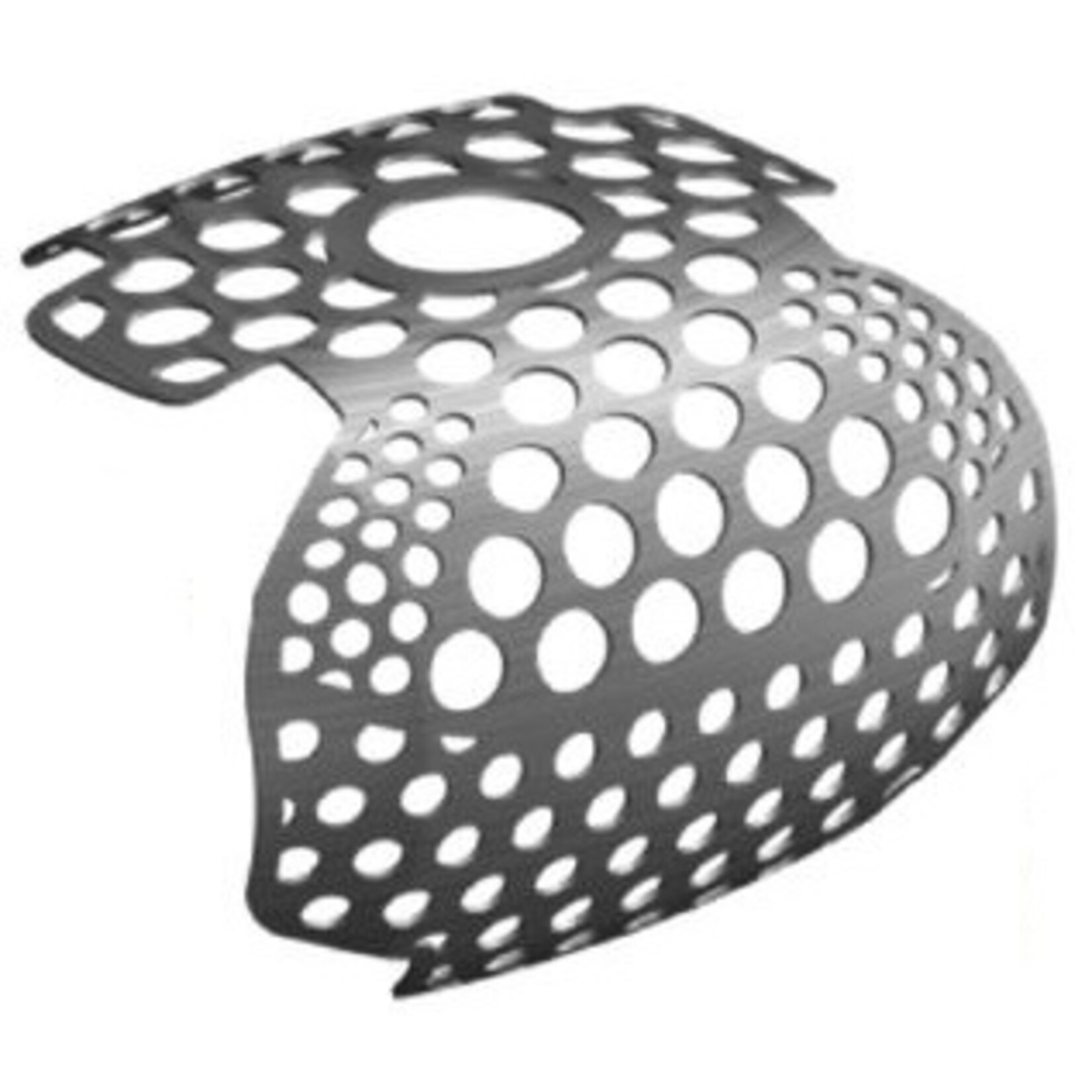

Osstem SMARTbuilder 1

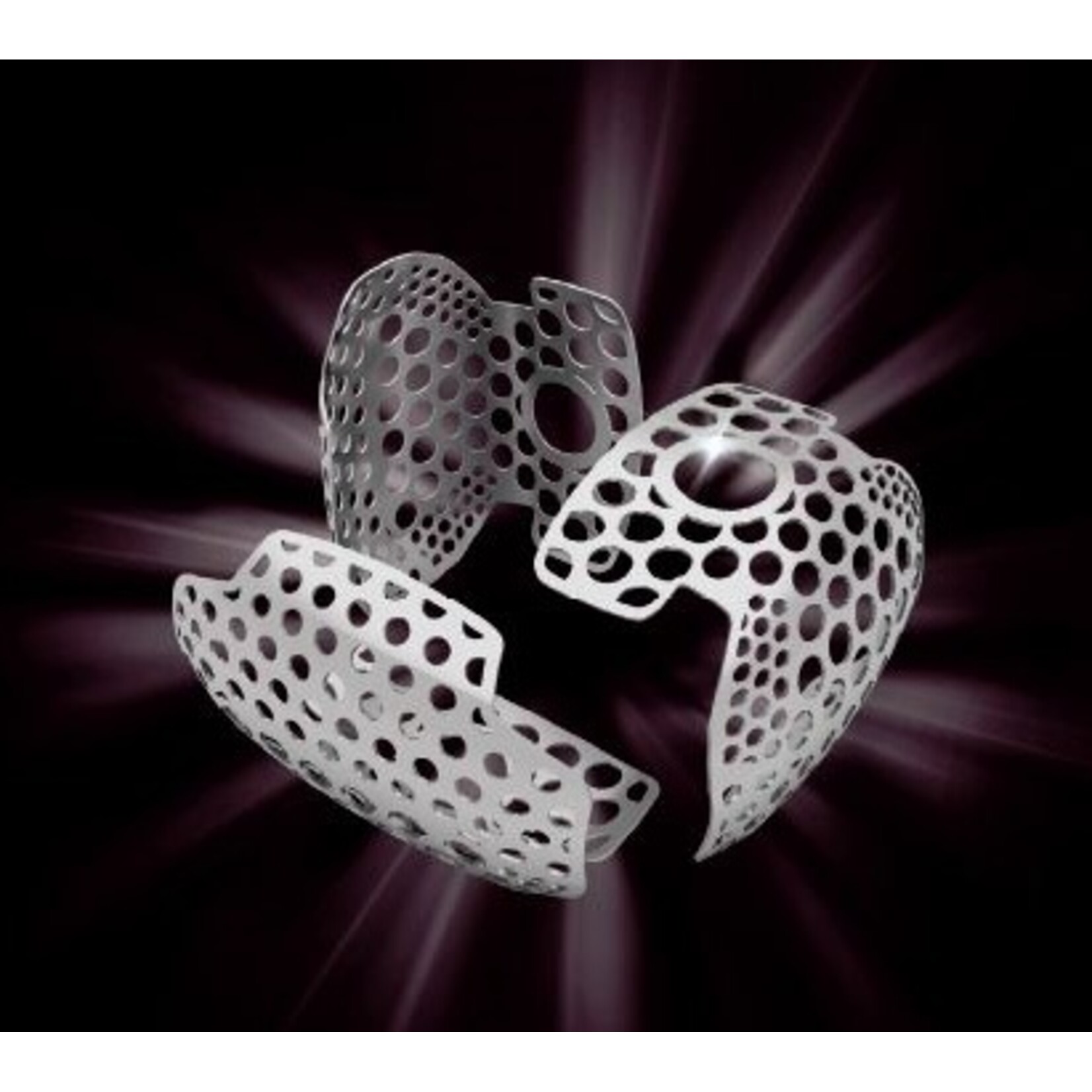

Osstem SMARTbuilder 2
Osstem SMARTbuilder 3
Osstem SMARTbuilder 4
Note: For use by trained dental professionals only. Use according to Osstem's instructions. The membrane is non-resorbable and is removed at uncovering.
