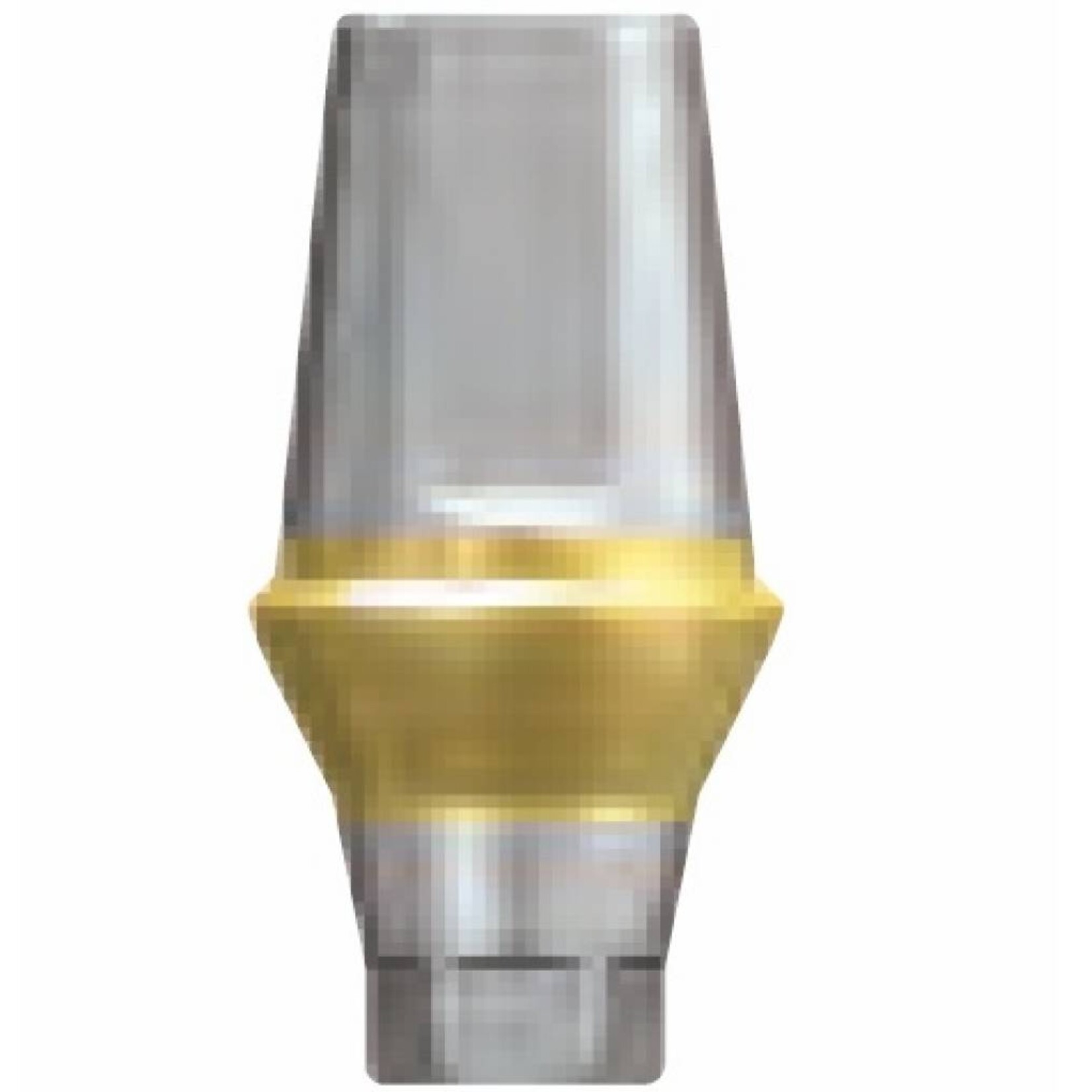

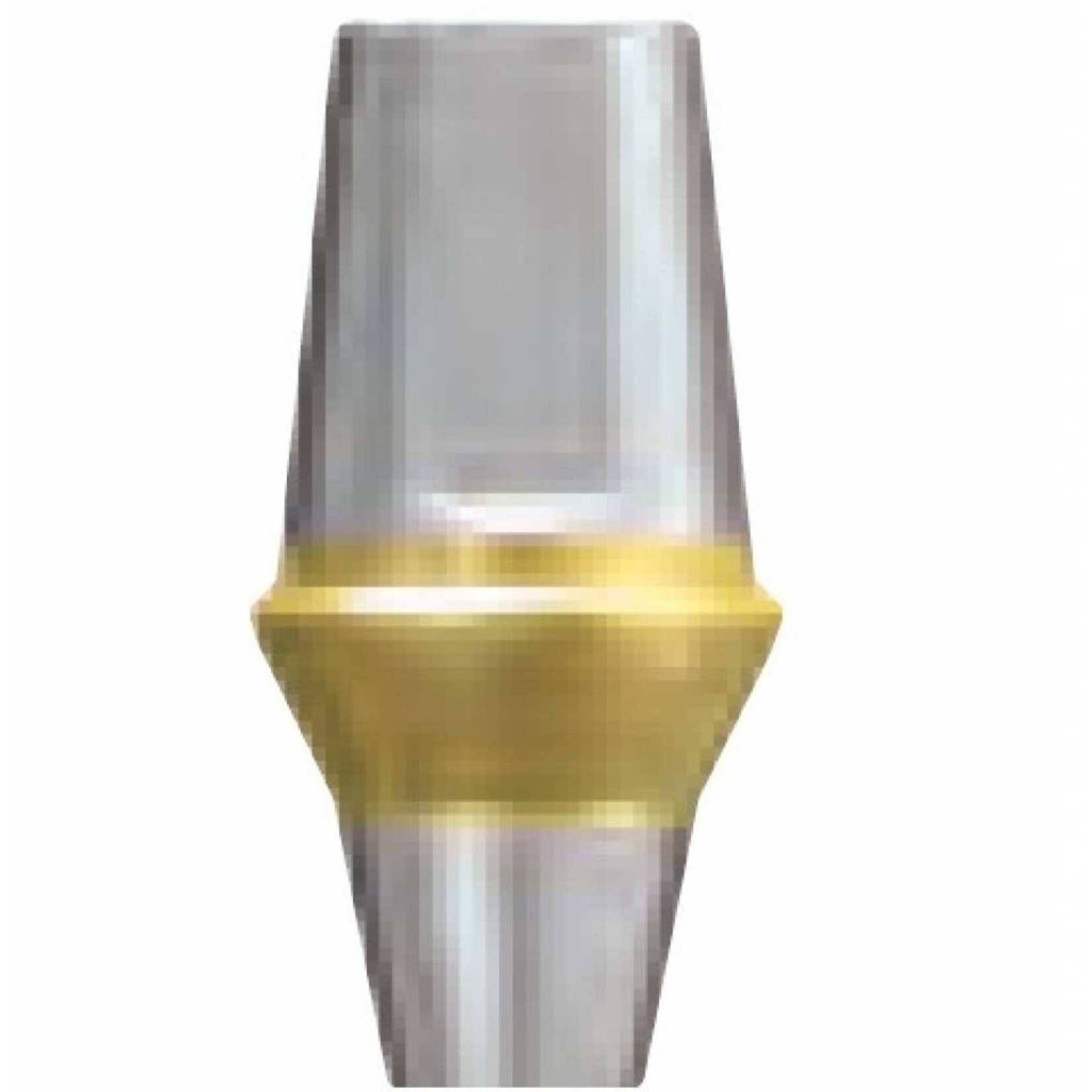

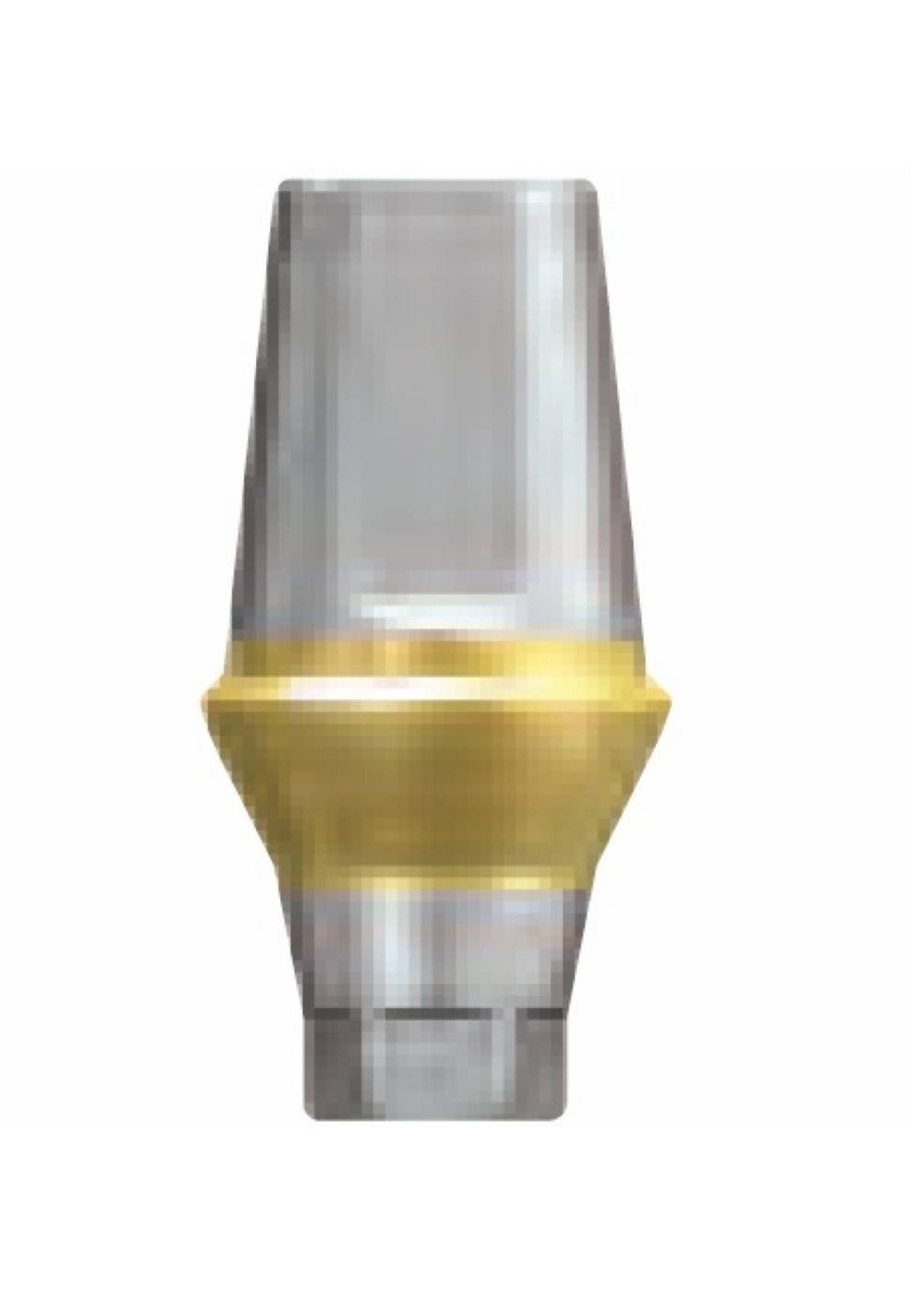

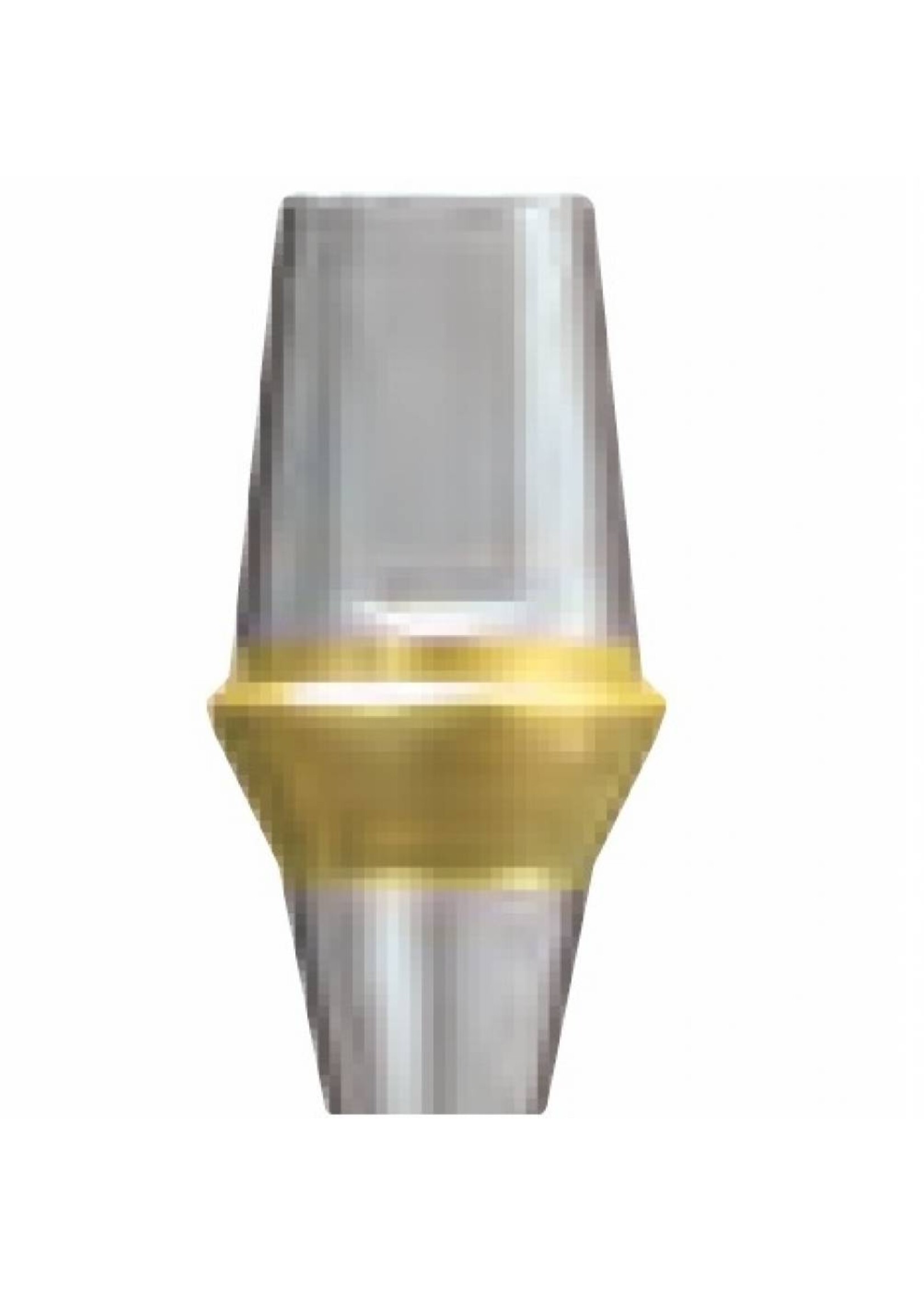

Transfer Abutment für Zementierter Zahnersatz
Lesen Sie mehr...
- Anziehdrehmoment für Mini Implantate 20Ncm, für Standard Implantate 30Ncm
- Verpackungseinheit: Abutment inkl. EbonyGold Schraube
ACHTUNG: Achten Sie auf die korrekte Drehmomenteinstellungen.
Es könnten Schraubenlockerungen und Schraubenbrüche entstehen!!!
Abutment's werden in Hex Ausführung geliefert (sind aber auch in Non-Hex Ausführung Lieferbar: Bitte tel. Bestellen)
| H | G/H | D Ø 4.5 | |
| Hex | Non-Hex | ||
| 5,5 | 1.0 | GSTA4611 | GSTA4611N |
| 2.0 | GSTA4621 | GSTA4621N | |
| 3.0 | GSTA4631 | GSTA4631N | |
| 4.0 | GSTA4641 | GSTA4641N | |
| 5,0 | GSTA4651 | GSTA4651N | |
| EbonyGold Schraube | GSABSM | ||
| H | G/H | D Ø 5,0 | |
| Hex | Non-Hex | ||
| 5,5 | 1.0 | GSTA5611 | GSTA5611N |
| 2.0 | GSTA5621 | GSTA5621N | |
| 3.0 | GSTA5631 | GSTA5631N | |
| 4.0 | GSTA5641 | GSTA5641N | |
| 5,0 | GSTA5651 | GSTA5651N | |
| EbonyGold Schraube | GSABSM | ||
| H | G/H | D Ø 4.5 | |
| Hex | Non-Hex | ||
| 5,5 | 1.0 | GSTAS4611 | GSTAS4611N |
| 2.0 | GSTAS4621 | GSTAS4621N | |
| 3.0 | GSTAS4631 | GSTAS4631N | |
| 4.0 | GSTAS4641 | GSTAS4641N | |
| 5,0 | GSTAS4651 | GSTAS4651N | |
| EbonyGold Schraube | GSABSS | ||
| H | G/H | D Ø 5,0 | |
| Hex | Non-Hex | ||
| 4 | 1.0 | GSTA5410 | GSTA5410N |
| 2.0 | GSTA5420 | GSTA5420N | |
| 3.0 | GSTA5430 | GSTA5430N | |
| 4.0 | GSTA5440 | GSTA5440N | |
| 5,0 | GSTA5450 | GSTA5450N | |
| 5,5 | 1.0 | GSTA5610 | GSTA5610N |
| 2.0 | GSTA5620 | GSTA5620N | |
| 3.0 | GSTA5630 | GSTA5630N | |
| 4.0 | GSTA5640 | GSTA5640N | |
| 5,0 | GSTA5650 | GSTA5650N | |
| 7 | 1.0 | GSTA5710 | GSTA5710N |
| 2.0 | GSTA5720 | GSTA5720N | |
| 3.0 | GSTA5730 | GSTA5730N | |
| 4.0 | GSTA5740 | GSTA5740N | |
| 5,0 | GSTA5750 |
GSTA5750N |
|
| H | G/H | D Ø 6,0 | |
| Hex | Non-Hex | ||
| 4 | 1.0 | GSTA6410 | GSTA6410N |
| 2.0 | GSTA6420 | GSTA6420N | |
| 3.0 | GSTA6430 | GSTA6430N | |
| 4.0 | GSTA6440 | GSTA6440N | |
| 5,0 | GSTA6450 | GSTA6450N | |
| 5,5 | 1.0 | GSTA6610 | GSTA6610N |
| 2.0 | GSTA6620 | GSTA6620N | |
| 3.0 | GSTA6630 | GSTA6630N | |
| 4.0 | GSTA6640 | GSTA6640N | |
| 5,0 | GSTA6650 | GSTA6650N | |
| 7 | 1.0 | GSTA6710 | GSTA6710N |
| 2.0 | GSTA6720 | GSTA6720N | |
| 3.0 | GSTA6730 | GSTA6730N | |
| 4.0 | GSTA6740 | GSTA6740N | |
| 5,0 | GSTA6750 | GSTA6750N | |
| H | G/H | D Ø 7,0 | |
| Hex | Non-Hex | ||
| 5,5 | 1.0 | GSTA7610 | GSTA7610N |
| 2.0 | GSTA7620 | GSTA7620N | |
| 3.0 | GSTA7630 | GSTA7630N | |
| 4.0 | GSTA7640 | GSTA7640N | |
| 5,0 | GSTA7650 | GSTA7650N | |
| EbonyGold Schraube | GSABSS | ||
