PROSTHETICS · ATTACHMENTS

Dualock Attachment System

Dualock is a snap attachment for removable implant overdentures. The abutments are available for many common implant systems with internal and external connections; according to the manufacturer, the system is fully compatible with Zest LOCATOR® – inserts, housings and tools are interchangeable.

DUALOCK

One system, many implants

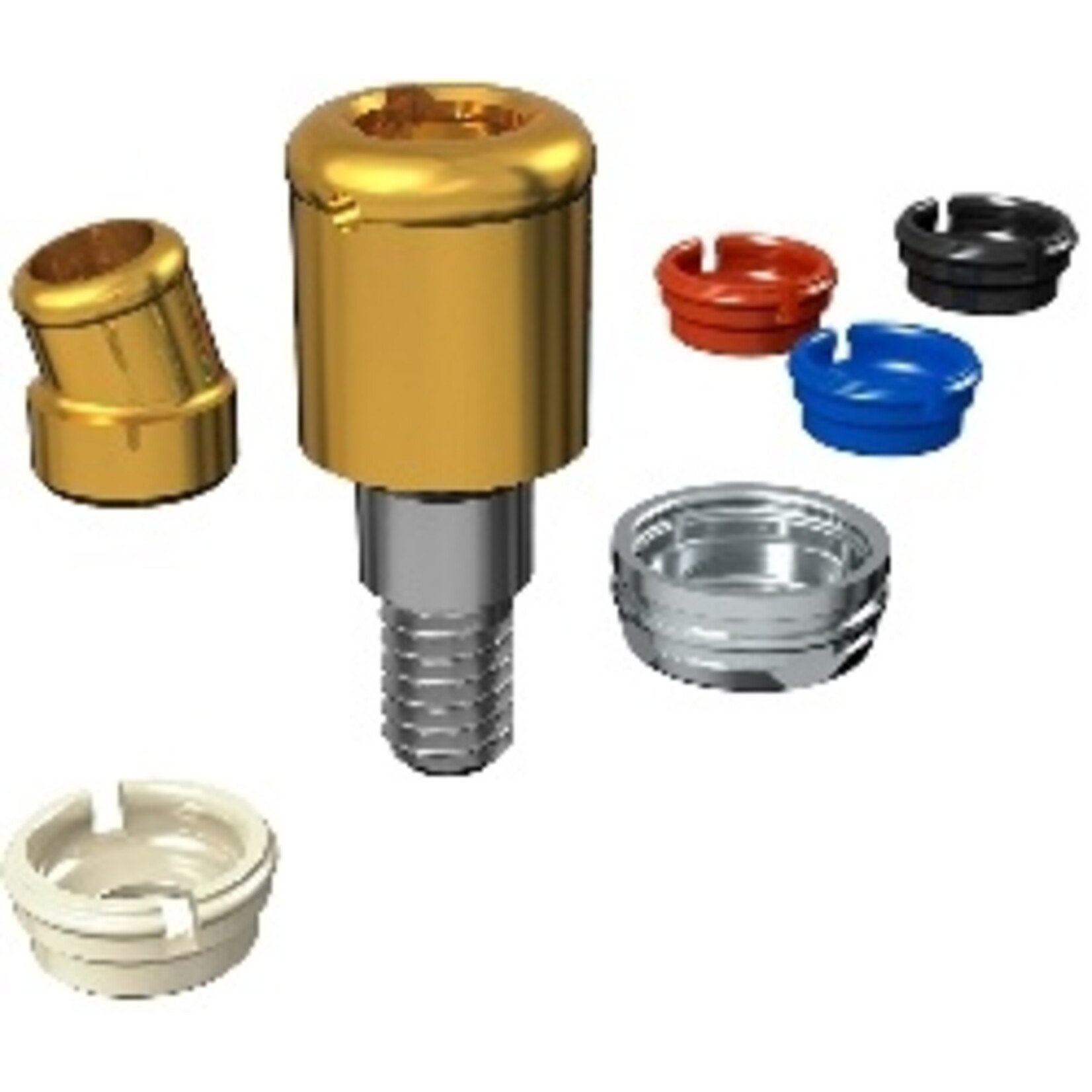

The abutment is screwed into the implant, and the titanium housing with retention insert is processed into the denture. The manufacturer is Implantology Smart Innovation S.L.U. (Spain). The titanium nitride coating makes the surface hard and wear-resistant. In addition to the familiar nylon inserts, Dualock offers Retention Z inserts made of PEEK, which are dimensionally stable and easy to clean.

IMPLANT SYSTEMS

For which implant?

Manufacturer's compatibility list. We supply all systems on request – please state system, platform and gingival height.

Implant system	Order no. straight	Gingival height	15° (1.5 / 3.0 mm)
Astra Tech Lilac Mozo Grau InHex WP Biogenesis Aticon 4.5 Cowellmedi Submerged (INNO) Dentis S-Clean MegaGen AnyOne Internal MegaGen EZ Plus 4.0 / 4.5 / 5.0	DS50451 – DS50456	1–6 mm	–
DIO UF II 3.8 / 4.0 / 4.5 / 5.0 Neobiotech IS 3.5 / 4.0 / 4.5 / 5.0	DS56401 – DS56406	1–6 mm	–
Astra Tech Aqua Mozo Grau InHex RP Biogenesis Aticon 3.5 Euroteknika Naturactis, Naturall, Natea MegaGen EZ Plus 3.5	DS50351 – DS50356	1–6 mm	–
Osstem / Hiossen TS 3.5	DS54351 – DS54356	1–6 mm	–
Osstem / Hiossen TS 4.0 / 4.5 / 5.0	DS54451 – DS54456	1–6 mm	–
MIS Internal 3.3 Narrow JDentalCare Evolution S 3.2 Paltop Internal Hex Narrow 3.25	DS20331 – DS20336	1–6 mm	–
Zimmer Internal Hex SP Alpha-Bio Internal Hex SP BioHorizons Internal 3.5 Implant Direct Legacy 3.7 MIS Internal 3.75 / 4.2 SP AB Implants Internal Hex ACE Internal Hex SP JDentalCare JDEvolution Avinent HI SP	DS20351 – DS20356	1–6 mm	DS2035AN1.5 · DS2035AN3.0
Zimmer Internal Hex WP BioHorizons Internal 4.0 Implant Direct Legacy 4.7 MIS Internal 5.0 WP ACE Internal Hex WP Avinent HI WP	DS20451 – DS20456	1–6 mm	DS2045AN1.5 · DS2045AN3.0
Nobel Biocare Brånemark Ext. Hex 3.3 NP Osstem US II 3.5 ACE External Hex NP	DS10331 – DS10336	1–6 mm	–
ACE External Hex RP Avinent HE 4.1 Biogenesis 3ICON Biomet 3i Osseotite HE 3.75 / 4.0 BTK Evo Klassic Ext Cowellmedi External DIO External MegaGen AnyOne External 4.0 Neobiotech EB External Nobel Biocare Brånemark Ext. Hex 4.1 RP, Speedy 4.0 Osstem US II 4.1 BTI Hexágono Externo 4.1 Imtec Universal Hex Ext. Intra-Lock 3.75 / 4.0 Hex Ext. Lifecore Restore 3.75 / 4.0 Hex Ext. MIS External SP Mozo Grau 3.75 / 4.0 Hex Ext.	DS10401 – DS10406	1–6 mm	DS104AN1.5 · DS104AN3.0
ACE External Hex WP Nobel Biocare Brånemark Ext. Hex 5.1 WP Osstem US II 5.1	DS10501 – DS10506	1–6 mm	–
Klockner SK2 4.2	DS40422 – DS40425	2–5 mm	–
Nobel Biocare Replace 3.5 Implant Direct Replant 3.5 ACE Tri-Cam 3.5	DS12351 – DS12356	1–6 mm	–
Nobel Biocare Replace 4.3 Implant Direct Replant 4.3 ACE Tri-Cam 4.3	DS12431 – DS12436	1–6 mm	–
Nobel Biocare Active 3.0	DS16301 – DS16306	1–6 mm	–
Nobel Biocare Active 3.5 Avinent Ocean conical 3.5	DS16351 – DS16356	1–6 mm	–
Nobel Biocare Active 4.3 Avinent Ocean conical 4.3	DS16431 – DS16436	1–6 mm	–
Multi-Unit on multi-unit abutment	DS1MU01 · DS1MU02	–	–
Straumann Tissue Level 4.8 Lifecore Stage 1 MegaGen Exfeel Internal 3.5 / 4.2 / 4.8 Biogenesis ITICON Anthogyr Ossfit BTK 8Neck INT Cowellmedi Internal Dentis I-Clean Dentium SimpleLine Euroteknika Aesthetica Implant Direct SwissPlant MIS Mistral Osstem SS 4.8 Zimmer Swiss Plus 4.8	DS30401 – DS30405	1–5 mm	DS304AN1.5 · DS304AN3.0
Straumann Bone Level NC 3.3	DS32331 – DS32336	1–6 mm	–
Straumann Bone Level RC 4.1	DS32411 – DS32416	1–6 mm	–
Phibo TSH / BNT S2	DS36201 – DS36205	1–5 mm	–
Phibo TSH / BNT S3 / S4	DS36341 – DS36345	1–5 mm	–
Phibo TSH / BNT S5	DS36502 – DS36503	2–3 mm	–
Phibo TSA / TSDAV S3	DS38301 – DS38305	1–5 mm	–
Phibo TSA / TSDAV S4	DS38401 – DS38405	1–5 mm	–
Phibo TSA / TSDAV S5	DS38502	2 mm	–
Biomet 3i Certain 3.4	DS60341 – DS60346	1–6 mm	–
Biomet 3i Certain 4.1	DS60411 – DS60416	1–6 mm	–
MegaGen AnyRidge	DS51401 – DS51406	1–6 mm	–
TRI Implants Narrow 3.3	DS24321 – DS24325	1–5 mm	–
Dentaltech Internal Hex 3.25	DS22321 – DS22325	1–5 mm	–

The last digit of the order number is the gingival height in mm (e.g. DS50453 = 3 mm). Source: Dualock compatibility list, as of 10 June 2024. Neobiotech IS directly in the shop: Dualock for Neobiotech →

ABUTMENTS

Straight, angled or for bars

For every system in several gingival heights:

Version	Heights	Note
Straight abutment	1 · 2 · 3 · 4 · 5 · 6 mm	standard
Angled abutment 15°	1.5 · 3.0 mm	for tilted implants
Bar abutment	M2 thread	for bar dentures

All abutments with insertion aid; screw head hex 1.25 mm.

RETENTION INSERTS

Retention as required

The inserts are pressed into the titanium housing and simply replaced when retention decreases.

Retention Z (PEEK)	Retention	Force
Black	light	1–1.5 lbs
Red	medium	2.5–3 lbs
White	strong	4.5–5 lbs



Retention N (nylon)	Retention	Force
Red	very light	1–1.5 lbs
Blue	light	1.5 lbs
Black · Orange	medium	2 lbs
Pink	medium-strong	3 lbs
Green	strong	4 lbs
White	very strong	5 lbs

Nylon inserts are available for implant divergences up to 20° and up to 40°. Data according to the manufacturer; 1 lb ≈ 0.45 kg.

ACCESSORIES

Housings, lab and tools

Available on request:

Item	Use	Order no.
Titanium housing	for retention Z and N	DS00750
Silicone spacer ring	block-out during processing	DS00800
Impression coping	abutment-level impression	IMCDS
Lab analog	model fabrication	ANADS
Torque adapter	for the torque wrench	TORQDS
Universal tool	insertion and removal of retention Z	UNIVERDS
Retention set	nylon insert	DS00101

According to the manufacturer, retention N and tools are also compatible with LOCATOR® parts.

ENQUIRY

How to order Dualock for your system

1. State implant system and platform or implant diameter.
2. Measure the gingival height at the highest point of the mucosa and choose the abutment height.
3. For tilted implants, choose the 15° abutment or inserts with large angle compensation.
4. Send your request via “Request Dualock model” – we confirm availability and delivery time.
