IMPLANT SYSTEM · COWELLMEDI

INNO Mini Plus Ball Type

Narrow-diameter implant system from Cowellmedi with an integrated ball head for removable prosthetic restorations. Available in Ø 2.5 and Ø 3.0 mm, with implant lengths of 10, 12 and 14 mm and gingival heights of 2 and 4 mm.

COWELLMEDI · MINI PLUS

Ball Type for removable prosthetic restorations

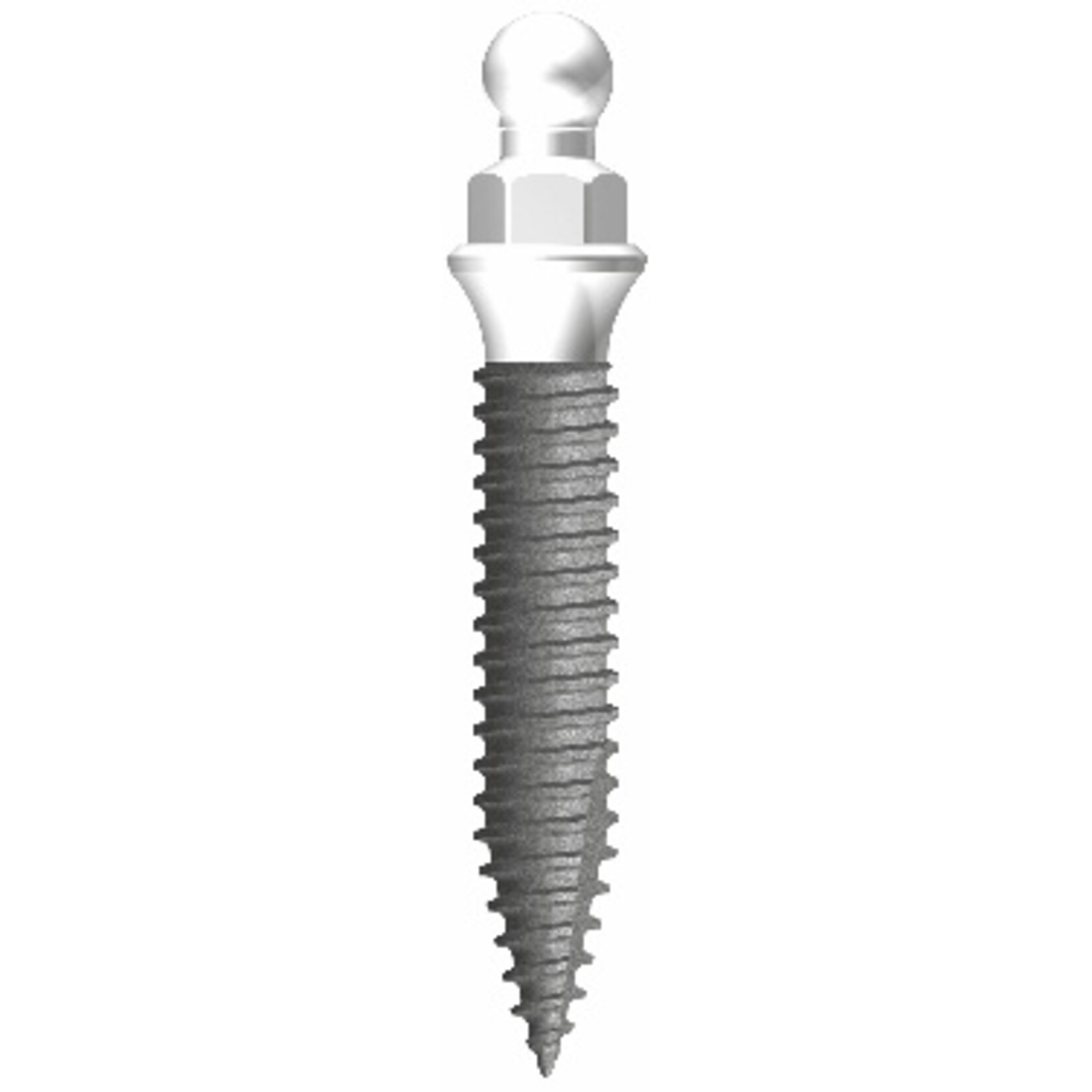

The INNO Mini Plus Ball Type combines a narrow implant body with an integrated ball head for the retention of removable prosthetic restorations.

Two implant diameters, three implant lengths and two gingival heights allow selection according to the individual anatomical and prosthetic situation.

BALL ATTACHMENT SYSTEM

Components for prosthetic restoration

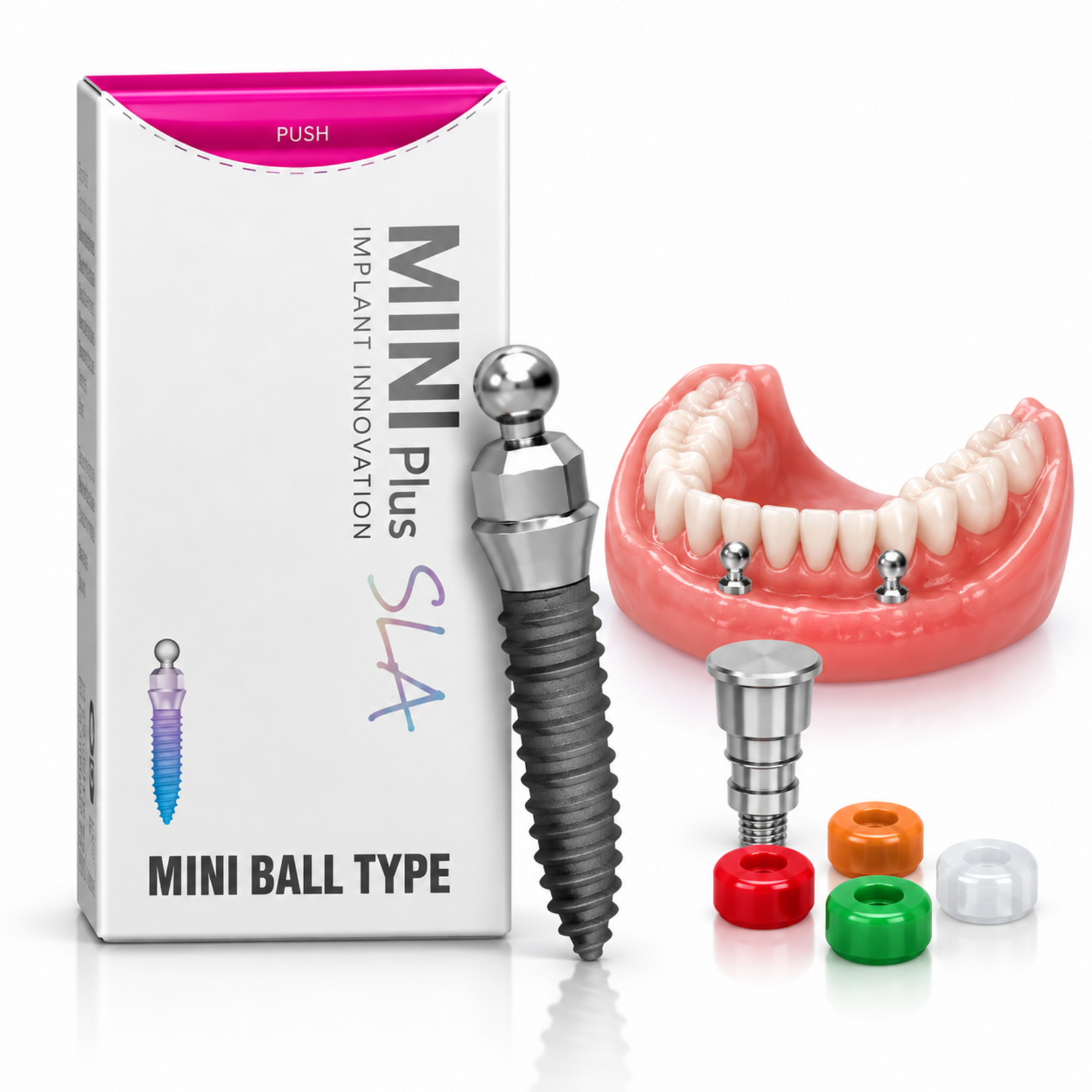

Color-coded inserts, matching caps and components for impression taking and model fabrication are available for the Ball Type system.

MBI 25 · MBI 30

Available sizes & order numbers

Implant length and gingival height by diameter.

Length	Ø 2.5 mm · GH 2.0 mm	Ø 2.5 mm · GH 4.0 mm	Ø 3.0 mm · GH 2.0 mm	Ø 3.0 mm · GH 4.0 mm
10.0 mm	AMB2210S	AMB2410S	AMB3210S	AMB3410S
12.0 mm	AMB2212S	AMB2412S	AMB3212S	AMB3412S
14.0 mm	AMB2214S	AMB2414S	AMB3214S	AMB3414S

BALL TYPE · ACCESSORIES

Attachment components

Components for retention, impression taking and model fabrication.

Product	Order number
Inserts	BATC003I
Caps · 2 pcs.	BATC003C
Ball impression component	AMBI001
Ball analog	AMBL001

SYSTEM OVERVIEW

INNO Mini Plus Ball Type

PRODUCT SELECTION

MBI 25: Ø 2.5 mm
MBI 30: Ø 3.0 mm
Both diameters are available with gingival heights of 2.0 or 4.0 mm and implant lengths of 10.0, 12.0 and 14.0 mm.

CLINICAL NOTE

Selection of implant diameter, implant length, gingival height and attachment components, as well as the surgical and prosthetic procedure, is the responsibility of the treating clinician according to the individual clinical situation. Current manufacturer instructions and Instructions for Use (IFU) apply.
