Osstem Lab Analogs & Screws

Lab analogs for the working model plus lab and replacement screws for Osstem TS – mini and regular platform.

WORKING MODEL

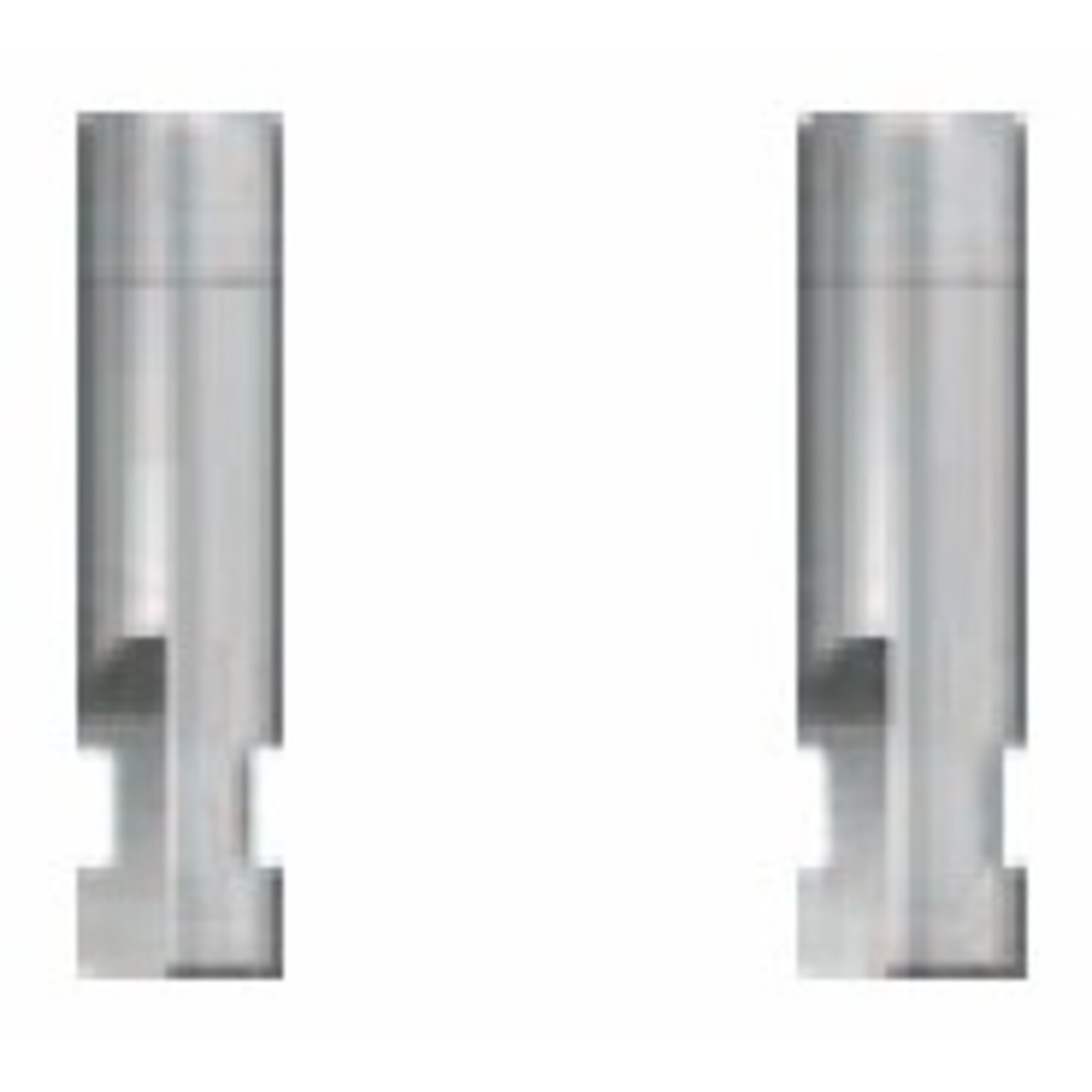

Lab analogs

Connected to the impression coping before pouring and transfers the implant position into the model.

Implant	Mini · Ø 3.1 mm	Mini · Ø 3.5 mm	Regular · from Ø 4.0 mm
Order number	GSTLA300	GSTLA350	GSTLA400

DIGITAL WORKFLOW

Scan body & digital lab analog

Scan body, driver and lab analog for printed models from an intraoral scan.

	Mini (M)	Regular (R)
Scan body short · 8 mm	TSNSBMSTH	TSNSBRSTH
Scan body long · 12 mm	TSNSBMLTH	TSNSBRLTH
Driver	TSNSBHDM	TSNSBHDR
Digital lab analog	TSDLA300 (Ø 3.1) · TSDLA350 (Ø 3.5)	TSDLA400

MODEL WORK

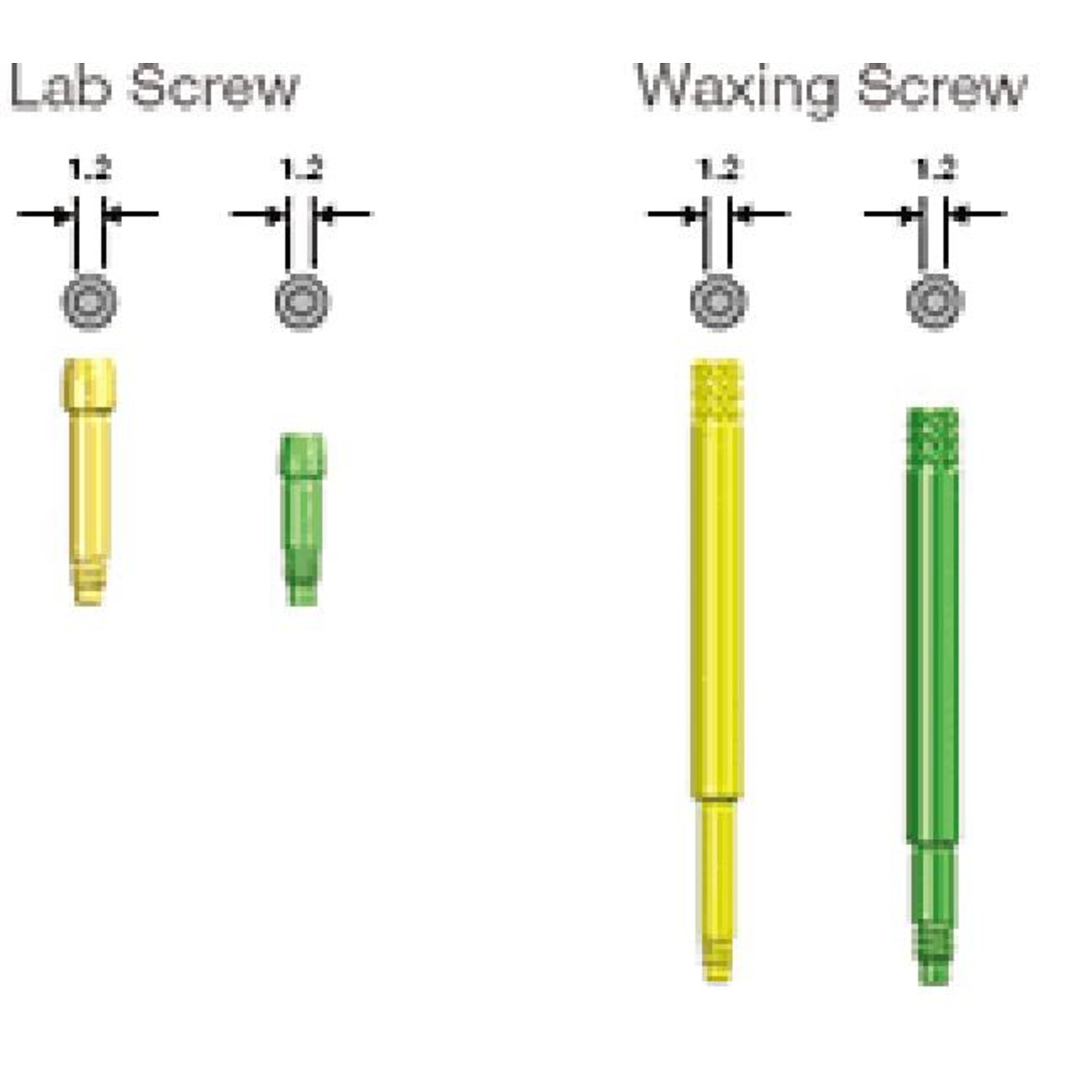

Lab screws

For lab work – the original abutment screw is kept for the patient.

	Mini · Ø 3.5 mm	Regular · from Ø 4.0 mm
Lab screw	GSABSML	GSABSSL

SPARE PARTS

Replacement screws for existing restorations

If an existing abutment with crown needs a new screw, the screw must match the system of the abutment in place: GS (old) for older restorations, EbonyGold for current TS abutments. The image shows the difference.

CHOOSING CORRECTLY

Do not use lab screws in the patient's mouth. For replacement screws, always identify the system of the existing abutment – GS (old) and EbonyGold (new) are not interchangeable. Mini and regular are not interchangeable. More on platforms: Osstem Prosthetics · General selection guide: Prosthetics
