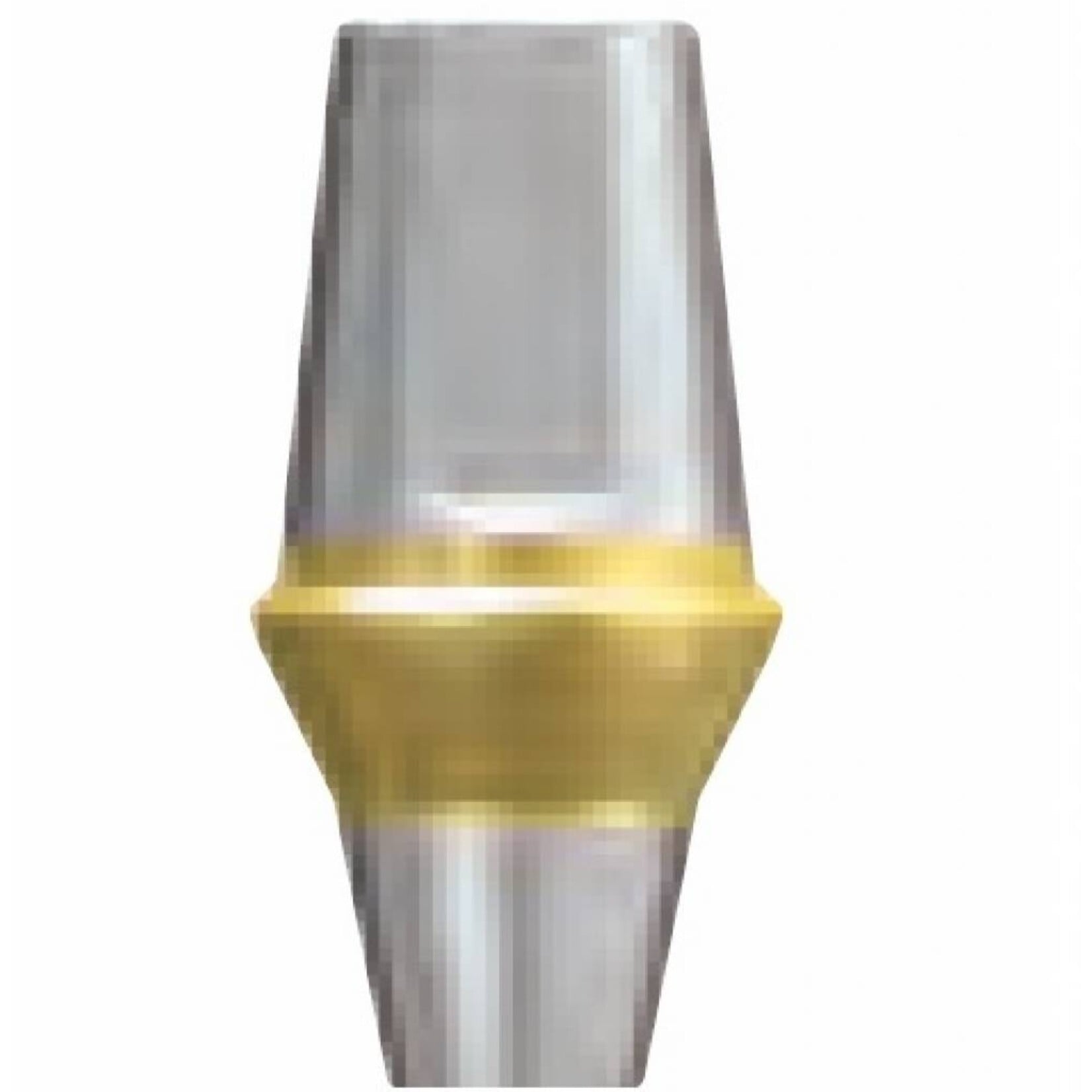

Osstem TS Transfer Abutment – Mini & Regular, Hex/Non-Hex

Osstem TS Transfer Abutment – Mini & Regular

€70,00 *

* Excl. tax Excl. Shipping costs

Straight abutment for cemented crowns and bridges on Osstem TS implants. Mini and regular platform, Ø 4.5–7.0 mm, gingival height 1–5 mm, hex (WH) or non-hex (NWH), incl. EbonyGold screw.

PROSTHETICS · OSSTEM TS

Osstem Transfer Abutment

Straight abutment for cemented crowns and bridges on Osstem TS implants – for mini and regular platform, with or without anti-rotation.

RESTORATION

Cemented

Crowns & bridges

PLATFORM

Mini & Regular

Hex 2.1 / hex 2.5

TORQUE

20 / 30 Ncm

Mini / regular

CONNECTION

Hex / Non-Hex

Suffix WH / NWH

INCLUDED

Abutment screw

EbonyGold

ORDER NUMBERS

Available sizes

By platform, emergence diameter (Ø), post height (PH) and gingival height. Order number + WH (hex) or NWH (non-hex), e.g. GSTA5620WH.

Mini platform · hex 2.1 · implants Ø 3.0 / 3.5 mm · 20 Ncm

Gingival height	Ø 4.5 mm · PH 5.5 mm
1.0 mm	GSTA4611
2.0 mm	GSTA4621
3.0 mm	GSTA4631
4.0 mm	GSTA4641
5.0 mm	GSTA4651

Regular platform · hex 2.5 · implants Ø 4.0–7.0 mm · 30 Ncm

Gingival height	Ø 4.5 mm · PH 5.5 mm	Ø 5.0 mm · PH 5.5 mm	Ø 5.0 mm · PH 7.0 mm	Ø 6.0 mm · PH 5.5 mm	Ø 6.0 mm · PH 7.0 mm	Ø 7.0 mm · PH 5.5 mm
1.0 mm	GSTAS4611	GSTA5610	GSTA5710	GSTA6610	GSTA6710	GSTA7610
2.0 mm	GSTAS4621	GSTA5620	GSTA5720	GSTA6620	GSTA6720	GSTA7620
3.0 mm	GSTAS4631	GSTA5630	GSTA5730	GSTA6630	GSTA6730	GSTA7630
4.0 mm	GSTAS4641	GSTA5640	GSTA5740	GSTA6640	GSTA6740	GSTA7640
5.0 mm	GSTAS4651	GSTA5650	GSTA5750	GSTA6650	GSTA6750	GSTA7650

NOTE ON Ø 4.5 MM

GSTA46… fits the mini platform only, GSTAS46… the regular platform only – despite the same emergence diameter. TSIII Narrow Ø 3.0: the mini abutment sits 0.5 mm higher, so the real gingival height is 0.5 mm greater than stated (e.g. 1.0 → 1.5 mm). More on platforms: Osstem Prosthetics · General selection guide: Prosthetics

Manufacturer's note: Selection and use according to the current Osstem instructions for use (IFU).
