Osstem TS Healing Abutment – Mini & Regular Platform

Osstem TS Healing Abutment & Cover Screws

€30,00 *

* Excl. tax Excl. Shipping costs

Healing abutment for Osstem TS implants, mini and regular platform, Ø 4.0–7.0 mm, total height 3–7 mm incl. 2 mm above tissue. Plus cover screws for submerged healing.

PROSTHETICS · OSSTEM TS

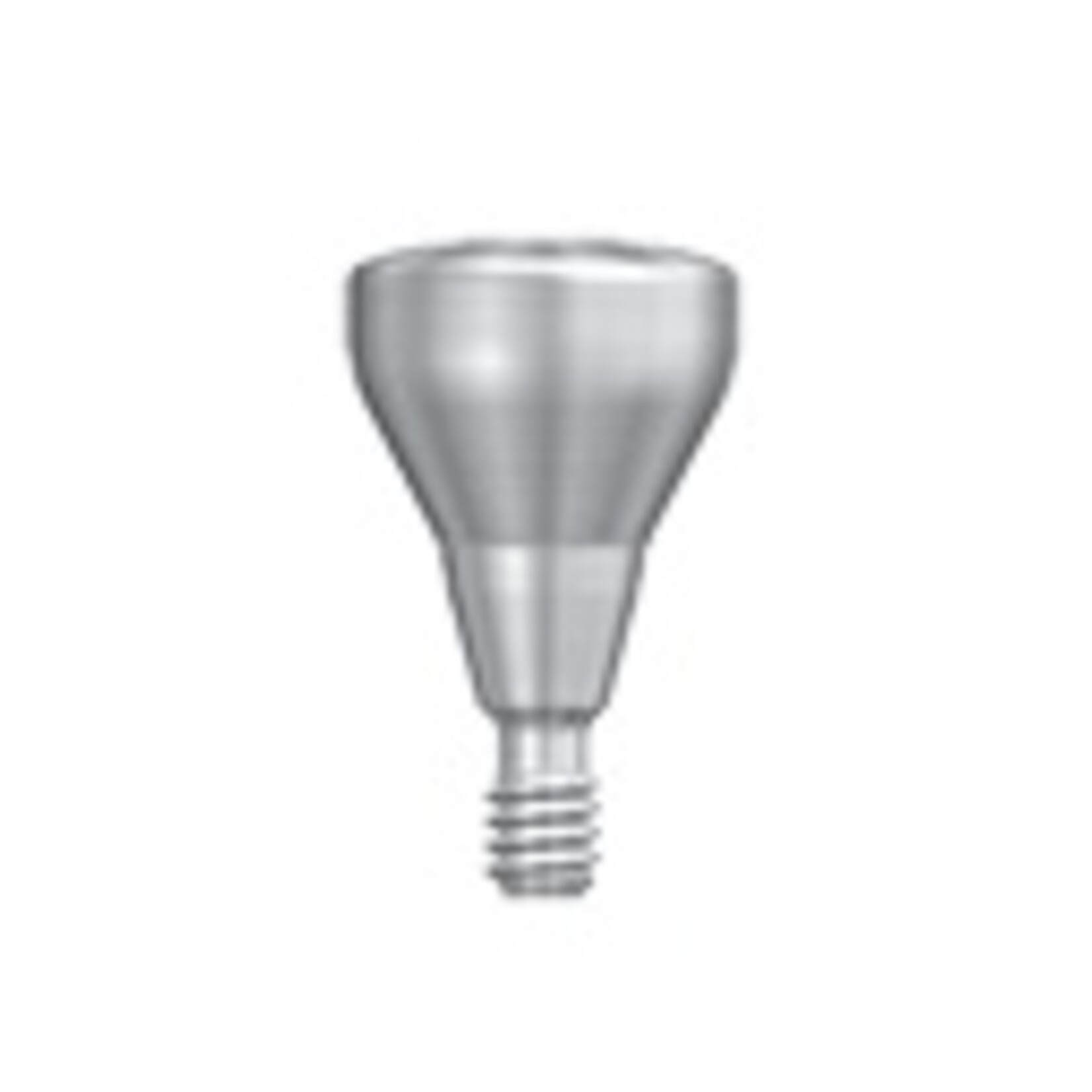

Osstem TS Healing Abutment

Healing abutment for shaping the soft tissue during the healing phase of Osstem TS implants – for mini and regular platform. Matching cover screws for submerged healing.

FUNCTION

Soft tissue

Shaping during healing

PLATFORM

Mini & Regular

Suffix M / R · hex 2.1 / 2.5

HEIGHT

3.0–7.0 mm

incl. 2 mm above tissue

TORQUE

< 10 Ncm

hand-tight

TOOL

1.2 mm Hex

Hex driver

ORDER NUMBERS

Healing abutments

Columns = diameter of the healing abutment. The last digit of the number is the total height: gingiva thickness + 2 mm above the tissue, so the mucosa does not grow over it.

Mini platform (M) · hex 2.1 · implants Ø 3.0 / 3.5 mm

Total height	Gingiva thickness	Ø 4.0 mm	Ø 4.5 mm
3.0 mm	1 mm	TSHA403M	TSHA453M
4.0 mm	2–3 mm	TSHA404M	TSHA454M
5.0 mm	3–4 mm	TSHA405M	TSHA455M
7.0 mm	≥ 5 mm	TSHA407M	TSHA457M

Regular platform (R) · hex 2.5 · implants Ø 4.0–7.0 mm

Total height	Gingiva thickness	Ø 4.0 mm	Ø 4.5 mm	Ø 5.0 mm	Ø 6.0 mm	Ø 7.0 mm
3.0 mm	1 mm	TSHA403R	TSHA453R	TSHA503R	TSHA603R	TSHA703R
4.0 mm	2–3 mm	TSHA404R	TSHA454R	TSHA504R	TSHA604R	TSHA704R
5.0 mm	3–4 mm	TSHA405R	TSHA455R	TSHA505R	TSHA605R	TSHA705R
7.0 mm	≥ 5 mm	TSHA407R	TSHA457R	TSHA507R	TSHA607R	TSHA707R

SUBMERGED HEALING

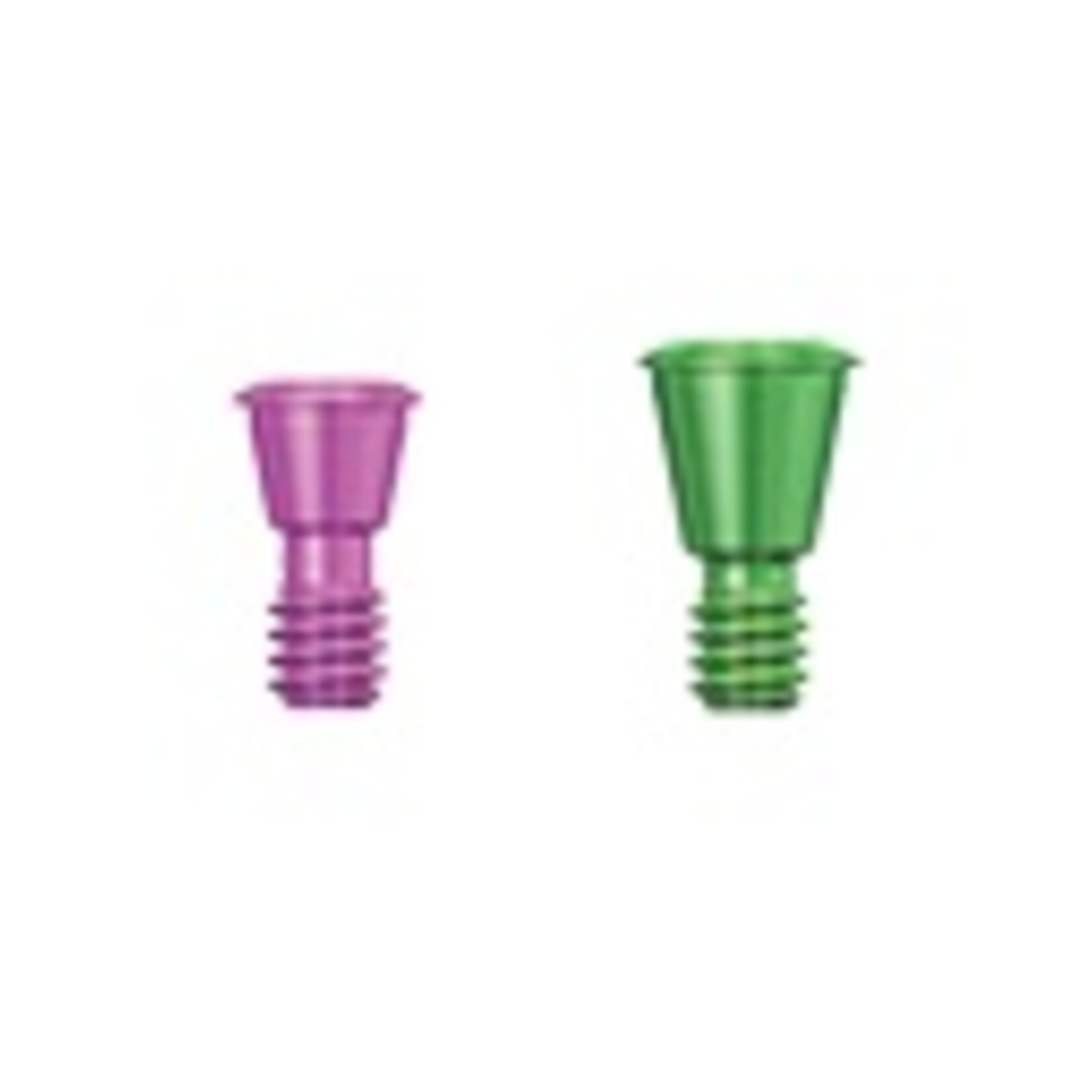

Cover screws

For submerged healing or very thin mucosa – where a healing abutment is not suitable.

Length	Mini · implant Ø 3.5 mm	Regular · implant Ø 4.0–7.0 mm
short (S)	GSCS35	GSCS40S-G
medium (M)	GSCS35M	GSCS40M-G
long (L)	GSCS35L	GSCS40L-G

CHOOSING THE HEIGHT

For subcrestally placed implants, add the extra depth down to bone level. With the TSIII Narrow Ø 3.0, the healing abutment also sits 0.5 mm higher. Mini (M) and regular (R) are not interchangeable. More on platforms: Osstem Prosthetics · General selection guide: Prosthetics

Manufacturer's note: Tighten healing abutments hand-tight with less than 10 Ncm. Selection and use according to the current Osstem instructions for use (IFU).
