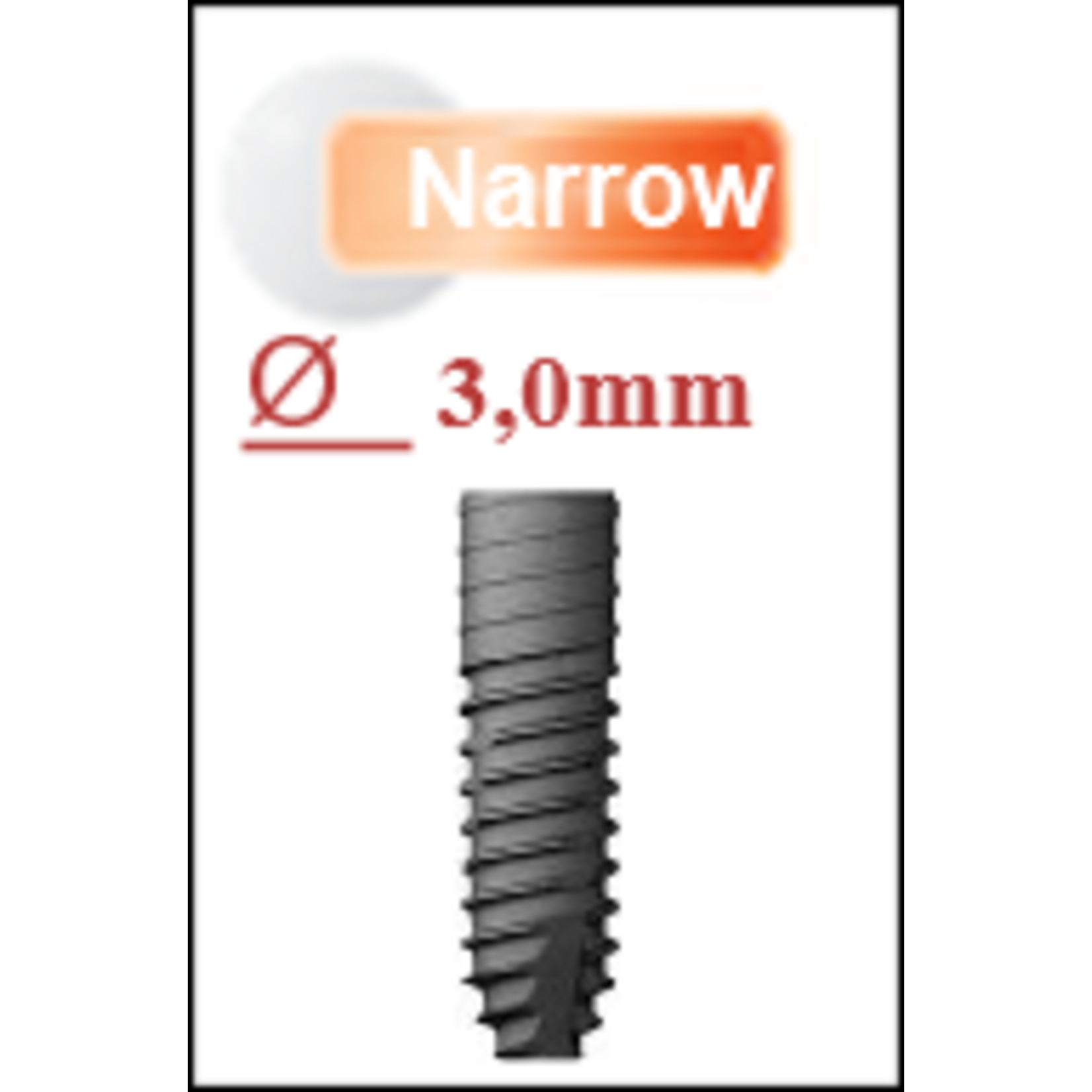

OSSTEM TSIII Narrow Ø 3.0 mm

Narrow bone-level implant from the OSSTEM TSIII family for treatment situations with reduced horizontal bone width. The Ø 3.0 mm implant uses the OSSTEM Mini abutment connection.

TSIII · NARROW

Ø 3.0 mm for narrow treatment situations

The TSIII Narrow extends the TSIII implant system with a Ø 3.0 mm implant diameter. It is intended for situations where reduced horizontal bone width requires the use of a narrow implant.

The implant uses the Mini connection and accepts the corresponding Mini abutments. Due to the specific design of the Ø 3.0 mm implant, however, the 0.5 mm offset of the internal connection must be taken into account when selecting the prosthetic component.

IMPORTANT · MINI CONNECTION

Consider the 0.5 mm offset when selecting the abutment

The TSIII Narrow Ø 3.0 mm accepts Mini abutments. Due to the reduced implant diameter, however, the internal connection is positioned 0.5 mm less deeply.

As a result, the inserted Mini abutment is positioned correspondingly higher in relation to the implant shoulder. This design feature must be taken into account when selecting the gingival height.

EXAMPLE · GINGIVAL HEIGHT

Example: A Mini abutment with a specified gingival height of 1.0 mm results in a height of 1.5 mm above the implant shoulder on the TSIII Narrow Ø 3.0 mm due to the 0.5 mm design offset.

TSIII NARROW · MINI Ø 3.0 MM

Available Sizes

TSIII Narrow Ø 3.0 mm with Mini connection.

Length	Mini Ø 3.0 mm	Connection
8.5 mm	BTS3M3008	Mini
10.0 mm	BTS3M3010	Mini
11.5 mm	BTS3M3011	Mini
13.0 mm	BTS3M3013	Mini

PROSTHETIC PLANNING

When selecting the abutment, do not consider only the nominal gingival height of the Mini component. With the TSIII Narrow Ø 3.0 mm, the 0.5 mm design offset must be taken into account during prosthetic planning.

OSSTEM · SA

SA Surface

The TSIII Narrow uses the OSSTEM SA surface. The surface structure is produced by sandblasting followed by acid etching.

SYSTEM OVERVIEW

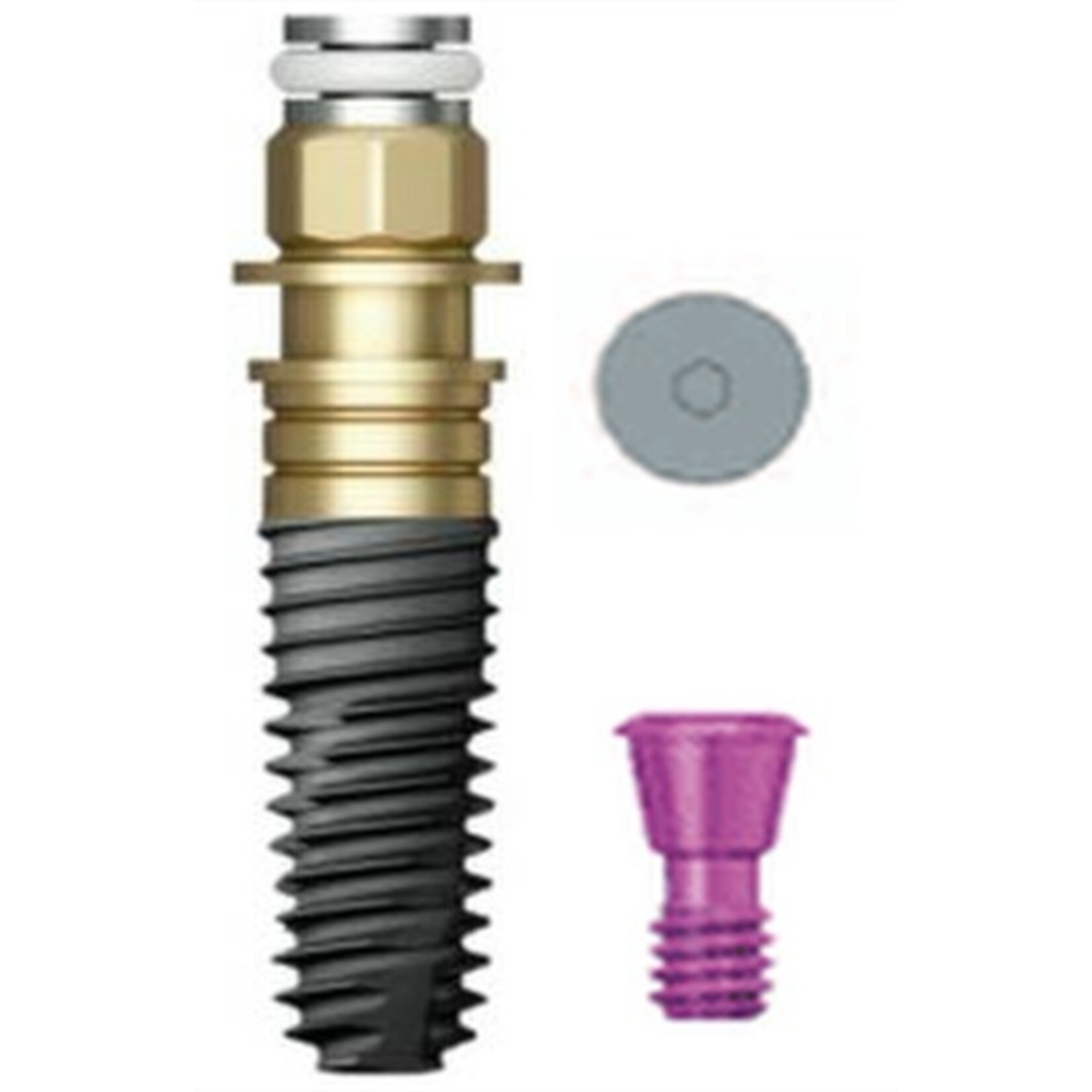

OSSTEM TSIII Narrow

CLINICAL & PROSTHETIC NOTE

Implant selection, implant position, surgical procedure and selection of prosthetic components are determined by the treating clinician according to the individual clinical situation. Current manufacturer information, surgical and prosthetic protocols and Instructions for Use (IFU) apply when selecting and using compatible components.
