Sinus Lift Hand Instruments

Proven hand instruments for classic sinus floor elevation – from the crestal approach with Summers osteotomes to the lateral window with elevators, curettes and membrane separator. Available individually or as a compact set in a sterilisation cassette.

APPROACH

Crestal & lateral

Internal and external sinus lift

OSTEOTOMES

Ø 3.0–5.0 mm

Straight or bayonet, with stop

CURETTES

9 / 15 mm

Triple-angled tip

MEMBRANE

Detach & elevate

Separator, elevator, curette

SET

3 instruments

Double-ended, in steri cassette

COMPACT & PRACTICAL

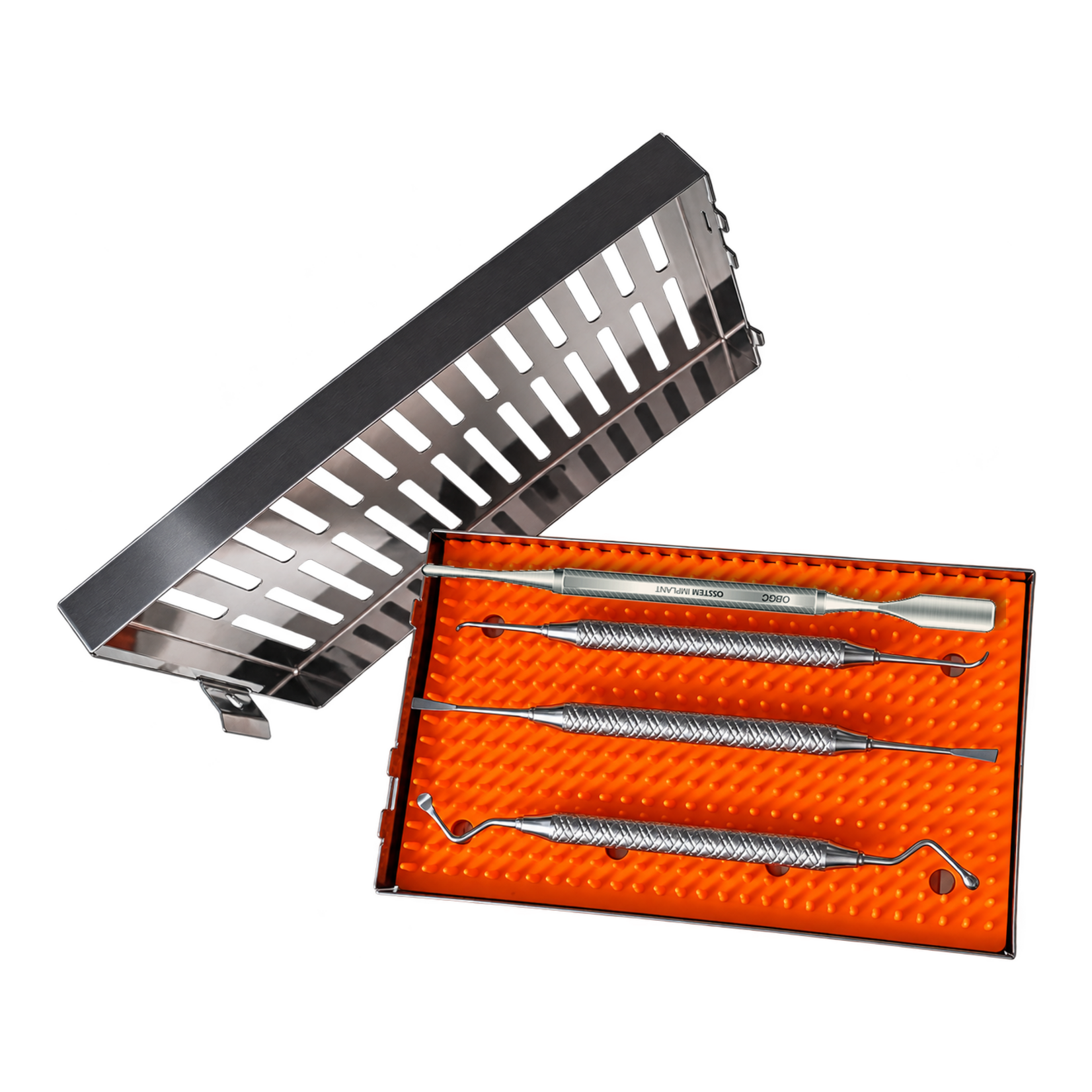

ImplAg Sinus Set in a sterilisation cassette

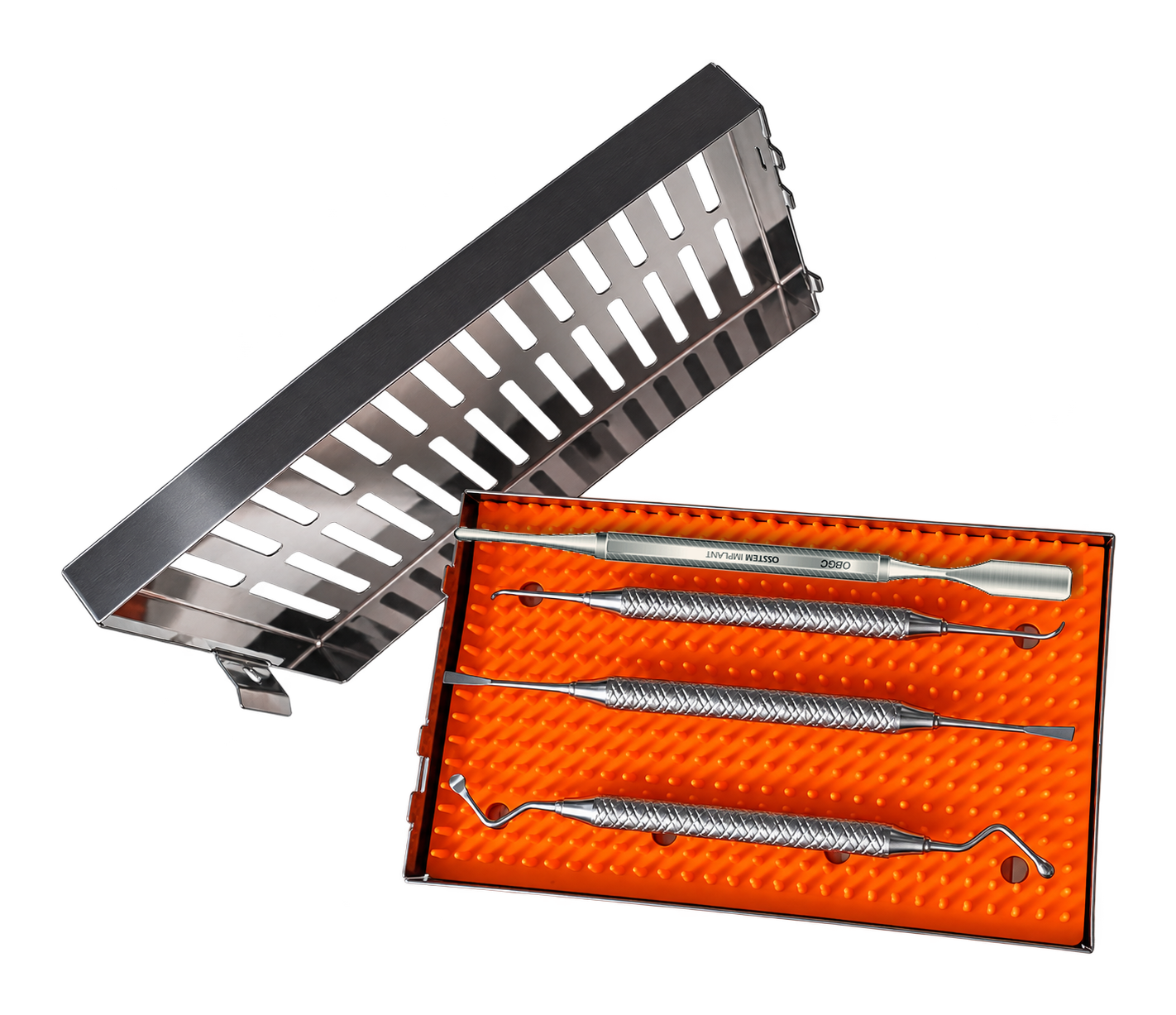

ImplAg Sinus Set with three double-ended instruments in sterilisation cassette

Three double-ended sinus instruments for the lateral approach – with textured handles for a secure grip, stored on a silicone mat in a perforated stainless-steel cassette. The lidded cassette is suitable for cleaning, sterilisation and storage.

Sinus curette – spoon-shaped, angled
Membrane elevator / periosteal elevator
Membrane separator – fine tip for initial detachment
Sterilisation cassette with lid and silicone mat

INDIVIDUAL INSTRUMENTS

Instruments & order codes

All instruments can also be selected individually as variants.

Instrument	Approach	Design	Length	Code
Sinus osteotome	Crestal	Concave working tip with stop · straight or bayonet · Ø 3.0 / 3.3 / 4.0 / 5.0 mm	—	Variant
Membrane separator	Lateral	Initial detachment of the sinus membrane at the window margin	167 mm	OMSC
Freer elevator	Lateral	Membrane elevator (width 5.0 mm) and periosteal elevator	171 mm	OFE

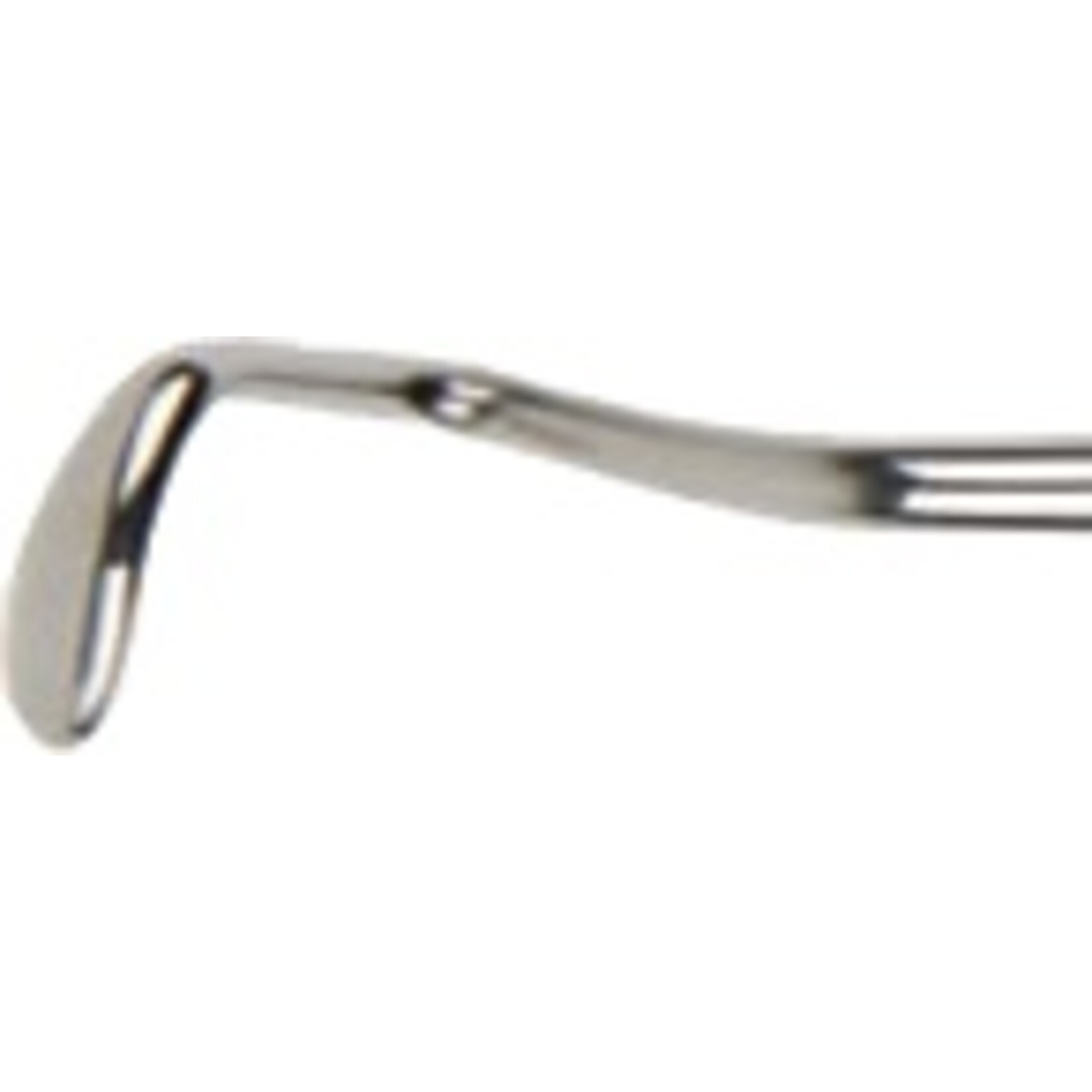

Sinus curette short	Lateral	Triple-angled tip, 9 mm	166 mm	OSCS

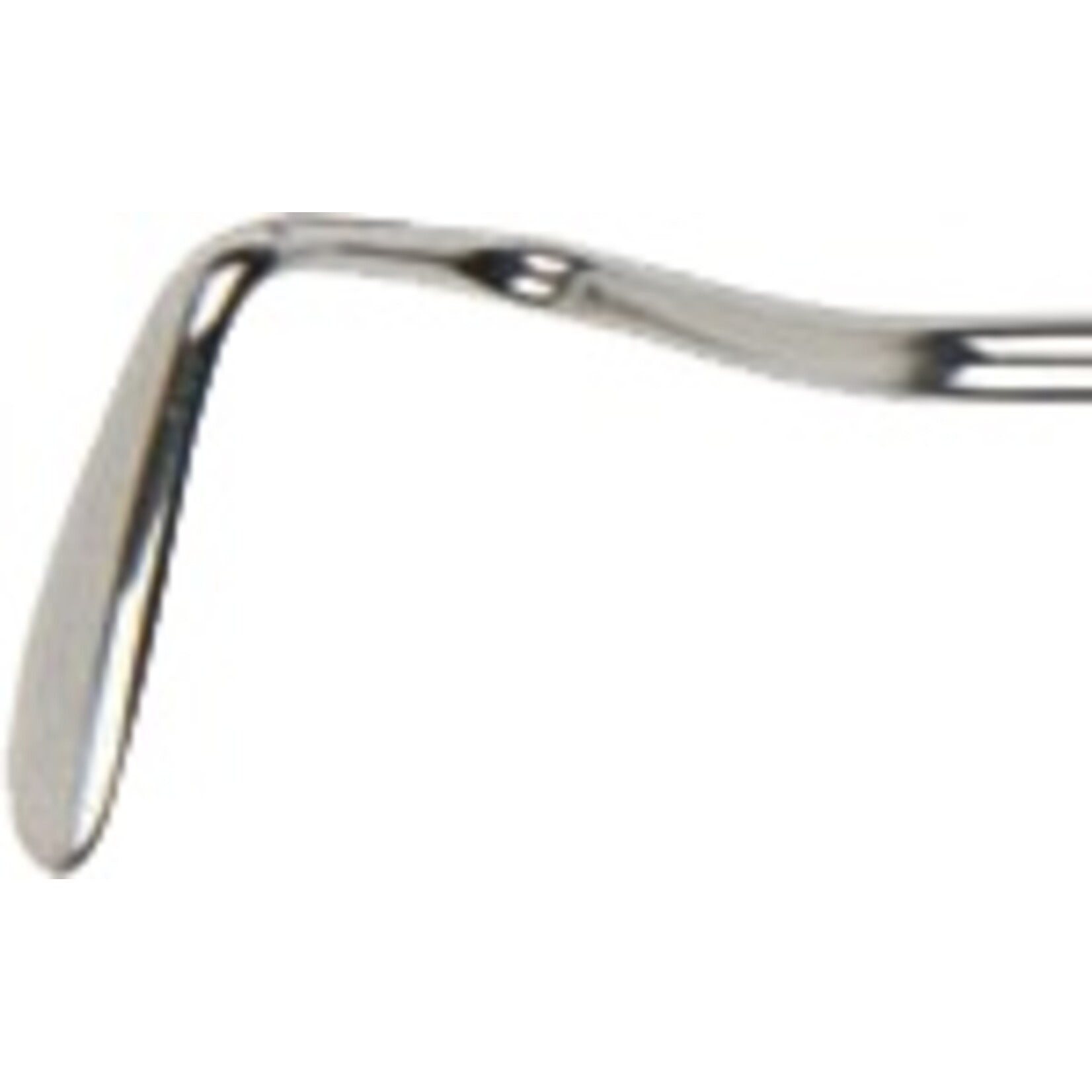

Sinus curette long	Lateral	Triple-angled tip, 15 mm	169 mm	OSCL
ImplAg Sinus Set	Lateral	3 double-ended instruments in sterilisation cassette	—	Set

CLASSIC SINUS FLOOR ELEVATION

The right instrument for every approach

Crestal approach (internal sinus lift): The sinus osteotomes with concave working tip and stop are used for minimally invasive sinus floor elevation according to the Summers technique. The bone is condensed step by step and the sinus floor is lifted in a controlled manner – suitable for compensating moderate vertical bone deficits in the maxilla with sufficient residual bone height. The bayonet shape makes access easier in the posterior region.

Lateral approach (external sinus lift): After preparing the bony window, the membrane separator initially detaches the Schneiderian membrane from the window margin. The Freer elevator and sinus curettes then gently lift the membrane from the sinus floor – the triple-angled tips reach in every direction, the long version also deeper areas. The membrane elevator can also be used to place bone substitute material.

FOR CLINICIANS

Benefits at a glance

All hand instruments for crestal and lateral sinus lift at a glance
Osteotomes with stop for controlled penetration depth, straight or bayonet
Graduated diameters from Ø 3.0 to 5.0 mm to match implant site preparation
Triple-angled curettes in two lengths for hard-to-reach areas
Gentle detachment of the Schneiderian membrane with the membrane separator
Compact set in a sterilisation cassette – space-saving, organised, ready for reprocessing

Note: The instruments are supplied non-sterile and must be cleaned, disinfected and sterilised before first use. The choice of technique depends on residual bone height and the clinical situation. The manufacturer's information is authoritative.
