  • Surgident Implant and Screw Remover Kit – Remove Implants and Screws

Surgident Implant and Screw Remover Kit – Remove Implants and Screws

€1.389,00 €1.149,00 *
* Excl. tax Excl. Shipping costs

Surgident kit for removing failed implants by reverse torque and fractured prosthetic screws: fixture removers M1.6–M2.5, drills Ø 0.8/1.3 mm, 7 guides for common connections. 24 parts.

COMPLICATION MANAGEMENT · SURGIDENT
Surgident Implant and Screw Remover Kit
One kit for two emergencies: failed implants are unscrewed via their internal thread instead of being drilled out, and fractured prosthetic screws are removed via matching guides. Seven guides cover the common implant connections.
IMPLANT
fixture remover
M1.6 · 1.8 · 2.0 · 2.5
SCREW
drills Ø 0.8 · 1.3
remover, tap, reverse
GUIDES
7 connections
internal, external, tri-lobe
CONTENTS
24 parts
with wrench and adapters
STERILISATION
up to 175 °C
per manufacturer
EXPLANTATION WITHOUT TREPHINE
Unscrew instead of drilling out

When an implant has to be removed, a trephine always costs surrounding bone. The fixture remover takes the gentler route: it is screwed into the implant's internal thread and wedges itself when turned counterclockwise. With the wrench, the implant is then released from the bone by reverse torque – the bony walls are largely preserved.

For fractured prosthetic screws, the kit contains drills and guides that centre on the fragment and unscrew it without damaging the internal thread.

▶ More in the video: Using the fixture remover and screw removal step by step.

Video: Surgident implant and screw remover kit
TWO APPLICATIONS
Implant or screw

FIXTURE REMOVER
Remove implant
Fixture remover matching the implant's internal thread.
  • sizes M1.6 · M1.8 · M2.0 · M2.5
  • reverse torque with wrench
  • bone-sparing alternative to the trephine
SCREW REMOVER
Remove screw
Remover, tap and reverse drills via the matching guide.
  • drills Ø 0.8 and 1.3 mm
  • guide centred on the fragment
  • internal thread preserved
CONTENTS
What the kit contains
24 parts according to the manufacturer:
Component Versions Quantity
Fixture remover 1.6 · 1.8 · 2.0 · 2.5 mm 4
Remover drill Ø 0.8 · 1.3 mm 2
Tap drill Ø 0.8 · 1.3 mm 2
Reverse drill Ø 0.8 · 1.3 mm 2
Guides see below 7
Finger knobs latch-type · square 4 × 4 mm 2
Adapters square to latch · square extension 2
Tools flat tip driver · guide holder · wrench 3
GUIDES
For which connection?
The guide must match the implant connection:
Guide Connection Examples
External mini external hex, narrow narrow platforms
External regular external hex, standard Brånemark type
Octa internal internal octagon tissue-level type
Internal hex internal hex many systems
3.7 / 4.1 TSV internal hex TSV Tapered Screw-Vent type
Tri-lobe tri-channel Replace type
Sub narrow narrow internal connection narrow implants
Examples for orientation only; brand names belong to their respective owners. Determine the implant system before the procedure.
WORKFLOW
Unscrewing the implant

1. Determine implant system and thread size (implant card, radiograph).
2. Remove prosthetics and abutment screw, clean the internal thread.
3. Turn the matching fixture remover counterclockwise into the internal thread until it wedges.
4. Release and unscrew the implant with the wrench under controlled reverse torque.
5. Inspect and curette the socket and treat as indicated.

Matching products: Tissue and trephine set →
Note: For use by trained dental professionals only. Very firmly osseointegrated implants may additionally require a trephine. Clean in an ultrasonic bath, do not sterilise above 175 °C. Use according to the manufacturer's instructions.

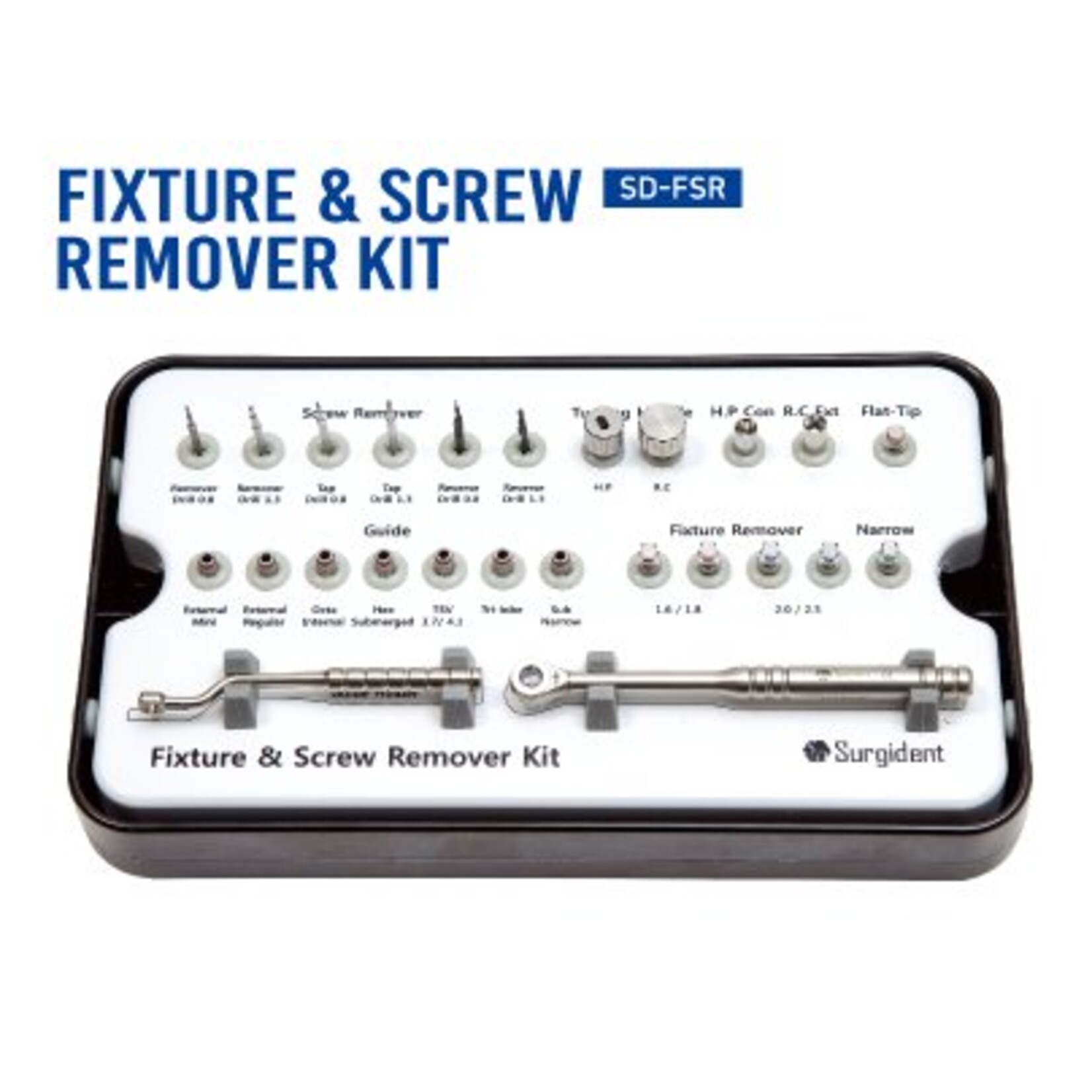

Surgident implant and screw remover kit – overview of components
