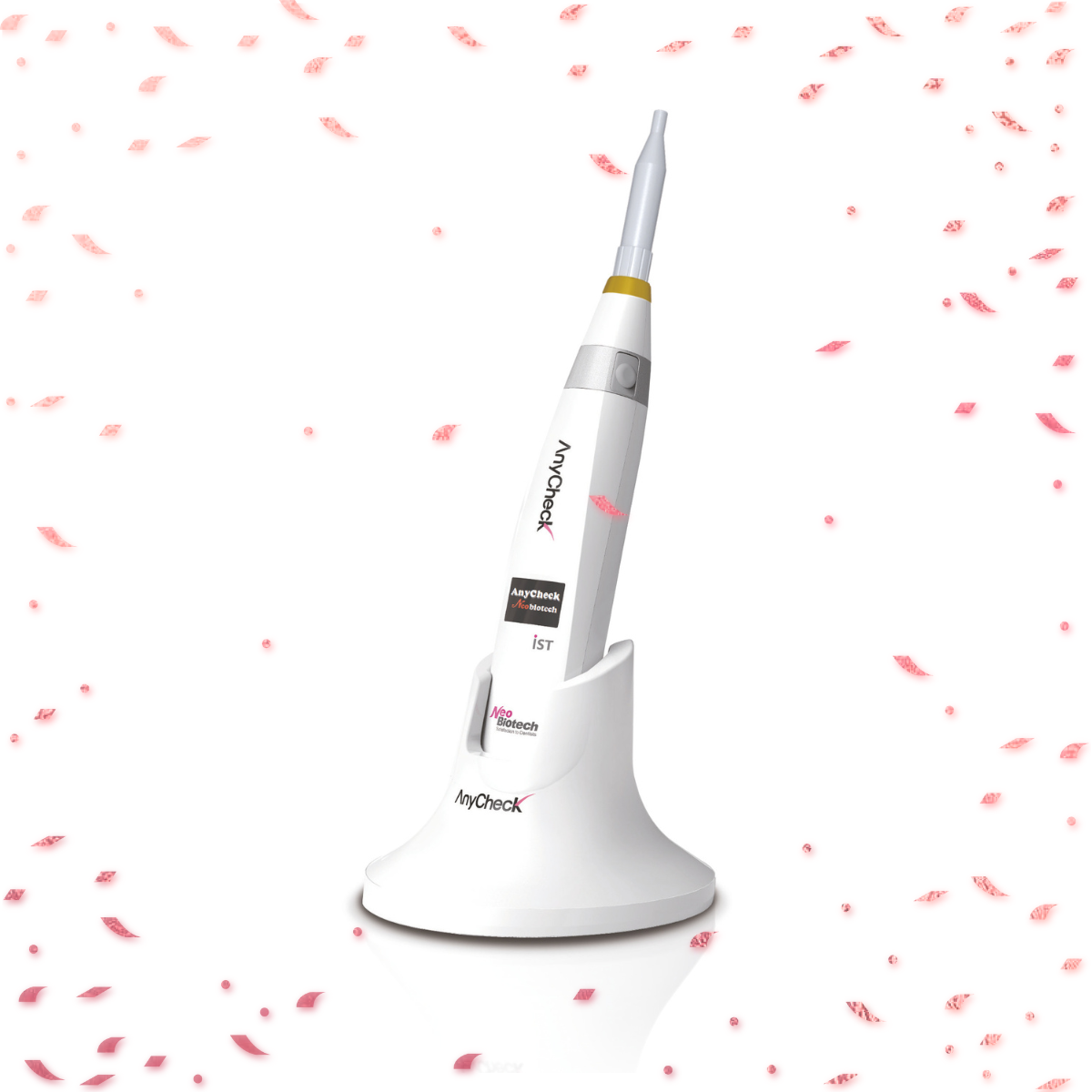

AnyCheck Implant Stability Meter
Compact device for assessing implant stability using a tapping motion. Measurement is taken directly via the healing abutment without removing it. The result is displayed as an IST value from 30 to 85.
MEASUREMENT METHOD
Tapping motion
Tapping-Motion
MEASUREMENT RANGE
IST 30–85
Initial Stability Test
MEASUREMENT TIME
< 3 Sekunden
up to 6 tapping impulses
MEASUREMENT ANGLE
0–30° downward
with angle control
APPLICATION
On the healing abutment
without removal
MEASURE WITHOUT CHANGING THE ABUTMENT
Assess stability without disturbing healing
AnyCheck measures the stiffness of the bone–implant interface by applying a light tapping impulse to the healing abutment. Since no measuring attachment needs to be screwed in, measurements can be taken immediately after insertion and at each follow-up visit. If osseointegration is weak, the device automatically stops after two tapping impulses. The result helps inform the decision on the appropriate timing of prosthetic restoration.
IMPLANT COMPATIBILITY
Also suitable for zirconia implants
According to the manufacturer, AnyCheck can also be used to assess the stability of zirconia implants. Measurement is taken directly on the implant or an existing component; no SmartPeg is required. Please follow the instructions for use and consider the result as part of the overall clinical assessment.
UNDERSTANDING THE MEASUREMENTS
IST Value & Color Display
The lower the IST value, the lower the degree of osseointegration. Guidance values provided by the manufacturer.
| Display |
IST-Wert |
Manufacturer guidance |
| Red |
30–59 |
Low stability – consider extending the healing period and measuring again |
| Orange |
60–64 |
From 60: bridge restoration recommended by the manufacturer |
| Green |
65–85 |
From 70: single-tooth loading may be possible according to the manufacturer |
PRACTICE TIP
Correction by healing abutment height
The IST value is based on a 4 mm healing abutment. For other heights, adjust the displayed value as follows:
| Height |
1 mm |
2 mm |
3 mm |
4 mm |
5 mm |
6 mm |
7 mm |
| IST correction |
−6 |
−4 |
−2 |
±0 |
+2 |
+4 |
+6 |
APPLICATION
How to take a measurement
1. Switch on the device using the button.

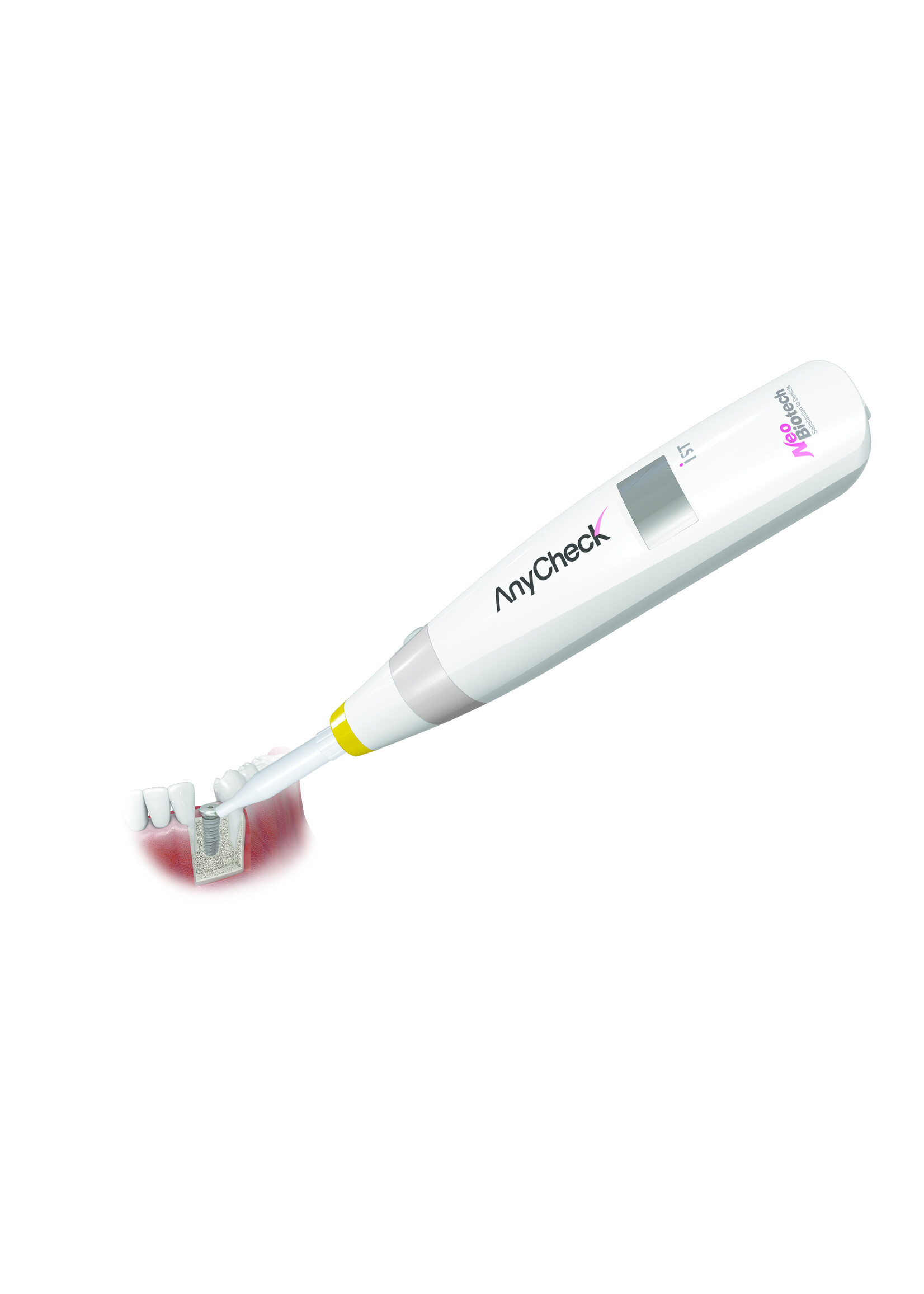

2. Gently place the tip of the tapping rod against the upper area of the healing abutment; do not press.
3. Keep the contact angle between 0° and 30° downward. Outside this range, a beep sounds and measurement is disabled.
4. Hold the device steady, press START, and read the IST value on the display.
Excessive pressure or too great a distance from the healing abutment may result in inaccurate measurements. The short measurement time can save considerable chair time, especially when several implants are being assessed.
FOR CLINICIANS
Benefits at a glance
- Measure via the healing abutment – no removal or measuring attachment
- Can be used immediately after insertion and at every follow-up
- Gentle tapping impulse for non-invasive measurement
- Measurement takes under 3 seconds, ideal for multiple implants
- Farbcodierte IST-Display von 30 bis 85
- Automatic angle control helps reduce measurement errors
- Compact, lightweight handheld device with simple one-button operation
- Helps identify implants with insufficient healing at an early stage
ITEMS INCLUDED
- AnyCheck device
- Charger

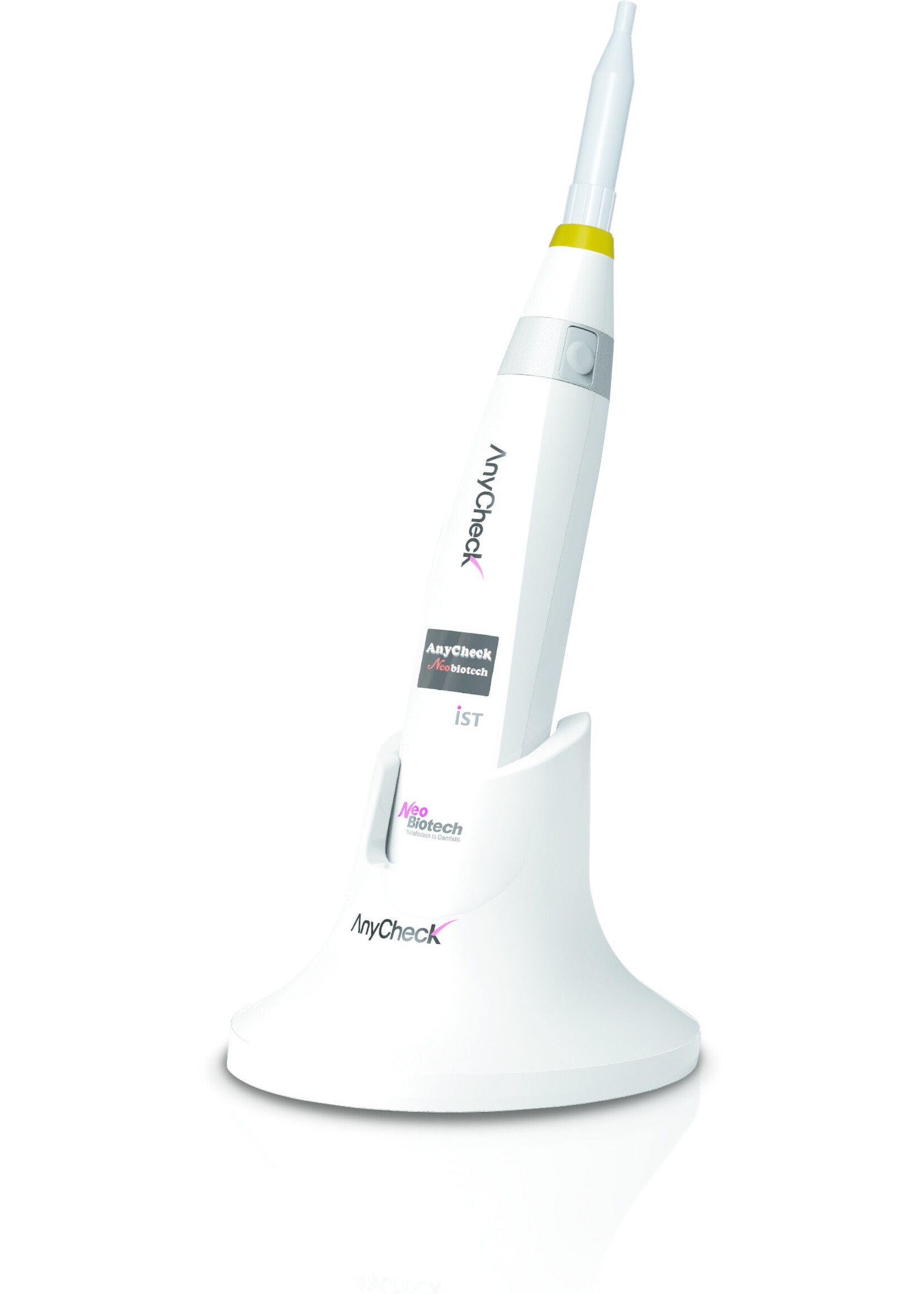

- Stand
- Cleaning brushes
- 10 barrier sleeves (hygiene covers)
- Target Bar (test instrument)
- Instructions for use
ACCESSORIES AVAILABLE TO REORDER

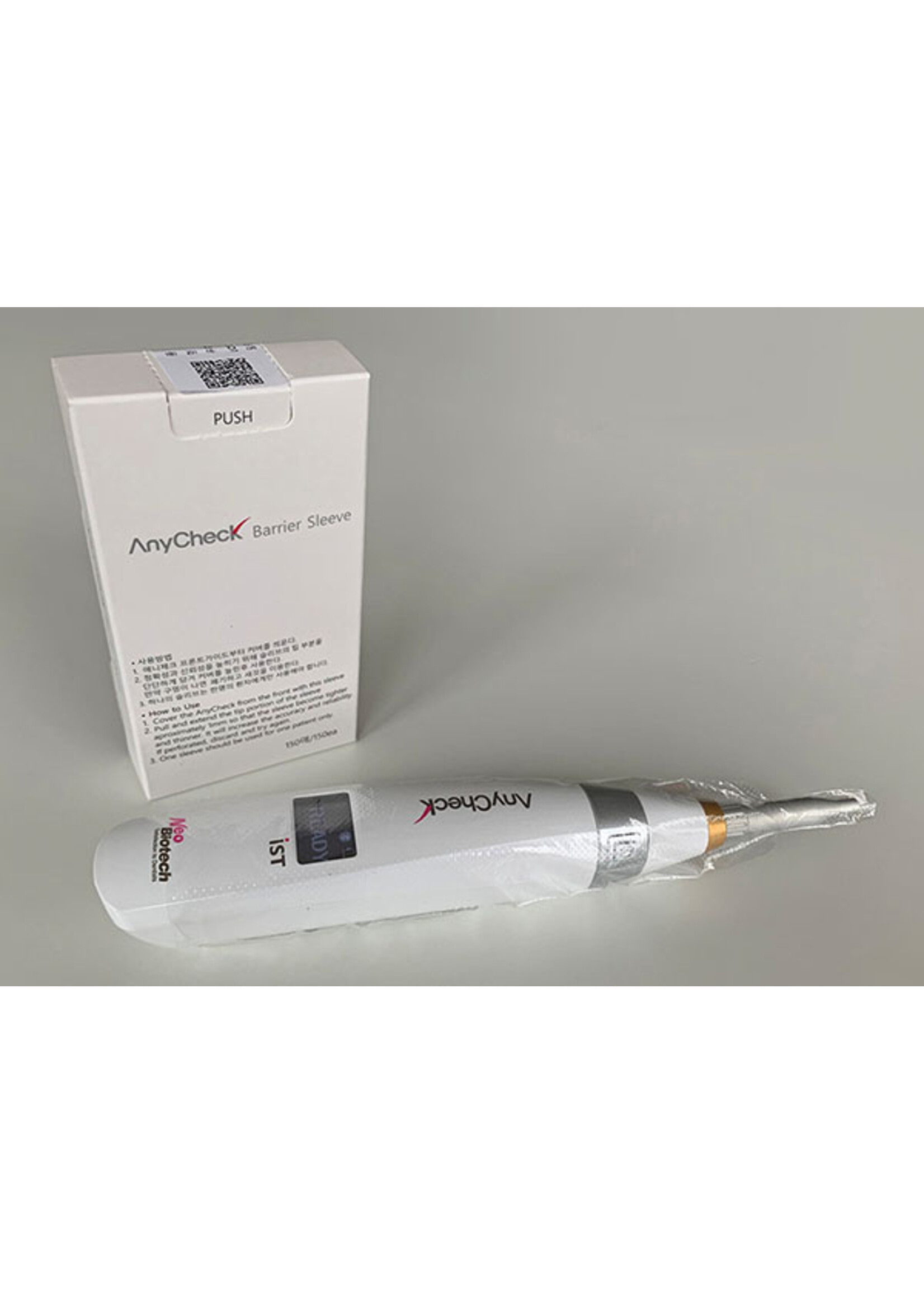

Barrier Sleeves, pack of 150
Non-sterile, single-use protective sleeves for patient hygiene.
Target Bar
Test instrument for checking measurement values (already included with the device).
Manufacturer notice: IST values are guidance values provided by the manufacturer and do not replace an overall clinical assessment. Loading time and type of restoration should be determined based on the individual clinical situation and the current instructions for use. Manufacturer: Neobiotech Co., Ltd., Republic of Korea · CE marked.
