PROSTHETICS · BALL ATTACHMENTS

Dalbo®-PLUS Retention

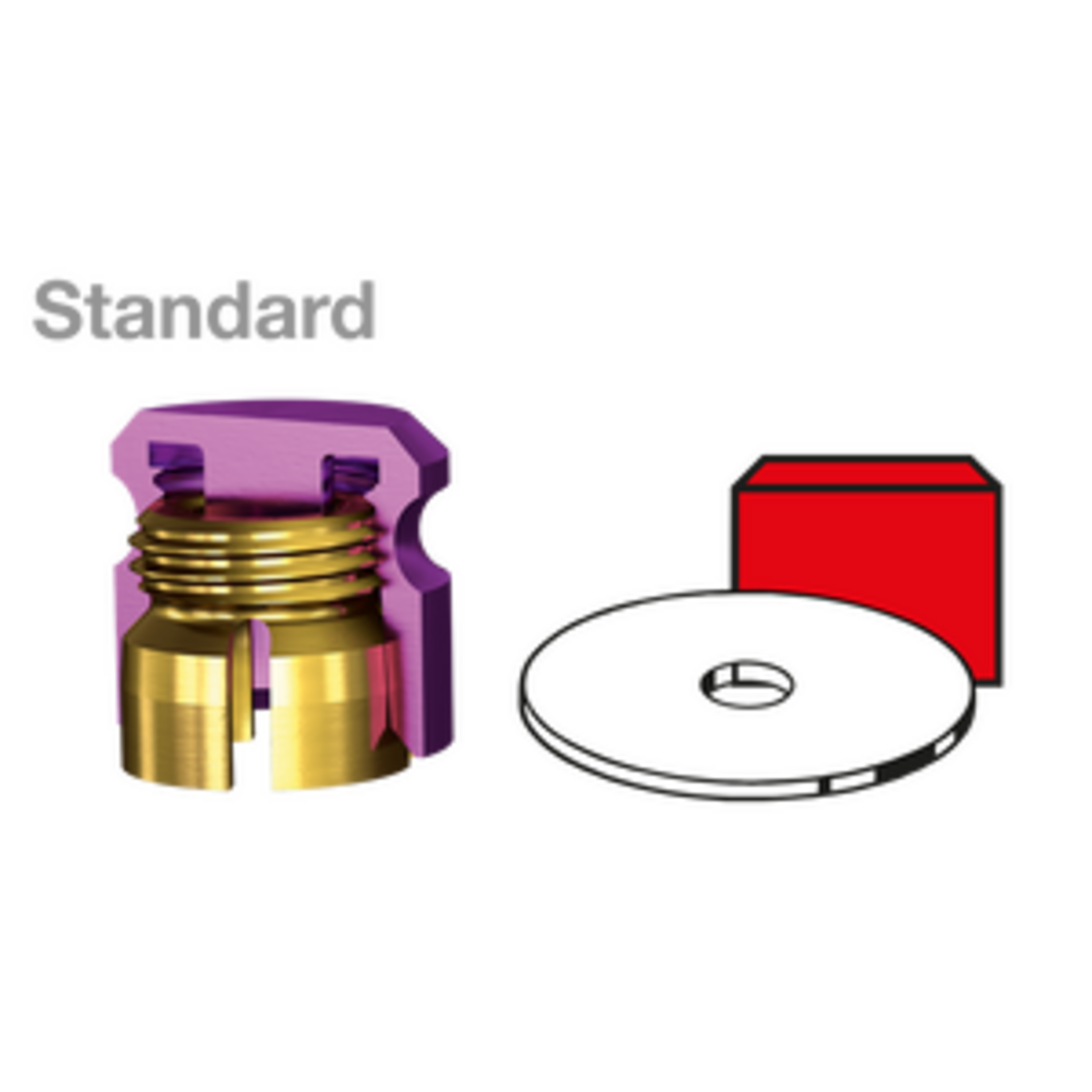

The Dalbo®-PLUS matrix from Cendres+Métaux for ball anchors with Ø 2.25 mm. A titanium housing with a screw-in precious-metal lamella retention insert provides secure, finely adjustable retention for overdentures – even on older or worn ball heads.

DALBO-PLUS

Retention that can be readjusted

Divergences of non-parallel implants are compensated up to 40°. The flexible lamellae of the retention insert open when the denture is seated and slide gently over the ball. Retention can be increased or reduced in fine steps with the activator. When the insert is worn, it is simply unscrewed and replaced – the matrix stays in the denture.

INDICATIONS

When to use Dalbo-PLUS?



COMPATIBILITY

For which implants?

The Dalbo-PLUS matrix fits any ball head with Ø 2.25 mm – the standard size of many implant systems. We supply matching original Dalbo ball abutments on request for:

Implant system	Platform	Gingival heights
Osstem	US Regular 4.1 · TS Mini 3.5 · TS Regular 4.0–7.0	3 · 4 · 5 mm
Osstem	SS Regular 4.8	1 · 2 · 3 mm
Straumann	Tissue Level RN 4.8	1 · 2 · 3 mm
Straumann	Bone Level NC 3.3 · RC 4.1/4.8	3 · 4 · 5 mm
Nobel Biocare	Replace Select NP 3.5 · RP 4.3	1 · 2 · 3 mm
Nobel Biocare	Active NP 3.5 · RP 4.3/5.0 · Brånemark RP 4.0	3 · 4 · 5 mm
Astra Tech	OsseoSpeed 3.5/4.0 · 4.5/5.0 · EV 3.6 · 4.2 · 4.8	3 · 4 · 5 mm
Dentsply	Ankylos C 3.5 · 4.5 · 5.5 · 7.0	3 · 4 · 5 mm
Camlog	Camlog 3.8 · 4.3	1 · 2 · 3 mm
Camlog	Conelog 3.8/4.3	3 · 4 · 5 mm
Zimmer	Tapered Screw-Vent 3.5 · 4.5	3 · 4 · 5 mm
MIS	Seven 3.5 · 4.5	3 · 4 · 5 mm
BioHorizons	Internal 3.5 · 4.5	3 · 4 · 5 mm
Sweden & Martina	Premium Kohno 3.3 · 3.8 · 4.25 · 5.0/6.0	3 · 4 · 5 mm
Biomet 3i	Certain / Osseotite NT (Dalbo Certain Abutment)	2 · 4 · 6 mm

Source: Cendres+Métaux product catalogue. Further systems on request. Check ball heads from other manufacturers for Ø 2.25 mm before use.

ADJUSTING RETENTION

Activate or reduce retention

1. Remove and clean the denture.
2. Insert the activator into the lamella insert.
3. Turning clockwise increases retention – by about 200 g per quarter turn, up to approx. 2,200 g after one and a half turns at most.
4. Insert the denture, check retention and readjust if necessary.

ORDERING

Variants

Available in the drop-down above or on request:

Item	Version	Order no.
Dalbo-PLUS	standard	Dalbo Plus
Dalbo-PLUS complete anchor	matrix + patrix	055 752 · on request
Dalbo-PLUS elliptic complete anchor	recommended for implants	055 890 · on request
Lamella retention inserts, activator	spare parts	on request

Order numbers according to Cendres+Métaux.

ALTERNATIVE

Prefer the Locator principle?

If you prefer Locator-compatible attachments instead of ball anchors, we offer Dualock for many implant systems.

LOCATOR® is a registered trademark of Zest Anchors, LLC.
