INNO Cemented Abutment

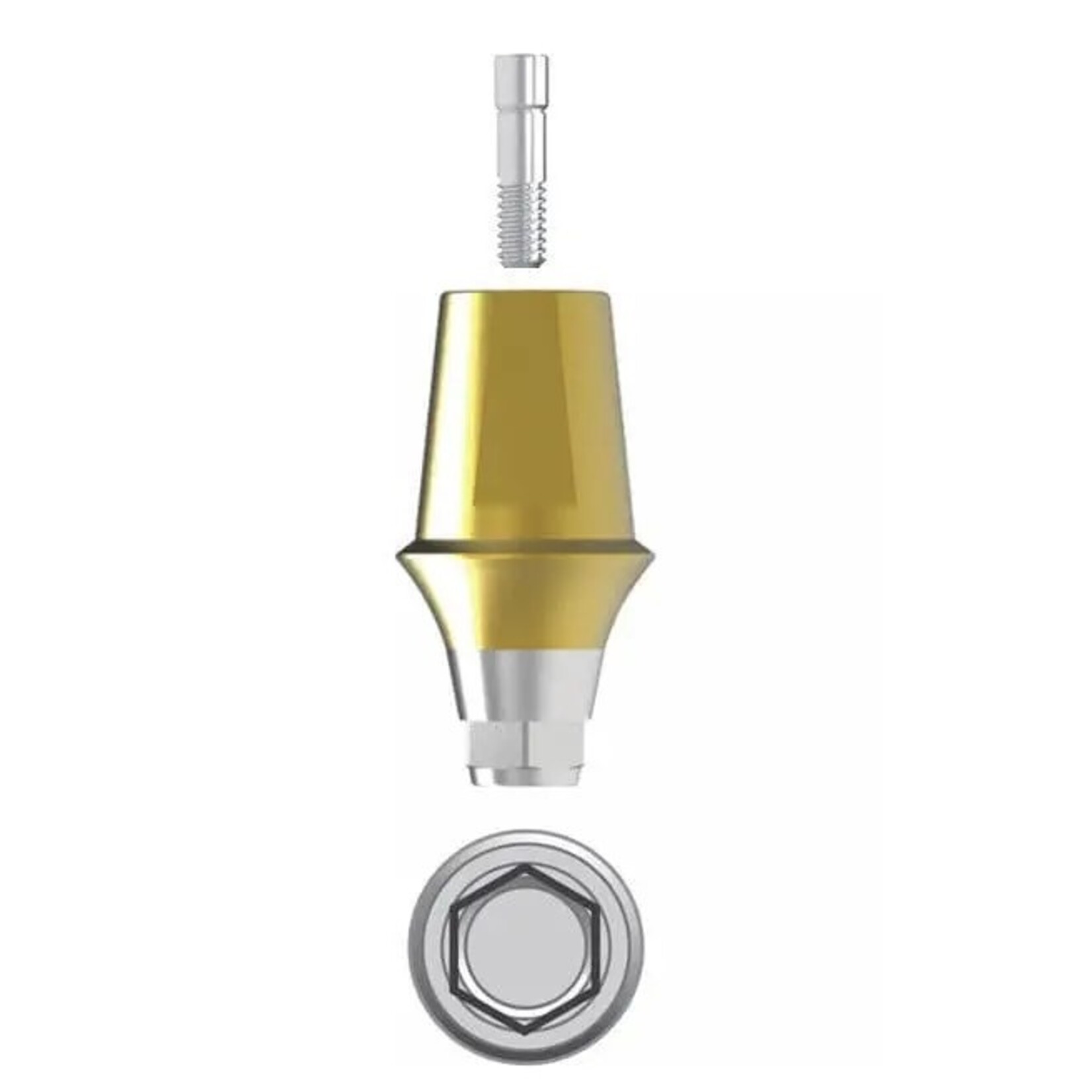

Straight stock abutments for cement-retained and screw-cement-retained crowns and bridges on Cowellmedi INNO and INNO Sub Narrow. Gold-coloured, anti-rotational and available in five gingival heights and two post heights.

CEMENTED ABUTMENT

Classic, proven, customisable

The abutment is screwed into the implant with the abutment screw, and the crown is cemented onto it. The impression is taken at implant level with impression copings or digitally with a scan body – the lab can then prepare the abutment individually if needed. A flat surface secures the crown against rotation, and the gold-coloured surface supports natural-looking ceramics.

ORDER NUMBERS

Abutments by gingival and post height

Choose the gingival height according to soft-tissue thickness and the post height according to the available space.

Cemented abutment · narrow and standard

Gingival height	Post height	Ø 4.5 narrow	Ø 4.5	Ø 5.5	Ø 6.5
1 mm	5.5 mm	SCH4515N	2SCH4515	2SCH5515	2SCH6515
1 mm	7.0 mm	SCH4517N	2SCH4517	2SCH5517	2SCH6517
2 mm	5.5 mm	SCH4525N	2SCH4525	2SCH5525	2SCH6525
2 mm	7.0 mm	SCH4527N	2SCH4527	2SCH5527	2SCH6527
3 mm	5.5 mm	SCH4535N	2SCH4535	2SCH5535	2SCH6535
3 mm	7.0 mm	SCH4537N	2SCH4537	2SCH5537	2SCH6537
4 mm	5.5 mm	SCH4545N	2SCH4545	2SCH5545	2SCH6545
4 mm	7.0 mm	SCH4547N	2SCH4547	2SCH5547	2SCH6547
5 mm	5.5 mm	SCH4555N	2SCH4555	2SCH5555	2SCH6555
5 mm	7.0 mm	SCH4557N	2SCH4557	2SCH5557	2SCH6557

Straight abutment narrow Ø 3.5

Gingival height	Post height	Order no.
0.5 mm	8.0 mm	SR308
1.0 mm	8.0 mm	SR318
2.0 mm	8.0 mm	SR328
3.0 mm	8.0 mm	SR338
4.0 mm	8.0 mm	SR348

Gingival height = cuff from the implant shoulder, post height = cementation post above it. Narrow abutments fit INNO Sub Narrow, standard fits INNO.

ACCESSORIES

Screws and drivers

One abutment screw is included with each abutment – replacement screws separately.

Accessory	Use	Order no.
Titanium abutment screw narrow	for cemented abutment narrow	SSHR100N
Titanium abutment screw standard	for cemented abutment standard	2SSHR200
Driver narrow	for the straight abutment narrow Ø 3.5	KRR01

FURTHER VERSIONS

From the Cowellmedi range on request

For special situations we also supply:

Version	Use	Order no.
Post height 4.0 mm	for very limited space	2SCH4514 ff.
Non-hex version	for bridges	2SCN…
Angled abutment 15° / 25°	for inclined implants	2SAH… · 2SAN…
Temporary abutment	for provisionals, screw-cement-retained	2STHA45 · 2STNA45
Easy temporary abutment	screw-retained chairside provisional	2STHA45C · 2STHA55C

According to the manufacturer, temporary abutments are tightened to 20 Ncm.

WORKFLOW

From abutment to cemented crown

1. Impression at implant level with impression copings or scan body.
2. In the lab, select the matching abutment, prepare it if needed and fabricate the crown.
3. Remove the healing abutment, insert the abutment with abutment screw and tighten to 30 Ncm (standard).
4. Seal the screw channel, cement the crown and remove all excess cement.
