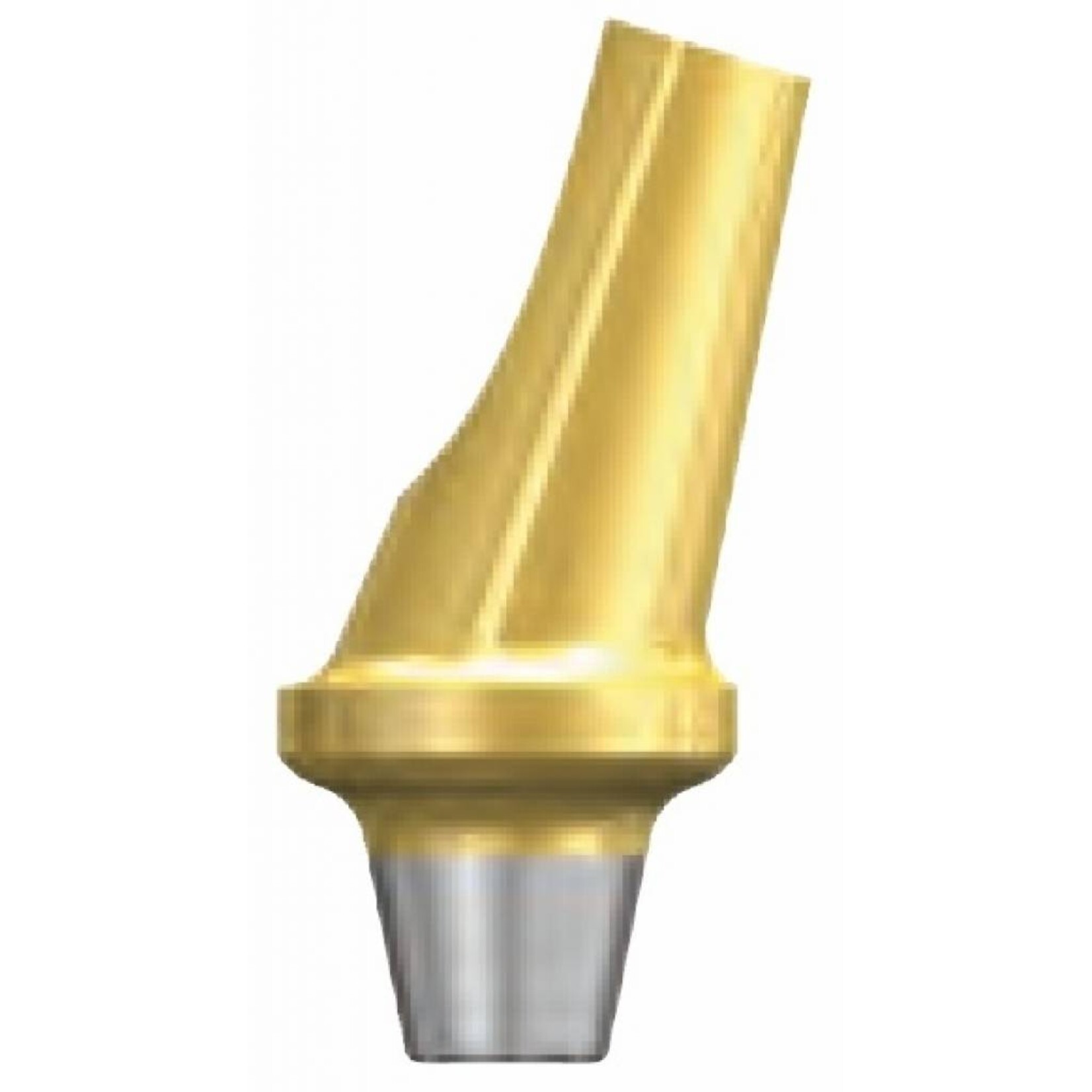

Osstem Angled Abutment 17°

Angled titanium abutment for cement-retained crowns and bridges on Osstem TS implants. Compensates unfavourable implant axes – according to Osstem up to 23° without grinding. With EbonyGold screw.

HEX A OR HEX B

Aligning the angle correctly

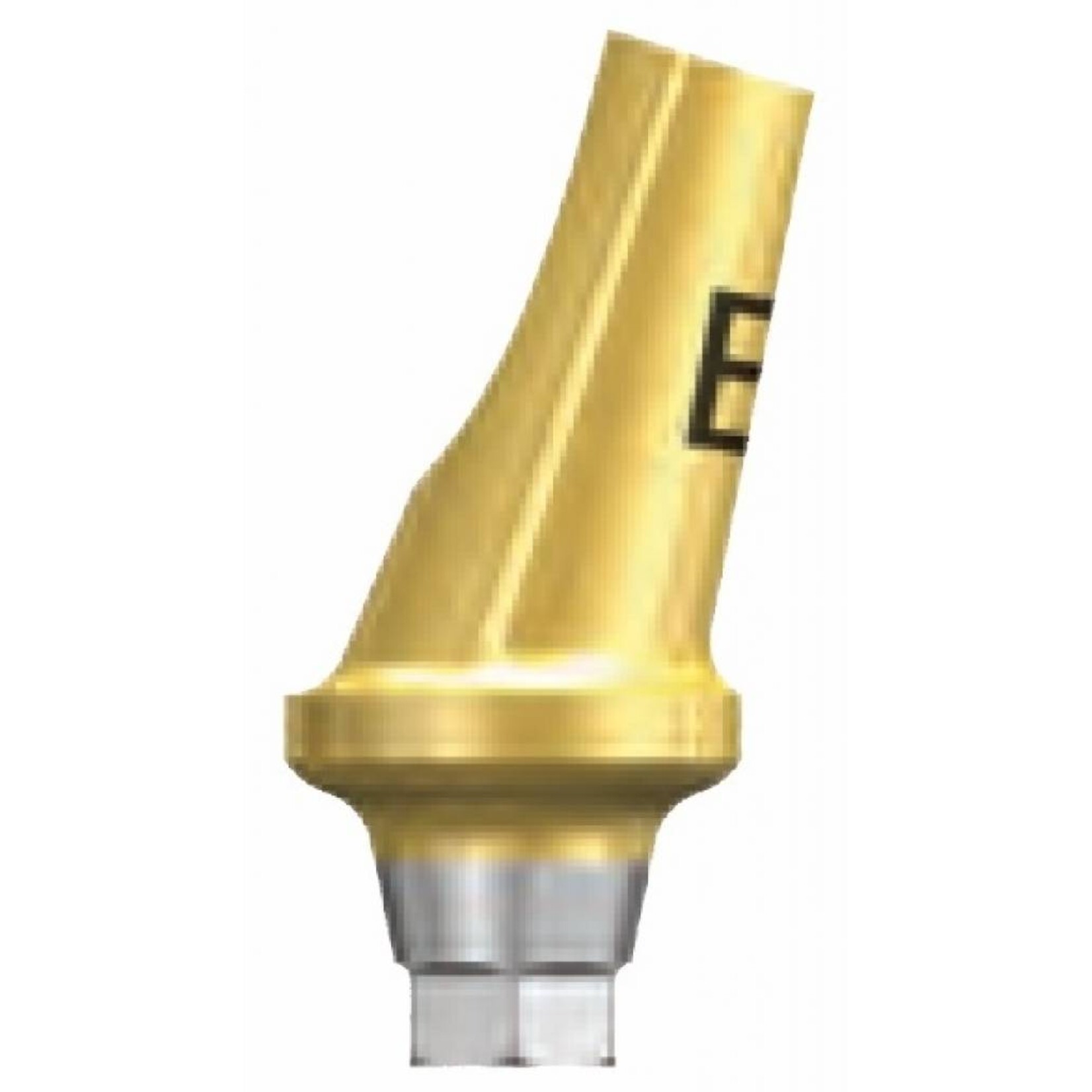

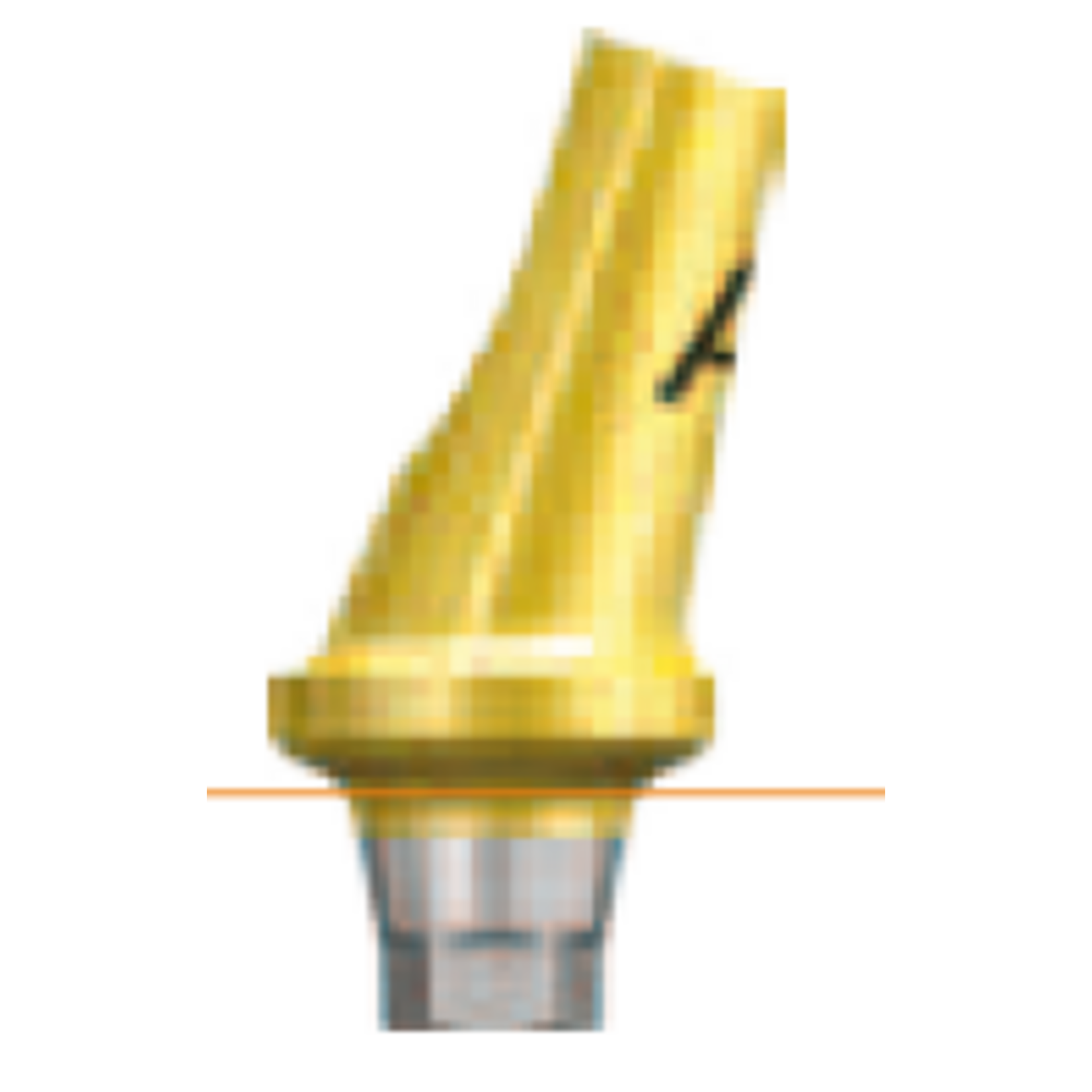

With hex A and hex B the angle is positioned differently relative to the hex of the connection. Together both types double the possible orientations – so the axis can be corrected even when the implant's hex position is unfavourable. Non-hex is intended for splinted bridges without anti-rotation. The selector (GSAAS…) helps determine type and orientation on the model beforehand.

SIZES & ARTICLE NUMBERS

Emergence diameter and gingival height

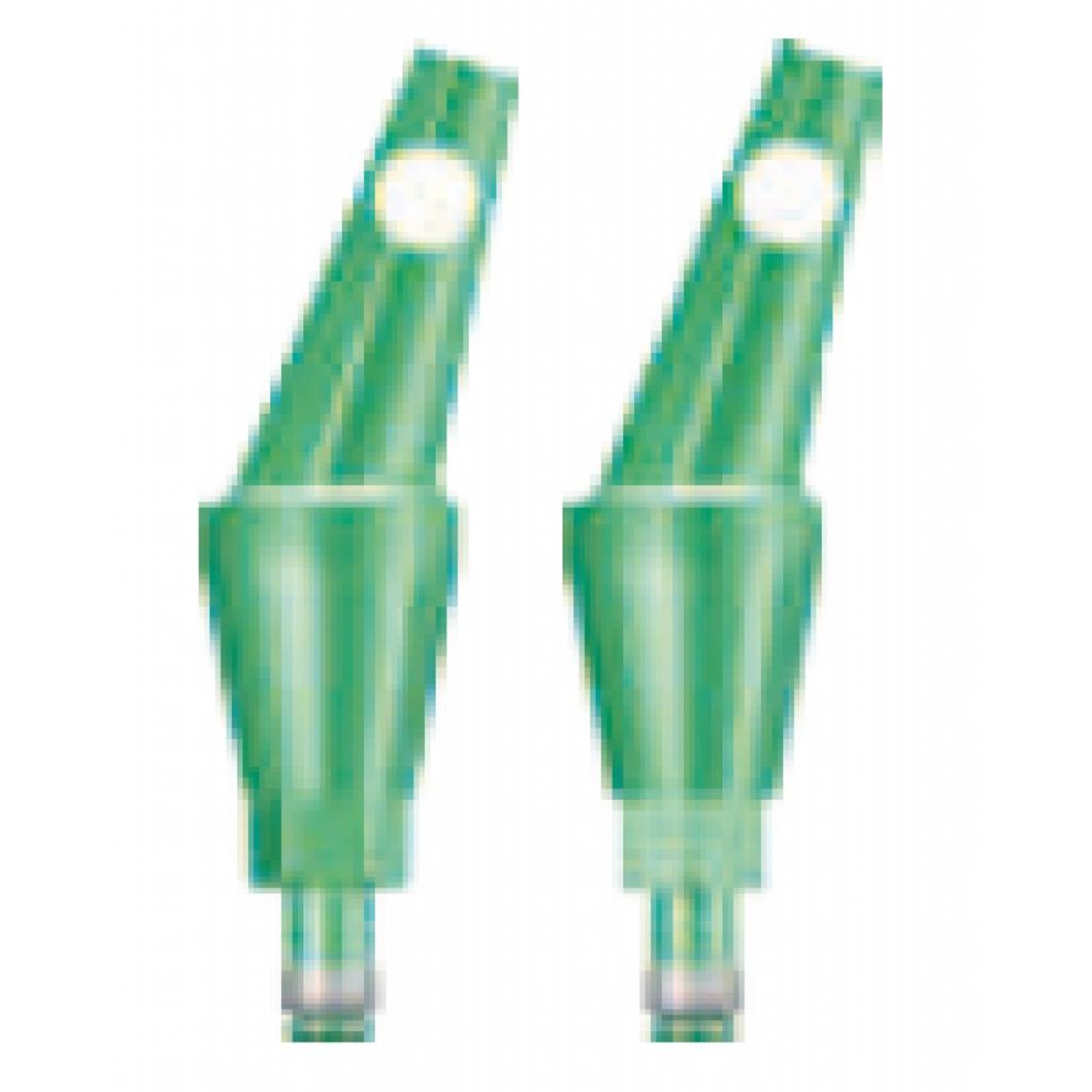

Mini yellow, regular green. A = hex A, B = hex B, N = non-hex. Please select in the selection field above.

GH / type	Mini Ø 4.5	Ø 4.5	Ø 5.0	Ø 5.5	Ø 6.0
2.0 mm · A	GSAA4520MA	GSAA4520A	GSAA5020A	GSAA5520A	GSAA6020A
2.0 mm · B	GSAA4520MB	GSAA4520B	GSAA5020B	GSAA5520B	GSAA6020B
2.0 mm · Non-Hex	GSAA4520MN	GSAA4520N	GSAA5020N	GSAA5520N	GSAA6020N
4.0 mm · A	GSAA4540MA	GSAA4540A	GSAA5040A	GSAA5540A	GSAA6040A
4.0 mm · B	GSAA4540MB	GSAA4540B	GSAA5040B	GSAA5540B	GSAA6040B
4.0 mm · Non-Hex	GSAA4540MN	GSAA4540N	GSAA5040N	GSAA5540N	GSAA6040N

Also available (mini): GSAA4320 / GSAA4340 in A, B and non-hex.

SELECTOR

Try first, then order

Gingival height	Mini	Ø 4.5	Ø 5.5
2.0 mm	GSAAS4320A / B	GSAAS4520A / B	GSAAS5520A / B
4.0 mm	GSAAS4340A / B	GSAAS4540A / B	GSAAS5540A / B

COMPATIBLE ALTERNATIVE · 25°

25° angled abutment – MC, Osstem compatible

When 17° is not enough: 25° angled abutment by the manufacturer MC for the Osstem TS regular platform, incl. titanium screw. Not an original Osstem part – compatibility and use according to the manufacturer MC.

GH / type	Ø 4.5	Ø 5.5	Ø 6.5
1.0 mm · B	AOA4512	AOA5512	AOA6512
1.0 mm · Non-Hex	AON4512	AON5512	AON6512
2.0 mm · B	AOA4522	AOA5522	AOA6522
2.0 mm · Non-Hex	AON4522	AON5522	AON6522
4.0 mm · B	AOA4542	AOA5542	AOA6542
4.0 mm · Non-Hex	AON4542	AON5542	AON6542

B = hex type B, non-hex for splinted bridges. Please select in the selection field above.

• diverging implant axes
• anterior region with labially inclined implants
• cement-retained crowns and bridges

To Osstem prosthetics →
