Osstem TS Impression Copings – Pick-up & Transfer

Osstem TS Impression Copings – Open & Closed Tray

€38,00 *

* Excl. tax Excl. Shipping costs

Impression copings for Osstem TS implants: pick-up (open tray, 11/15 mm) and transfer (closed tray, 11/14 mm), mini and regular, Ø 4.0–6.0 mm, hex or non-hex.

PROSTHETICS · OSSTEM TS

Osstem Impression Copings

Impression copings for Osstem TS implants – pick-up for the open tray and transfer for the closed tray. The profile matches the Osstem healing abutments.

TECHNIQUE

Open & closed

Pick-up / Transfer

PLATFORM

Mini & Regular

Code M / S

CONNECTION

Hex / Non-Hex

Non-hex = suffix N

PROFILE

= healing abutment

Ø 4.0 / 5.0 / 6.0 mm

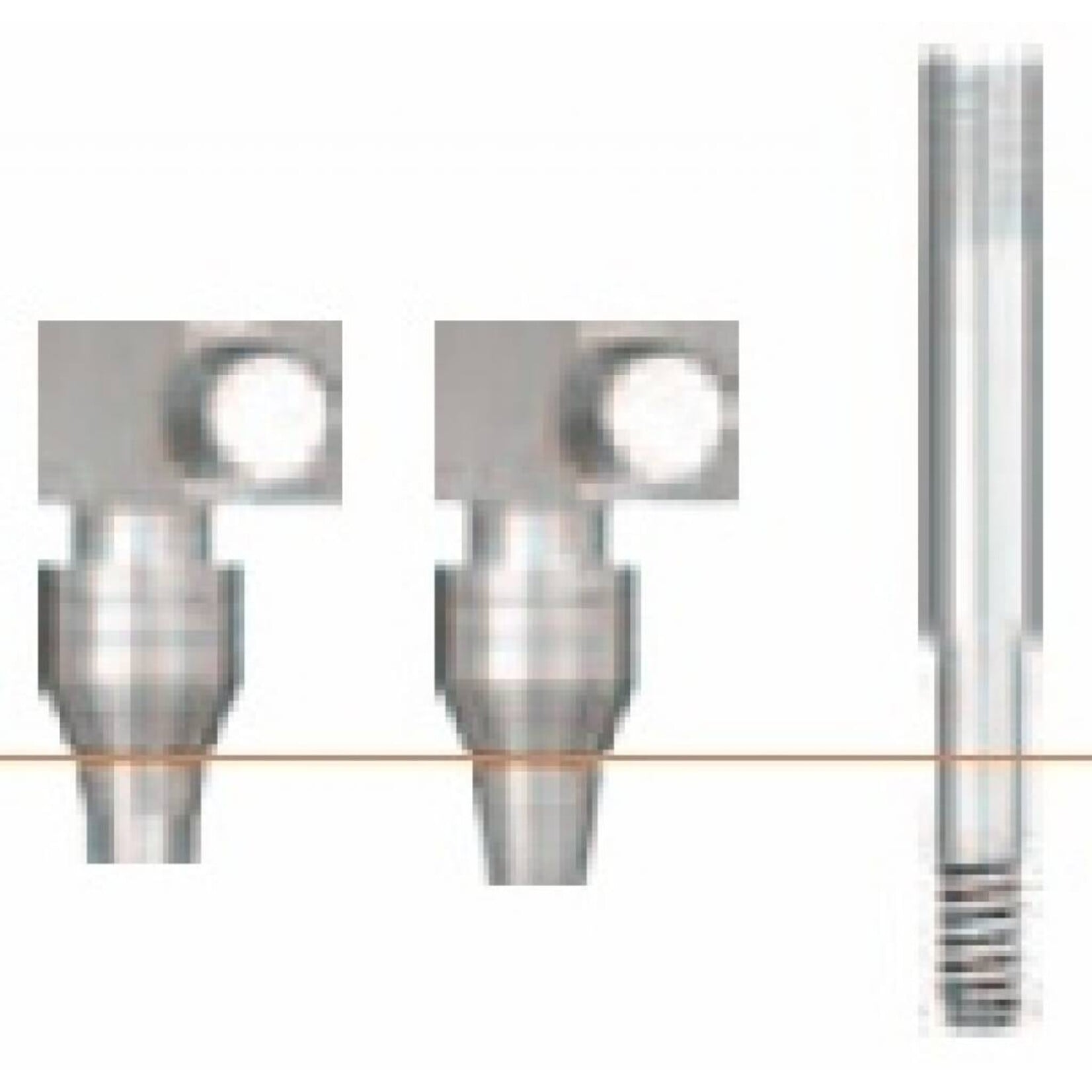

OPEN TRAY

Pick-up impression copings

For the custom tray. Large retention opening, blocking out is usually not required. Lengths 11 and 15 mm.

Length · connection	Mini · Ø 4.0	Regular · Ø 4.0	Regular · Ø 5.0	Regular · Ø 6.0
11 mm · Hex	GSPIM4011	GSPIS4011	GSPIS5011	GSPIS6011
11 mm · Non-Hex	GSPIM4011N	GSPIS4011N	GSPIS5011N	GSPIS6011N
15 mm · Hex	GSPIM4015	GSPIS4015	GSPIS5015	GSPIS6015
15 mm · Non-Hex	GSPIM4015N	GSPIS4015N	GSPIS5015N	GSPIS6015N

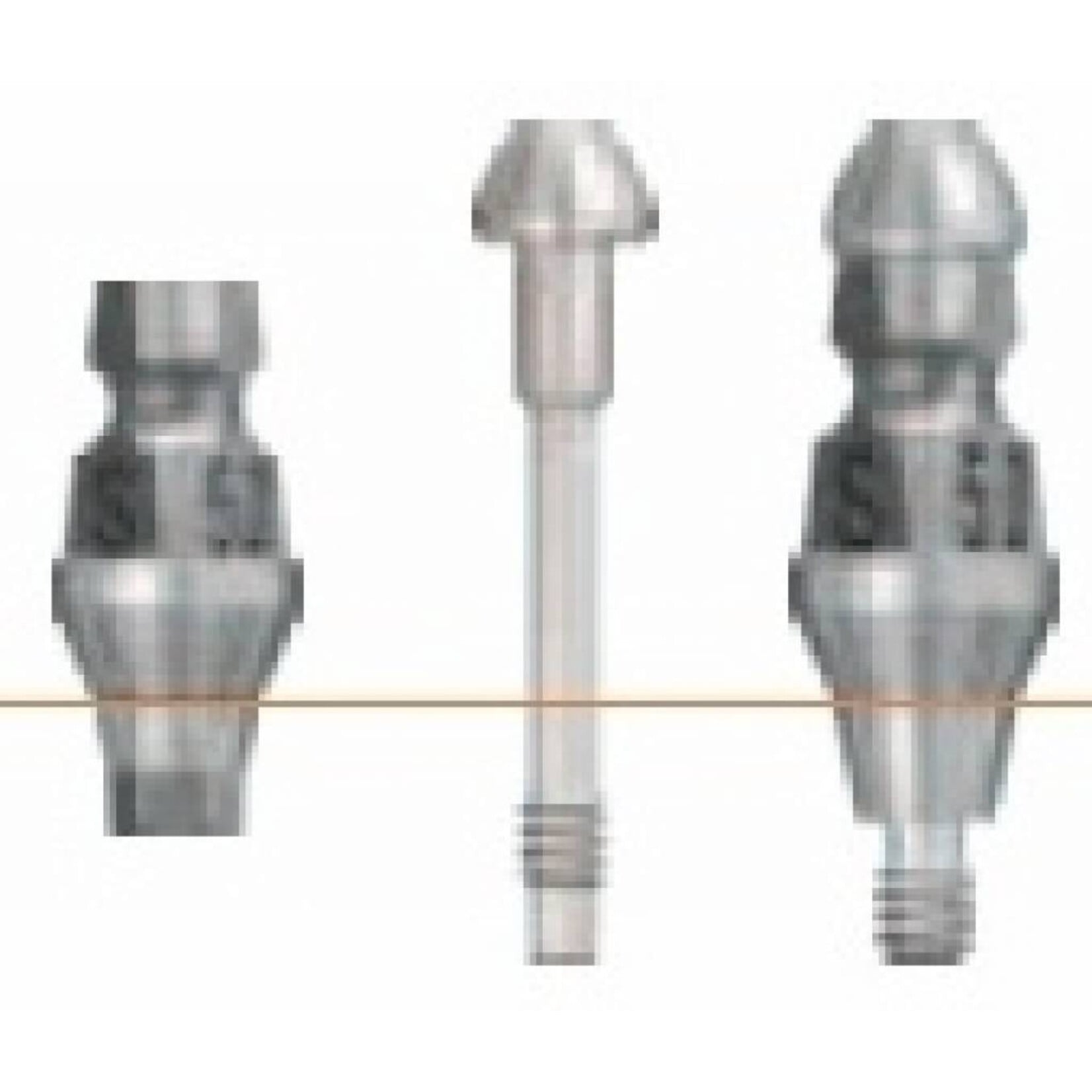

CLOSED TRAY

Transfer impression copings

For the stock tray. Asymmetric head for secure repositioning. Hex two-piece, non-hex one-piece. Lengths 11 and 14 mm.

Length · connection	Mini · Ø 4.0	Regular · Ø 4.0	Regular · Ø 5.0	Regular · Ø 6.0
11 mm · Hex	GSTIM4011	GSTIS4011	GSTIS5011	GSTIS6011
11 mm · Non-Hex	GSTIM4011N	GSTIS4011N	GSTIS5011N	GSTIS6011N
14 mm · Hex	GSTIM4014	GSTIS4014	GSTIS5014	GSTIS6014
14 mm · Non-Hex	GSTIM4014N	GSTIS4014N	GSTIS5014N	GSTIS6014N

CHOOSING CORRECTLY

Choose the diameter to match the healing abutment in place. Hex for single teeth, non-hex (N) for bridges. Mini (M) and regular (S) are not interchangeable. More on platforms: Osstem Prosthetics · General selection guide: Prosthetics

Manufacturer's note: Selection and use according to the current Osstem instructions for use (IFU).
