Osstem Port Abutment – Snap Attachment for Overdentures

Low-profile attachment abutment for implant-retained overdentures in upper and lower jaw. Replaceable inserts in three retention levels, compensation of diverging implants up to 40° – with all parts for practice and lab.

THE PRINCIPLE

Secure retention, easy exchange

The port abutment is screwed firmly onto the implant. The denture holds a metal cap with a plastic insert that snaps onto the abutment. When retention decreases, the practice simply exchanges the insert – the denture stays. The low height leaves room for teeth and acrylic, even with little vertical space. Standard inserts compensate up to 20° per implant, extended inserts up to 40°.

STEP 1 · ABUTMENT

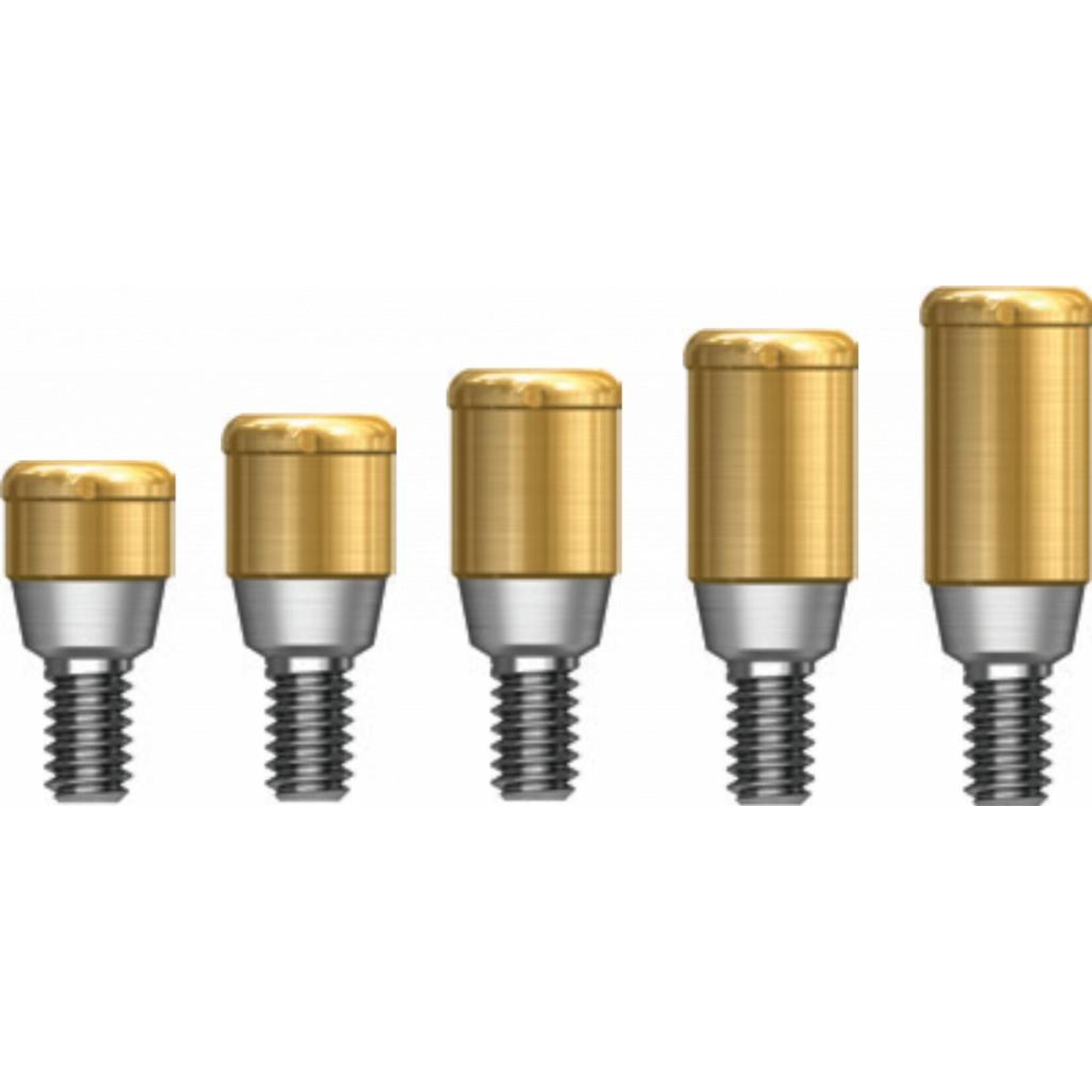

Port abutment

Choose the gingival height so the abutment protrudes approx. 1.5 mm above the mucosa. Mini yellow, regular green.

Gingival height	Mini	Regular
1.0 mm	TSPTA3510M	TSPTA4010R
2.0 mm	TSPTA3520M	TSPTA4020R
3.0 mm	TSPTA3530M	TSPTA4030R
4.0 mm	TSPTA3540M	TSPTA4040R
5.0 mm	TSPTA3550M	TSPTA4050R

STEP 2 · DENTURE

Inserts & caps

Retention in three levels, 4 pieces each. Please select in the selection field above.

Item	Art. no.	Retention	Divergence
Port male kit (processing set)	PTCMK	–	–
Replacement insert low	PTCM06S	approx. 6 N	up to 20°
Replacement insert medium	PTCM12S	approx. 12 N	up to 20°
Replacement insert high	PTCM22S	approx. 22 N	up to 20°
Extended insert low	PTCEM06S	approx. 6 N	20–40°
Extended insert medium	PTCEM12S	approx. 12 N	20–40°

TOOLS

Driver & core tool

For placing the abutment and exchanging the inserts.

Item	Art. no.	Use
Driver short / long	TWLDS · TWLDL	placing the port abutment, 30 Ncm
Core Tool	LCCT	inserting and removing inserts in the denture cap

• overdentures on 2–4 implants
• little vertical space
• diverging implants
