  • Bioconcept Bioconcept BV Temporary Abutment – for Provisional Restorations

Bioconcept BV Temporary Abutment – for Provisional Restorations

€39,00 *

* Excl. tax Excl. Shipping costs

Preparable titanium abutment for temporaries on Bioconcept BV. Hex and non-hex, mini Ø 4.0 / standard Ø 4.5, gingival height 1.0 or 3.0 mm, incl. screw.

PROSTHETICS · BIOCONCEPT BV · TEMPORARY

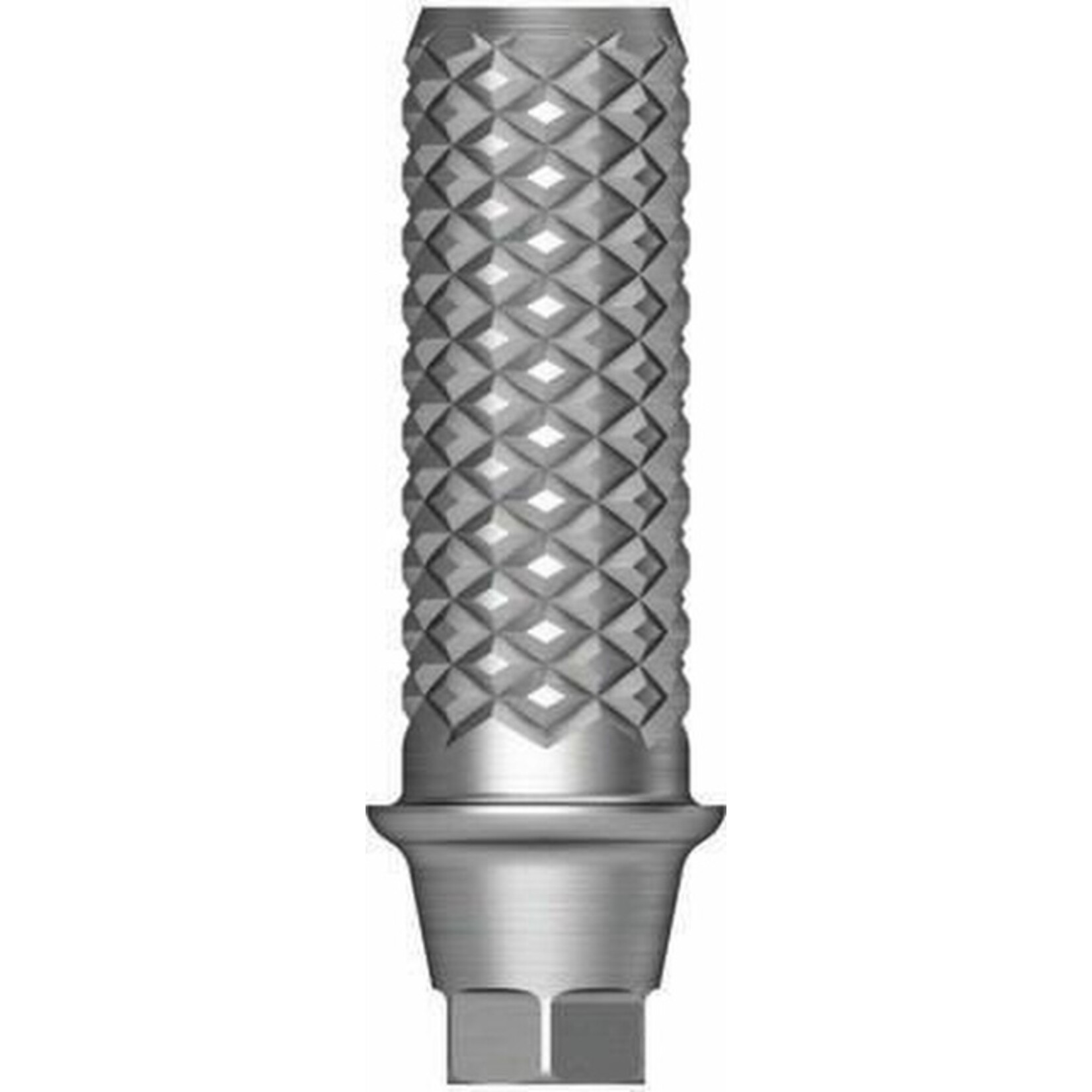

Bioconcept BV Temporary Abutment
Titanium abutment for temporary crowns and bridges on Bioconcept BV implants: individually preparable, for single teeth (hex) or splinted temporaries (non-hex). Ideal for shaping the soft tissue already in the provisional phase.
RESTORATION
temporary
crown or bridge
CONNECTION
Hex · Non-Hex
single tooth · splinted
GINGIVAL HEIGHT
1.0 · 3.0 mm
depending on mucosa
PROCESSING
preparable
chairside or in the lab
CONTENTS
Abutment
incl. titanium screw
WHAT FOR
Aesthetics and soft tissue from the start
The temporary abutment is shortened and prepared as needed, and the acrylic temporary is made on it – chairside or in the lab. This gives an aesthetic restoration during healing and shapes the later emergence profile with the temporary. Loading of the temporary according to the clinical situation and primary stability.
ARTICLE NUMBERS
Available sizes
By platform, emergence profile (Ø of the abutment), connection and gingival height. Mini yellow, standard green. Please select in the selection field above.
Gingival heightabutment Ø · type Mini · emergence profile Ø 4.0 Standard · emergence profile Ø 4.5
Hex

Non-Hex

Hex

Non-Hex

1.0 mm 371010 371020 371050 371060
3.0 mm 371030 371040 371070 371080
PROCESSING
  • hex for single teeth, non-hex for splinted temporaries
  • prepare the abutment extraorally on the lab analog
  • protect the screw channel when bonding or relining
  • 1.2 mm hex, torque according to Bioconcept IFU
AFTER THE TEMPORARY
Transfer the shaped profile to the definitive restoration: prefabricated or custom.
Transfer Abutment →   BV-Link (CAD/CAM) →
Note: Medical device. Manufacturer Bioconcept. For temporary restorations only. Information according to the Bioconcept BV system catalogue; the current instructions for use (IFU) apply. BV Tapered catalogue (PDF)
