Neobiotech Lab Analog – IS-III Active

Neobiotech Lab Analog Narrow & Regular for IS Implants

€18,00 *

* Excl. tax Excl. Shipping costs

Neobiotech lab analog for IS implants: ISLA400 for narrow Ø 3.5 mm, ISLA500 for regular/wide Ø 4.0–5.5 mm. For master models at implant level. INNO compatible from Ø 4.0.

LAB · NEOBIOTECH IS

Neobiotech Lab Analog

Lab analogs (implant analogs) for Neobiotech IS implants. They reproduce the implant connection exactly in the master model – as the basis for abutments, bonding bases and crowns in the lab.

SYSTEM

Neobiotech IS

IS-II · IS-III active

NARROW

ISLA400

implant Ø 3.5

REGULAR

ISLA500

implant Ø 4.0 to 5.5

DIGITAL

SGISLA400 · 500

for printed models

MODEL

analog & digital

stone or print

LAB ANALOG

The implant connection in the model

After the open-tray impression, the lab analog is screwed onto the impression coping and embedded in the model material. This reproduces the exact position and connection of the implant in the mouth – the basis for precisely fitting abutments and crowns.

ORDER NUMBERS

Lab analog by platform

Select the variant in the drop-down above.

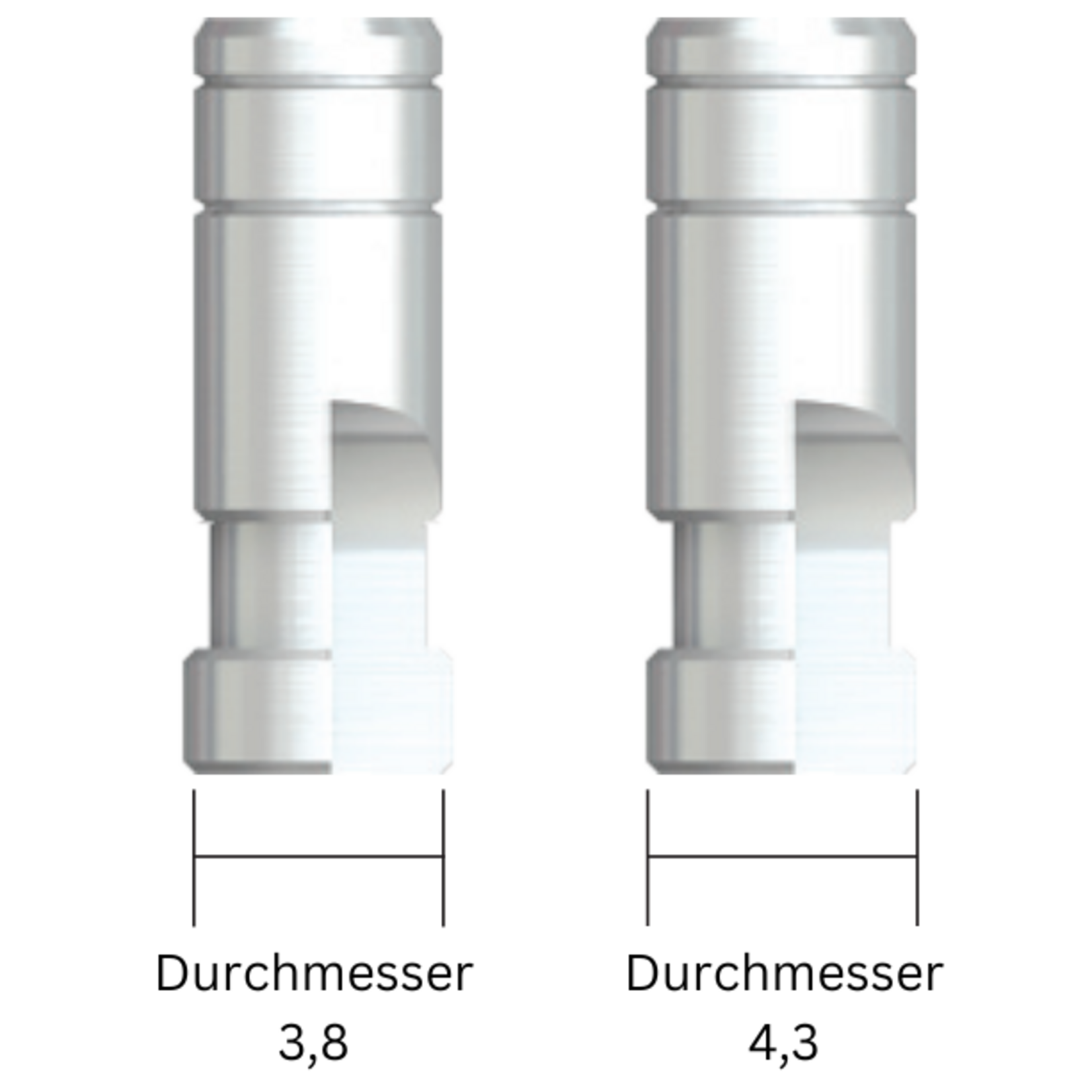

Platform	Implant Ø	Analog Ø	Order no.
Narrow	Ø 3.5 mm	Ø 3.8 mm	ISLA400
Regular / Wide	Ø 4.0 · 4.5 · 5.0 · 5.5 mm	Ø 4.3 mm	ISLA500
Digital lab analog narrow	Ø 3.5 mm	for printed models	SGISLA400
Digital lab analog regular	Ø 4.0 · 4.5 · 5.0 · 5.5 mm	for printed models	SGISLA500

ISLA400 fits narrow implants (Ø 3.5) only! For S-Narrow (Ø 3.2) on request: ISLA300.

DIGITAL WORKFLOW

Digital lab analog for printed models

For 3D-printed models, the digital lab analog SGISLA400 (narrow) or SGISLA500 (regular) is inserted into the prepared model socket instead of the conventional analog. Matching implant and analog libraries for CAD software are available in our download area.

To the libraries in the download area →

LAB TIPS

How to seat the analog correctly

Screw the analog completely and tension-free onto the impression coping before pouring.
Check for a firm seat – a rotated or loose analog transfers errors to the model.
For gingiva masks, first inject gingiva material around the analog, then pour the stone.
Insert the digital analog fully and check its seat in the model.

COMPATIBLE WITH COWELLMEDI

From implant Ø 4.0 mm: INNO standard lab analogs too

Neobiotech IS implants from Ø 4.0 mm have the same prosthetic platform as Cowellmedi INNO standard. This means you can also use the INNO standard lab analogs.

INNO lab analogs & screws →

Compatibility information provided by ImplAg. Does not apply to Neobiotech implants below Ø 4.0 mm. Please check implant type and platform before restoration.

Matching products: Neobiotech open tray impression coping → · Neobiotech bonding base → · NeoBiotech IS-III Active →

Note: Lab analogs are intended for laboratory use only and not for intraoral use.
