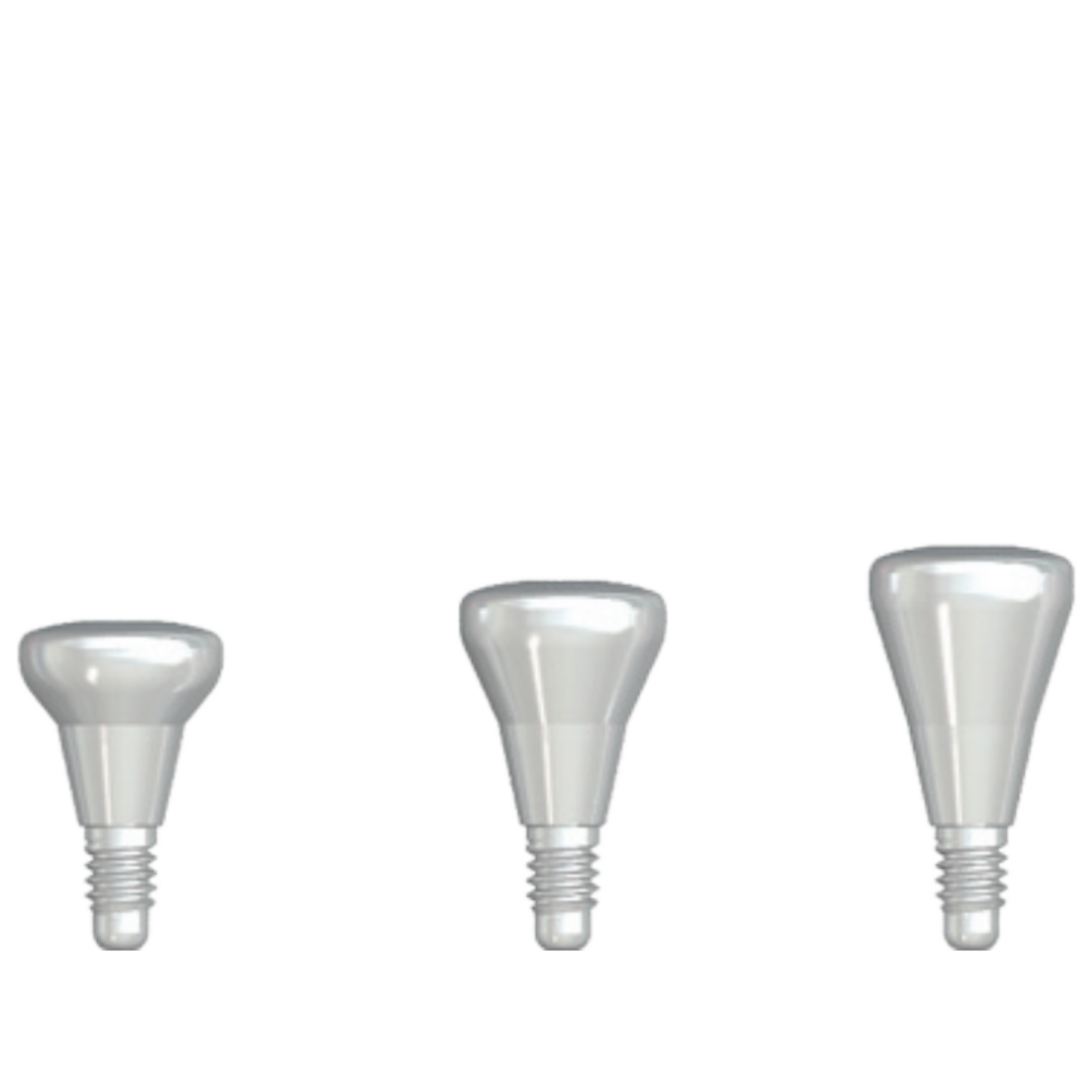

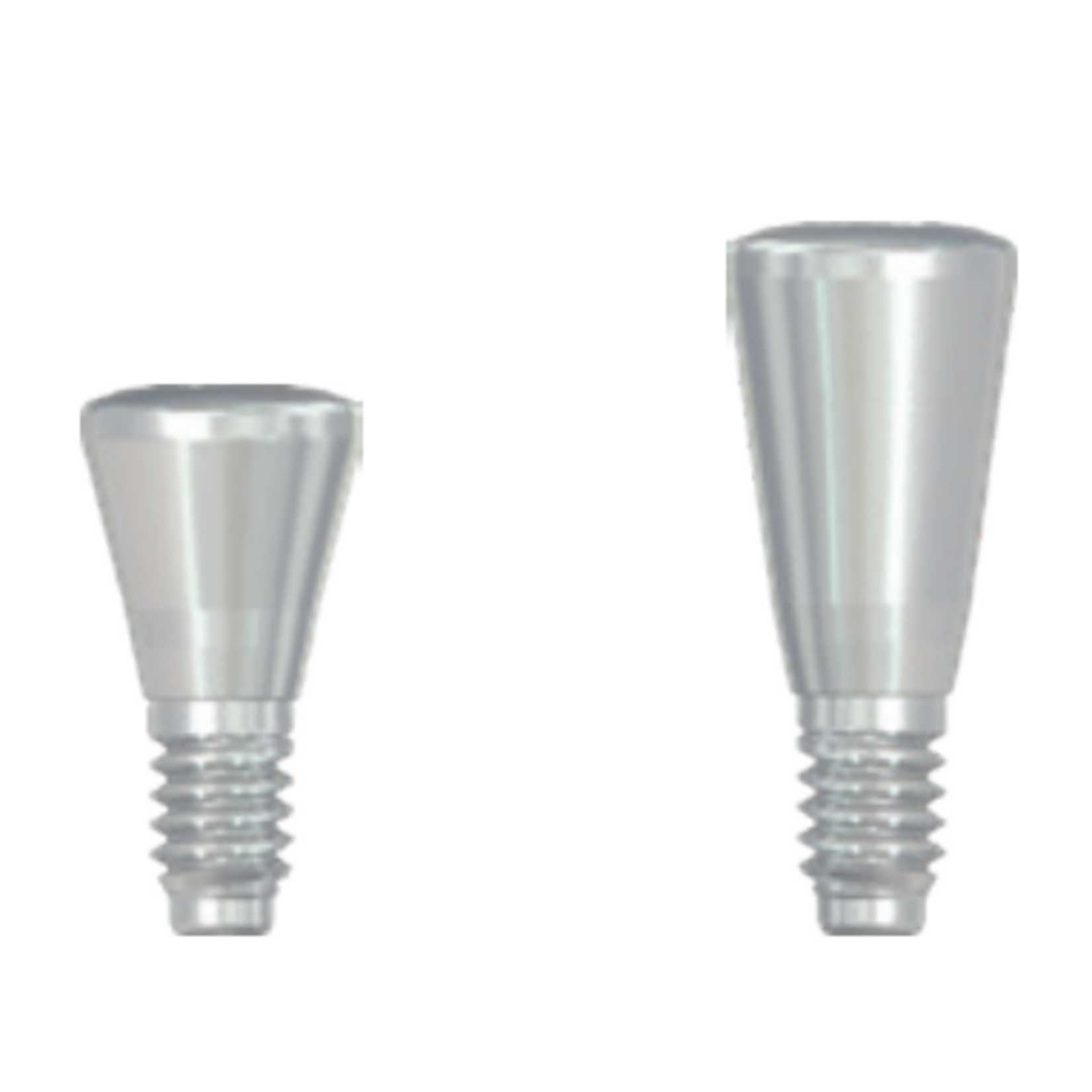

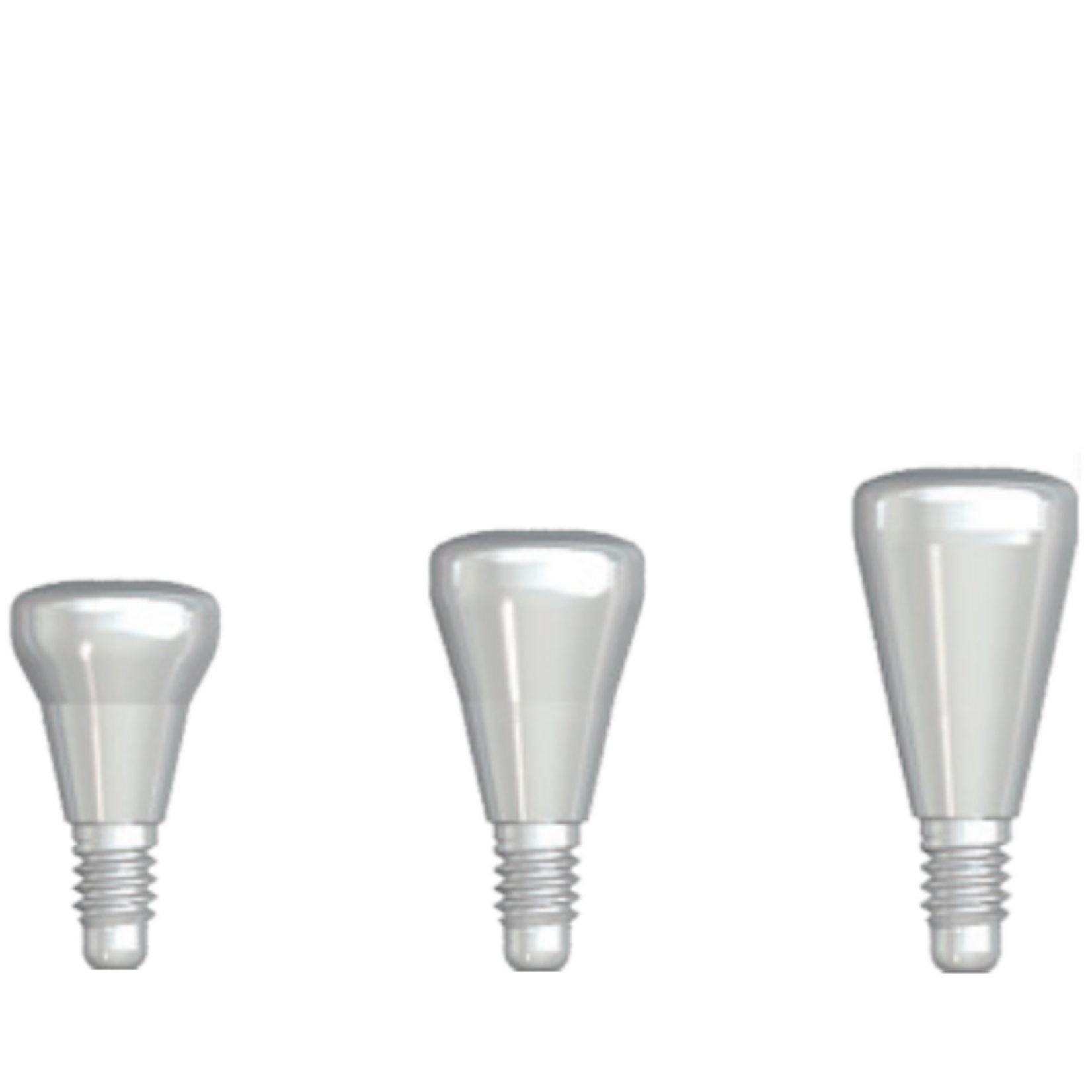

Neobiotech Healing Abutment

Healing abutments for Neobiotech IS implants. During healing they shape a clean soft-tissue profile and prepare the emergence of the future crown. With 1.2 mm hex, inserted hand-tight.

HEALING ABUTMENT

Soft tissue shapes the future crown emergence

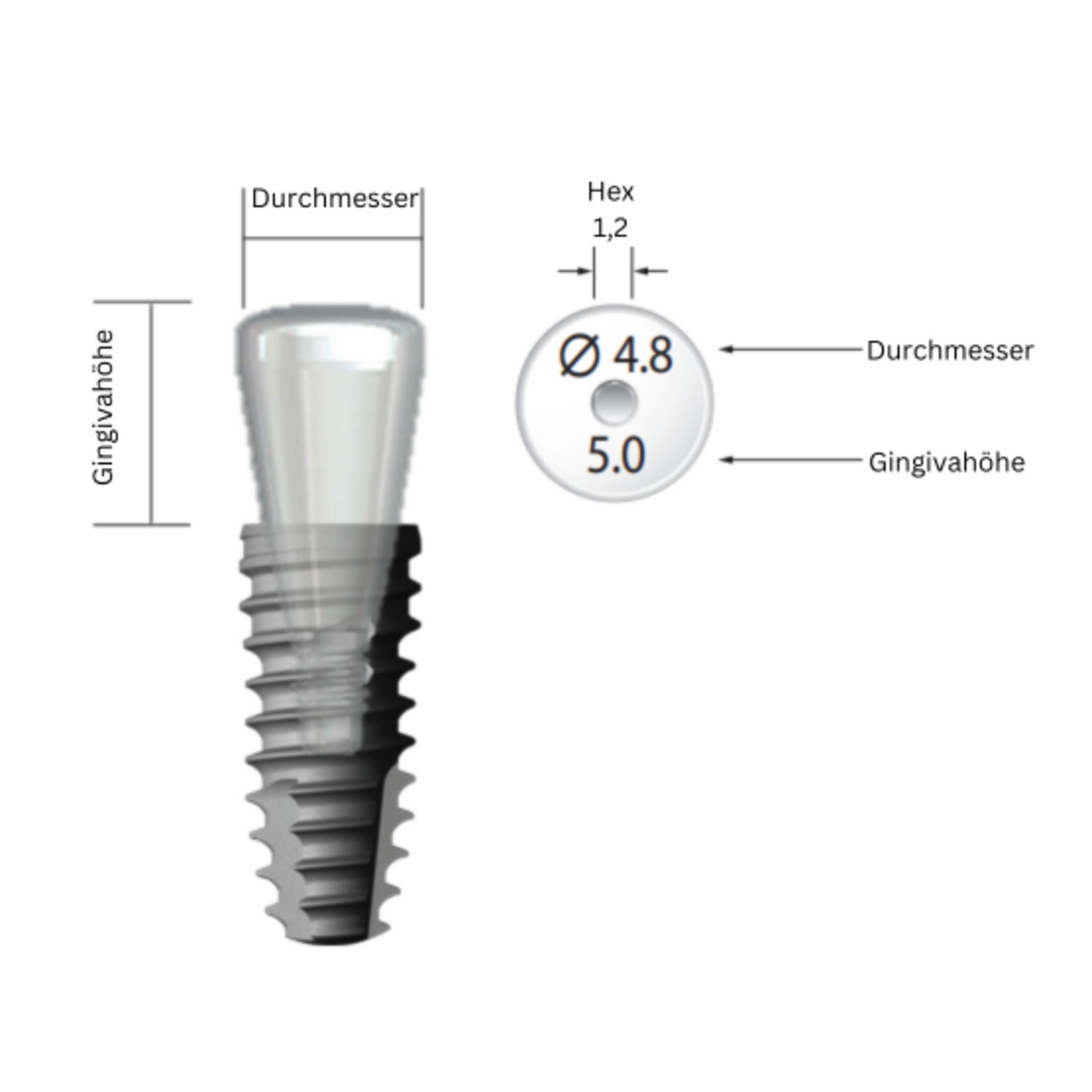

After uncovering or with transgingival healing, the healing abutment replaces the cover screw. It keeps the mucosa open and shapes an emergence profile that matches the later abutment. Diameter and height determine how wide and how deep the soft tissue is shaped.

ORDER NUMBERS

Healing abutments by diameter and cuff height

Select the variant in the drop-down above.

Cuff	Ø 3.8 S-Narrow	Ø 4.8	Ø 5.5
2.0 mm	–	ISH402	ISH502
3.0 mm	ISH3803	ISH403	ISH503
4.0 mm	–	ISH404	ISH504
5.0 mm	ISH3805	ISH405*	ISH505*

* on request. Ø 3.8 fits S-Narrow implants (Ø 3.2) only! Cuff height = height from the implant shoulder according to the Neobiotech catalogue.

SELECTION

How to choose the right healing abutment



FURTHER SIZES

From the Neobiotech range on request

For every situation we also supply:

Diameter	Cuff heights	Order no.
Ø 3.0 (S-Narrow only)	3 · 5 mm	ISH3003 · ISH3005
Ø 4.0	2 to 6 mm	ISUH4002 – ISUH4006
Ø 4.5	2 to 6 mm	ISUH4502 – ISUH4506
Ø 4.8 · Ø 5.5	up to 7 mm	ISH405 – ISH407 · ISH505 – ISH507
Ø 6.0	2 to 7 mm	ISH602 – ISH607
Ø 6.8	2 to 7 mm	ISH702 – ISH707
Ø 8.0 · Ø 9.0	2 to 4 mm	ISH802 – ISH804 · ISH902 – ISH904

Delivery time on request.

COMPATIBLE WITH COWELLMEDI

From implant Ø 4.0 mm: INNO standard prosthetics too

Neobiotech IS implants from Ø 4.0 mm have the same prosthetic platform as Cowellmedi INNO standard. This means the INNO standard healing abutments (2HS…) and the other INNO standard prosthetics also fit.

Hybrid Ti-base →  ·  Cemented abutment →  ·  Neobiotech bonding base →

Compatibility information provided by ImplAg. Does not apply to Neobiotech implants below Ø 4.0 mm. Please check implant type and platform before restoration.
