Neobiotech Angled Abutment 15°

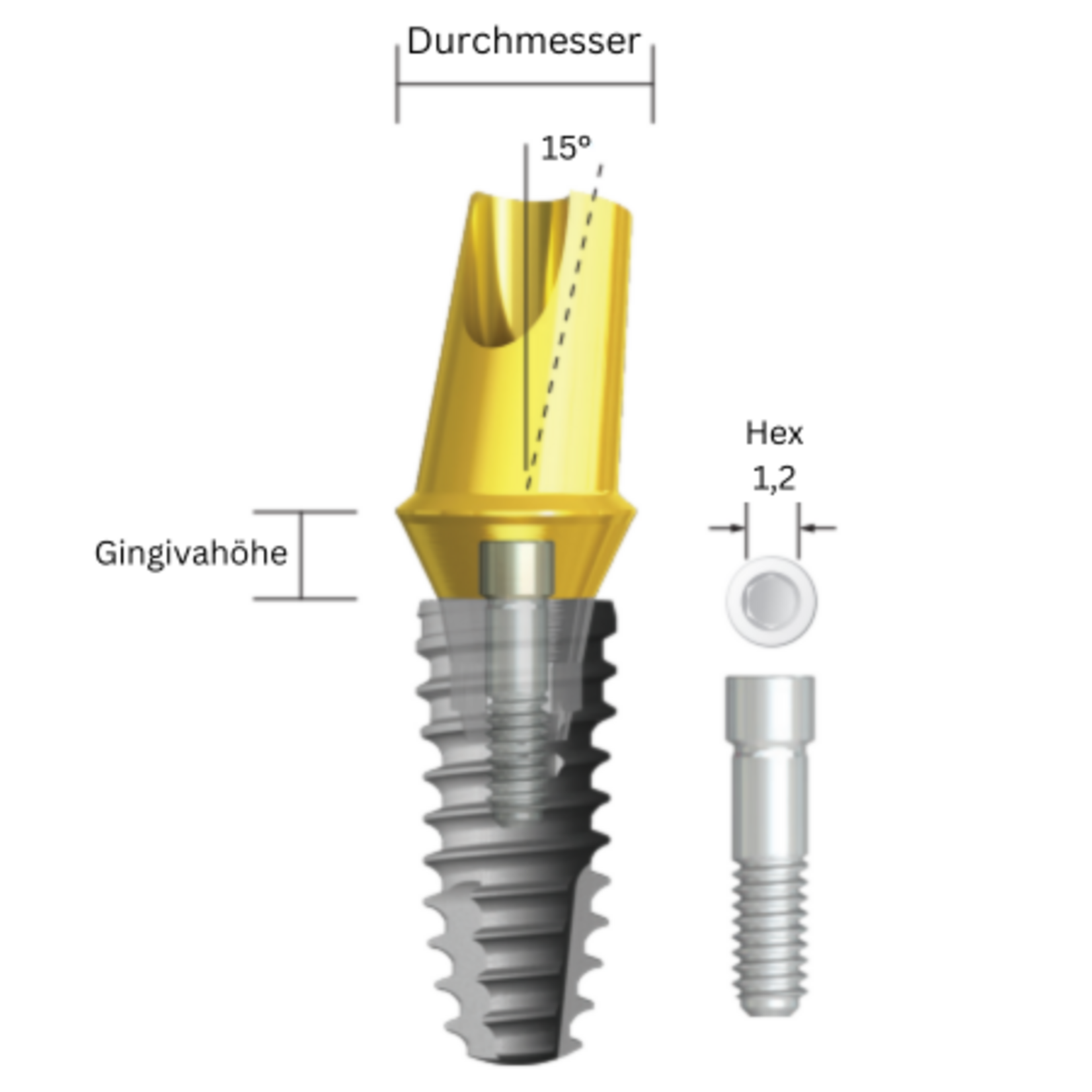

Angled abutments for Neobiotech IS implants. They compensate for an implant axis deviation of 15° so the crown sits in the correct axis. Positionable in twelve directions as type A and type B, plus a non-hex version for bridges. With abutment screw.

ANGLED ABUTMENT

When the implant is not in the crown axis

In the posterior region, in the atrophic jaw or with deliberately tilted implants, the implant axis often differs from the ideal crown axis. The angled abutment realigns the post by 15°, allowing a crown with correct axis and even layer thickness. The abutment can be prepared individually.

TYPE A, TYPE B OR NON-HEX

Where does the angle point?

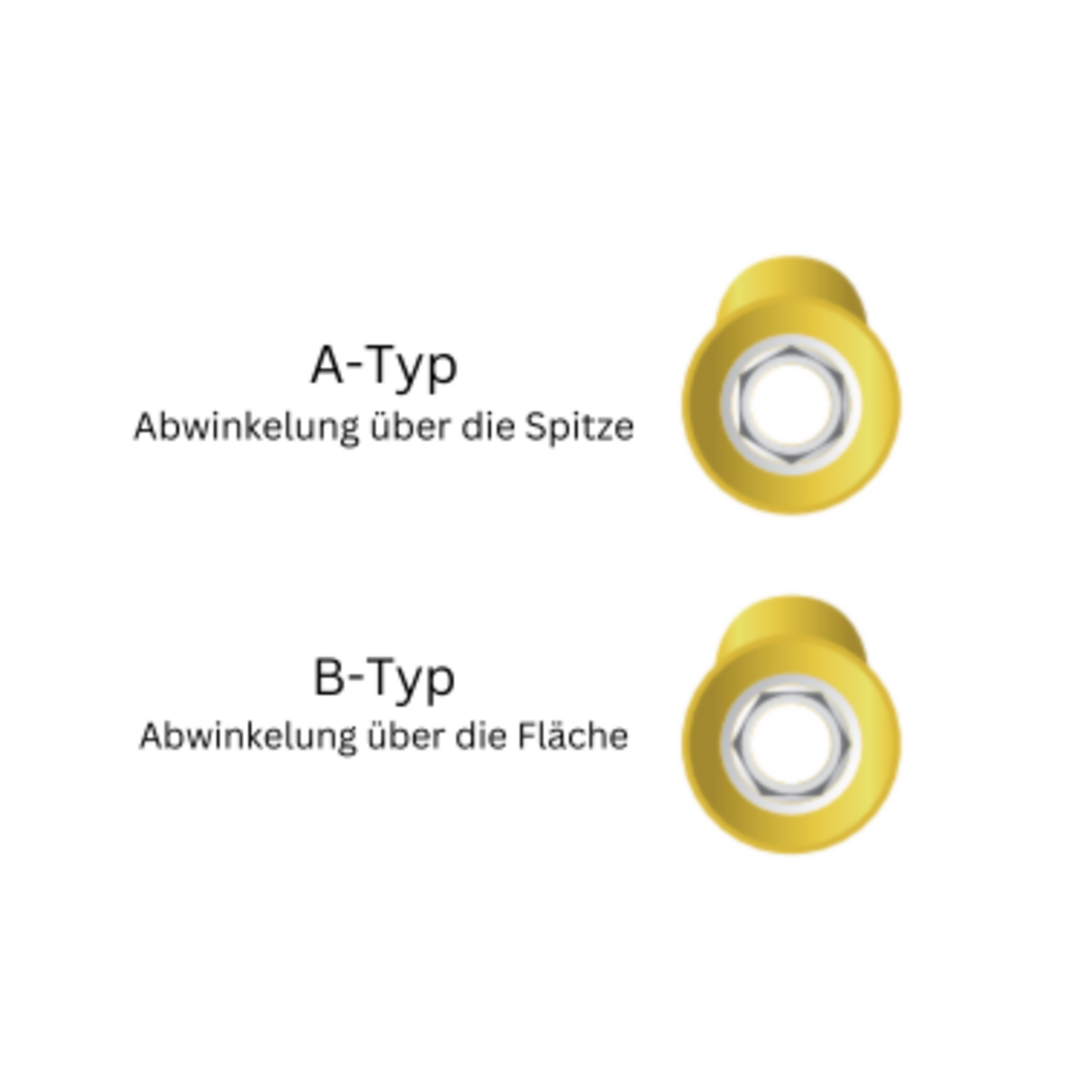

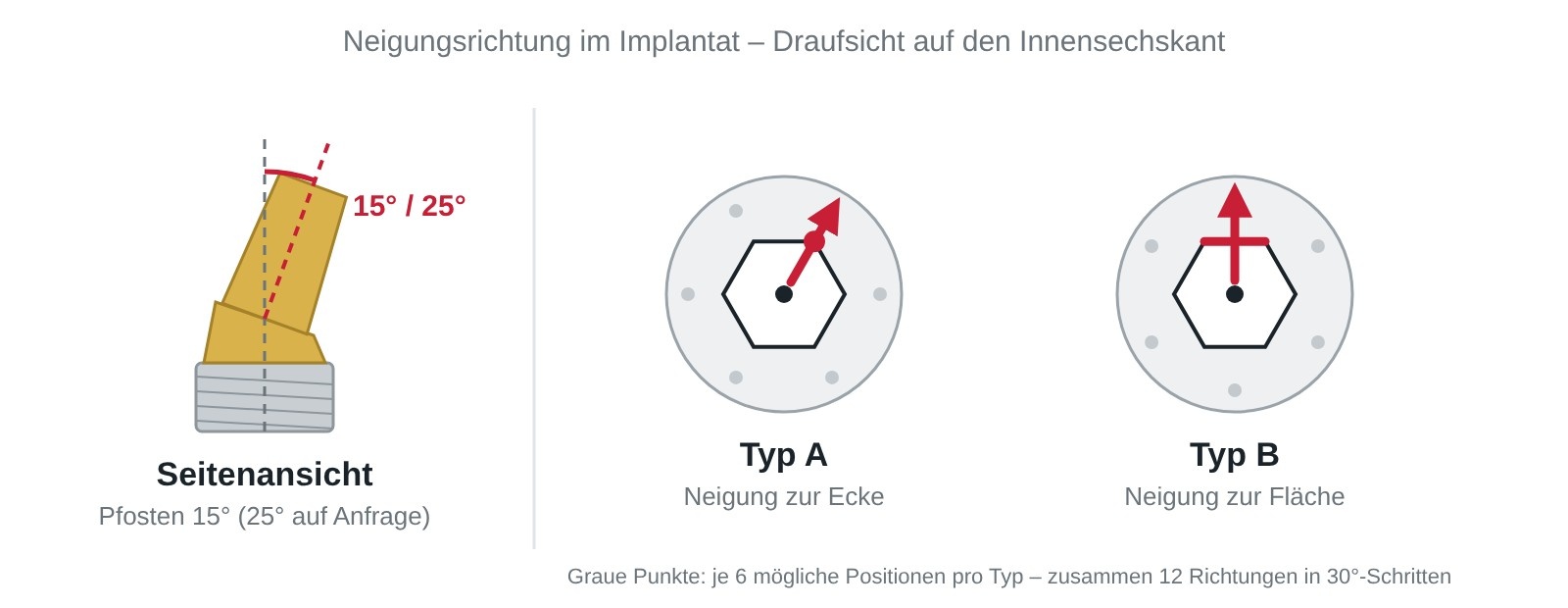

With the two hex types, the angulation can be set in twelve directions – in 30° steps around the implant.

Which type fits depends on the hex orientation of the placed implant – best checked on the model with a lab analog.

ORDER NUMBERS

Angled abutments 15°

Select the variant in the drop-down above.

Diameter	Gingival height	Type A	Type B	Non-hex
Ø 4.5	2.0 mm	ISAHA1427	ISAHB1427	ISANA1427
Ø 4.5	3.0 mm	ISAHA1437	ISAHB1437	ISANA1437
Ø 4.5	4.0 mm	ISAHA1447	ISAHB1447	ISANA1447
Ø 5.2	2.0 mm	ISAHA1527	ISAHB1527	ISANA1527
Ø 5.2	3.0 mm	ISAHA1537	ISAHB1537	ISANA1537
Ø 5.2	4.0 mm	ISAHA1547	ISAHB1547	ISANA1547
Ø 5.7	2.0 mm	ISAHA1627	ISAHB1627	ISANA1627
Ø 5.7	3.0 mm	ISAHA1637	ISAHB1637	ISANA1637
Ø 5.7	4.0 mm	ISAHA1647	ISAHB1647	ISANA1647

Abutment screw ISCS20 included. Fits all IS implants except S-Narrow (Ø 3.2).

FURTHER VERSIONS

From the Neobiotech range on request

For special situations we also supply:

Version	Use	Order no.
25° type A · type B · non-hex	for greater angulation, Ø 4.5 to 5.7	ISAHA2… · ISAHB2… · ISANA2…
17° S-Narrow type A · type B	S-Narrow (Ø 3.2) only, screw ISCS16S	ISAHA1739 · ISAHB1739

Delivery time on request.

WORKFLOW

From tilted implant to straight crown

1. Open-tray impression with Neobiotech impression copings or digitally with scan body.
2. On the model, choose type A, type B or non-hex with the best orientation, prepare if needed.
3. Remove the healing abutment, insert the abutment in the planned position and tighten to 30 Ncm.
4. Seal the screw channel, cement the crown and remove all excess cement.

COMPATIBLE WITH COWELLMEDI

From implant Ø 4.0 mm: INNO abutments too

Neobiotech IS implants from Ø 4.0 mm have the same prosthetic platform as Cowellmedi INNO standard. This gives you access to the INNO angled abutments with 15° and 25° as well.

INNO angled abutment →  ·  INNO multi abutment →

Compatibility information provided by ImplAg. Does not apply to Neobiotech implants below Ø 4.0 mm. Please check implant type and platform before restoration.
