PROSTHETICS · NEOBIOTECH IS

Neobiotech Bonding Base & CAD/CAM Titanium

Titanium bases and blanks for custom CAD/CAM restorations on Neobiotech IS implants: Ti-Link as a bonding base for zirconia and hybrid crowns, Ti-Cylinder as a tall titanium cylinder, and Ti-Block as a pre-milled blank for custom-milled titanium abutments. With matching intraoral scan body for the digital workflow.

WHICH SOLUTION?

Three routes to a custom restoration

All three parts have the original Neobiotech implant connection – the lab only designs the superstructure.

COMPATIBLE WITH COWELLMEDI

From implant Ø 4.0 mm: INNO standard prosthetics can be used

Neobiotech IS implants from Ø 4.0 mm have the same prosthetic platform as Cowellmedi INNO standard. This gives you access to the standard abutments of the INNO range as well – from the cemented abutment and the angled abutment to the hybrid Ti-base and the multi abutment.

Hybrid Ti-base →  ·  Cemented abutment →  ·  Angled abutment →  ·  Multi abutment →

Compatibility information provided by ImplAg. Does not apply to Neobiotech implants below Ø 4.0 mm. Please check implant type and platform before restoration.

ORDER NUMBERS

Variants at a glance

Select the variant in the drop-down above.

Item	Diameter	Height	Order no.

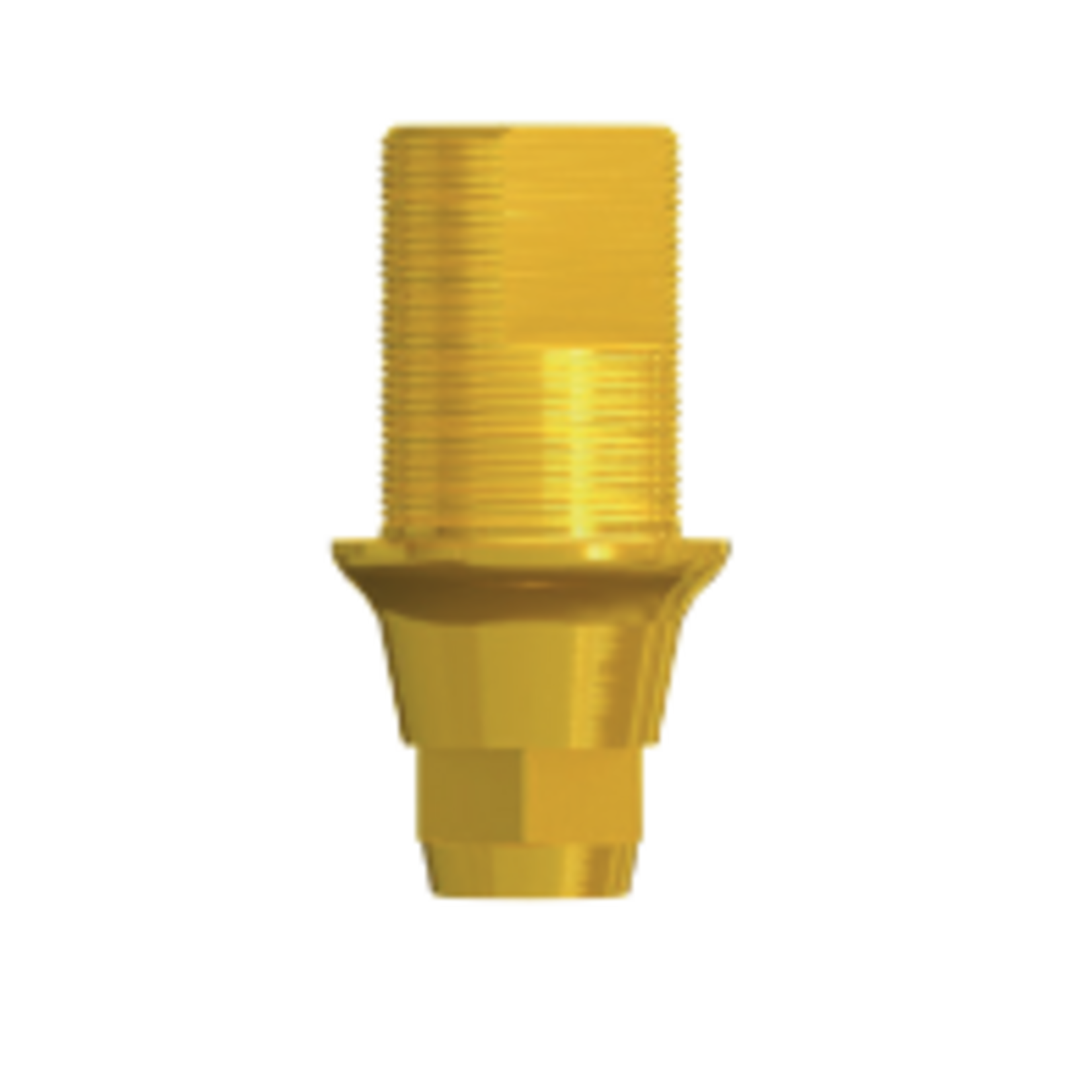

Ti-Link (bonding base)	Ø 4.5 mm	3.5 mm	ISLKH4535NB

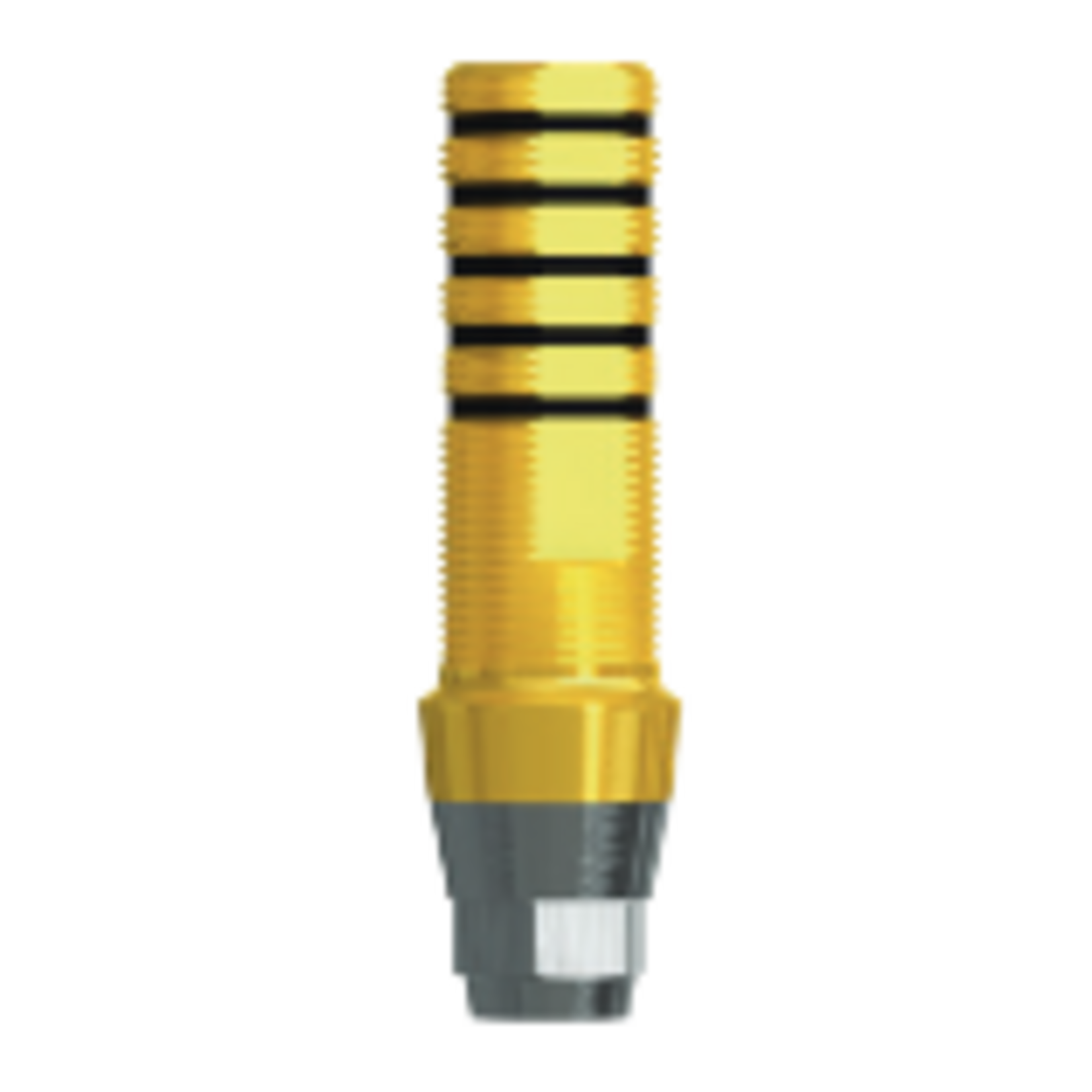

Ti-Cylinder	Ø 4.5 mm	9.0 mm	ISTCAH4509

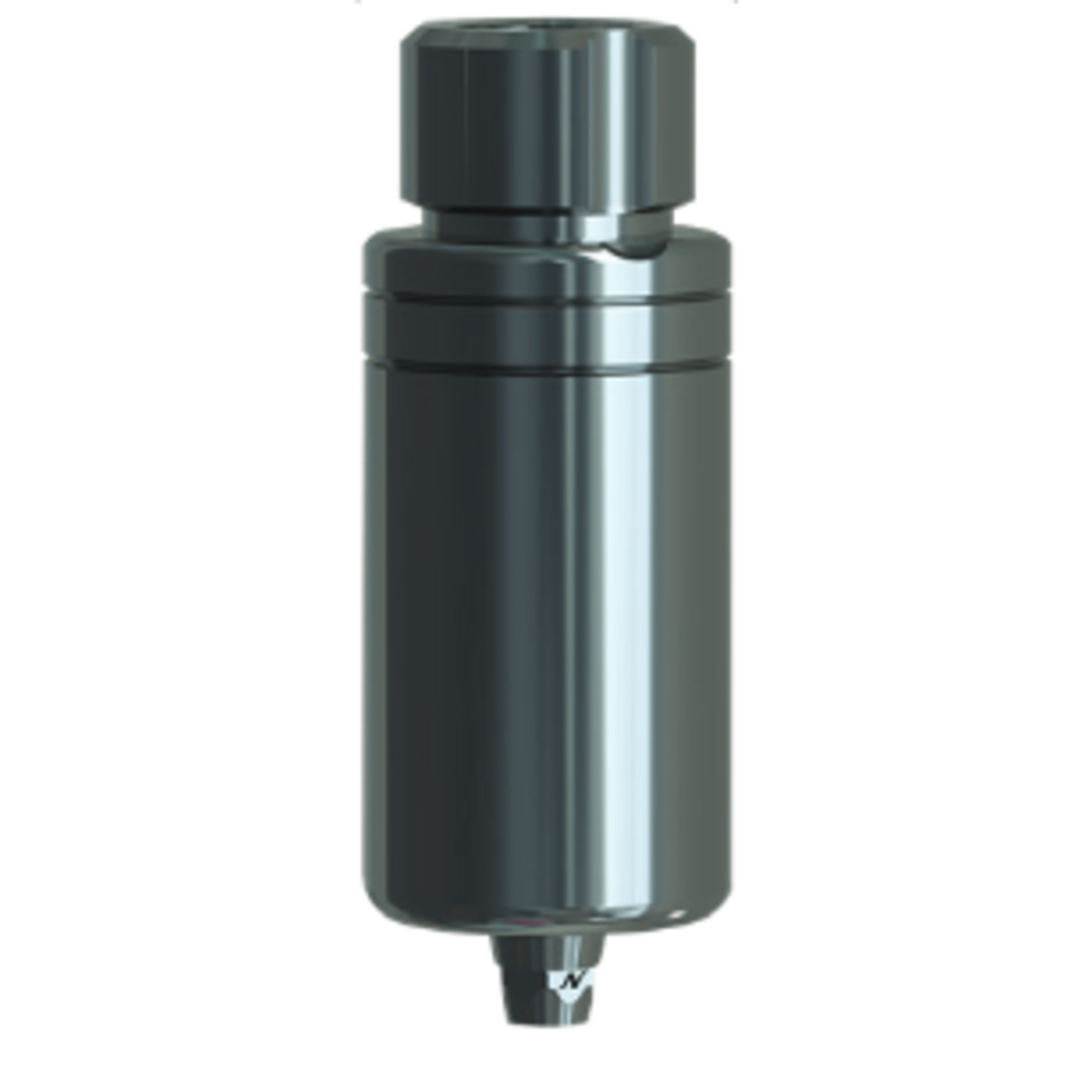

Ti-Block, pre-milled	Ø 10 mm	–	ISBKH10NBD
Intraoral scan body	–	–	Oral Scanbody

Abutment screw ISCS20 included with Ti-Block. Further diameters, gingival heights and non-hex versions on request.

BONDING – DONE RIGHT

The bond determines durability

The bonding surface of the titanium base and the inside of the crown are sandblasted and bonded with a suitable luting composite. Protect the screw channel, remove excess before curing and polish the joint carefully – this creates a smooth, cleansable emergence. Follow the cement manufacturer's instructions.

WORKFLOW

Digitally to the bonded crown

1. Intraoral scan with scan body or model scan with lab analog.
2. Design in CAD software with the Neobiotech library, mill or press the crown.
3. Bond the crown onto Ti-Link or Ti-Cylinder in the lab, polish the bonding joint.
4. Insert, tighten the abutment screw as specified by the manufacturer, seal the screw channel.
